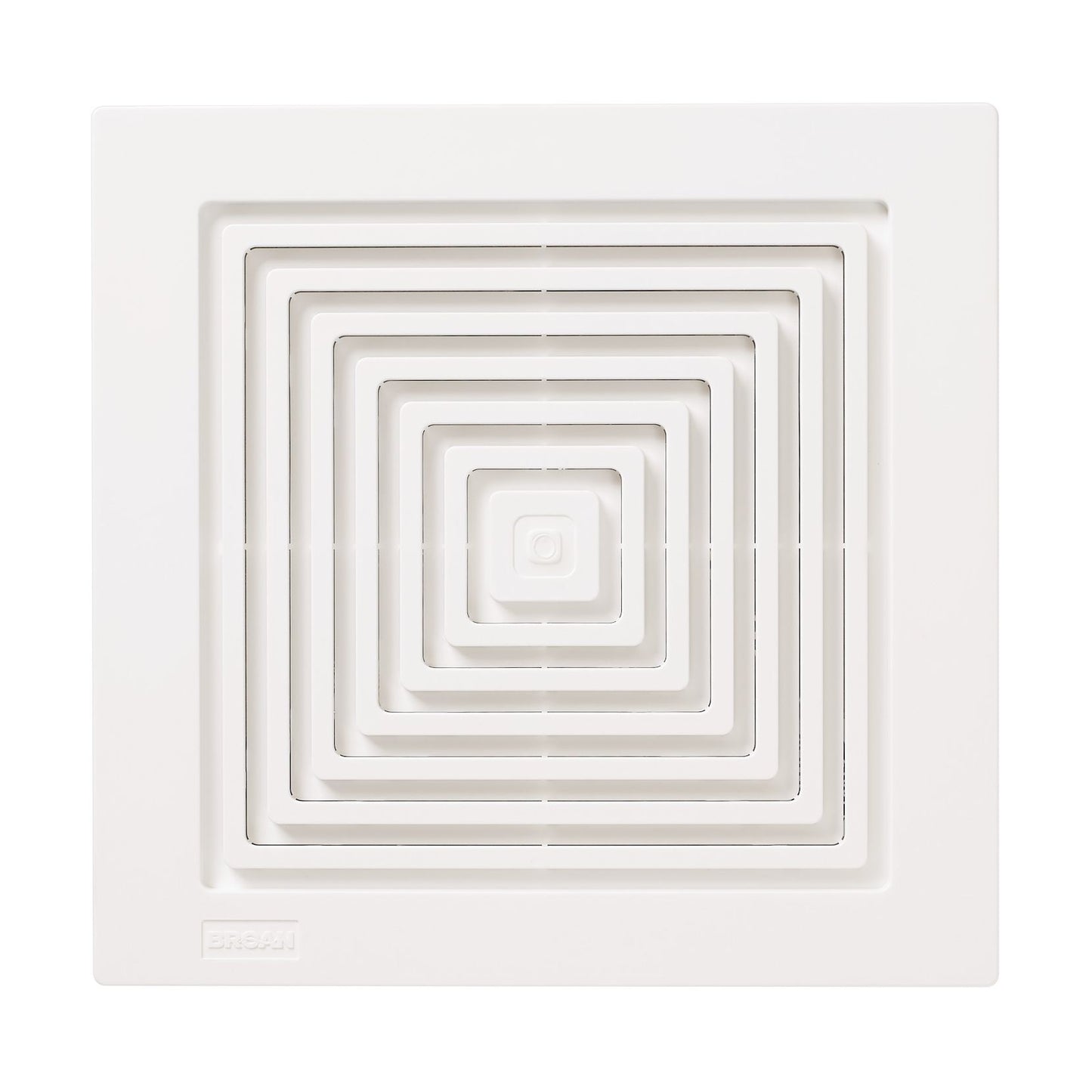

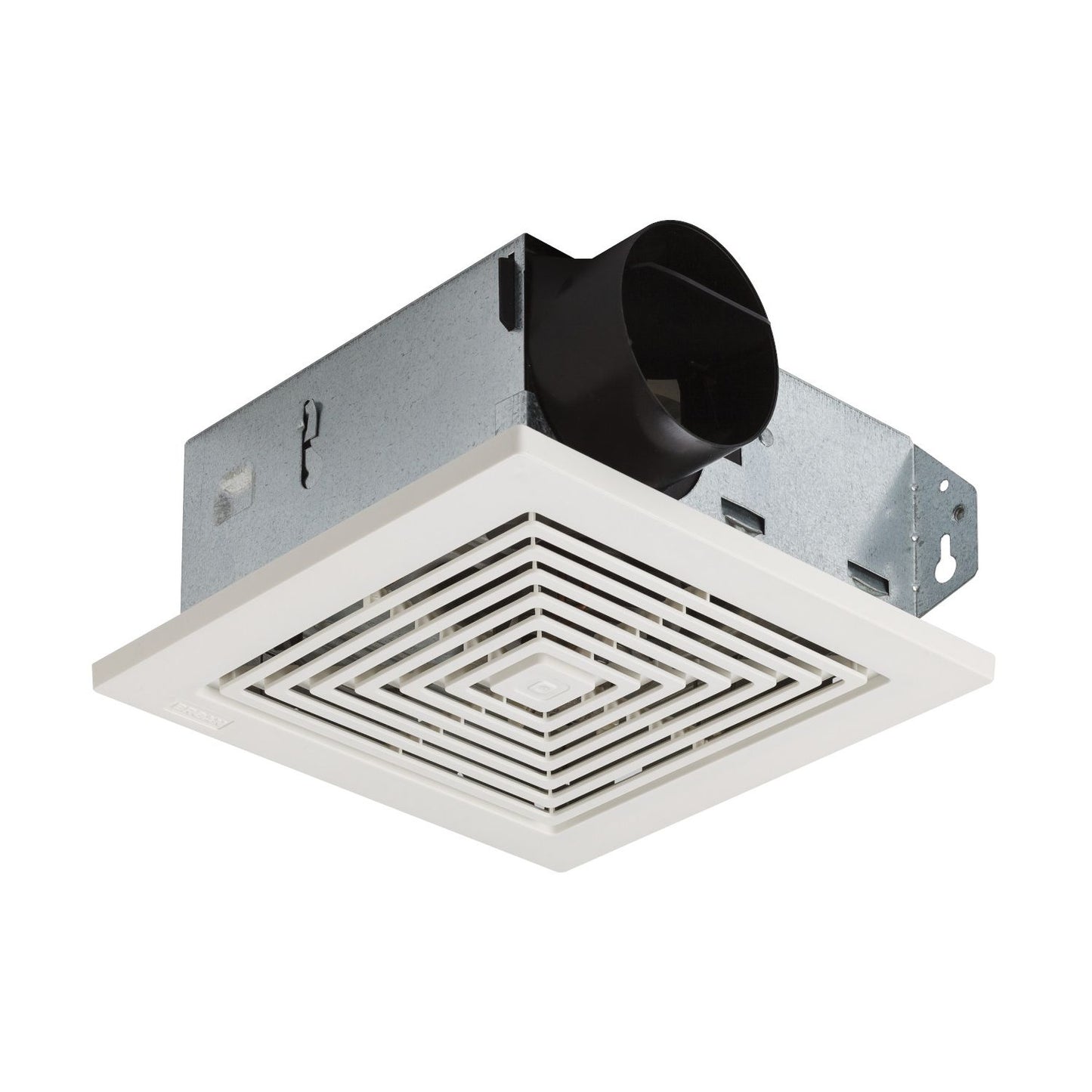

Broan 688 - Ceiling / Wall Ventilation Fan - 4.0 Sones - 50 CFM
Broan Standard Economy Series fans are versatile, compact, and economical ventilation solutions. With a galvanized steel housing and double strength mounting flanges, the economy fan offers powerful ventilation, that helps ventilate air to prevent mold and mildew. Also including a removable motor assembly and plug-in permanently lubricated motor for ease of service and cleaning.
Features
- 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 audible sones for privacy while using your bathroom.
- Compact housing for versatile installation
- Powerful enough for rooms up to 45 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Double strength mounting flanges with keyhole slots
- Quiet polymeric damper prevents cold backdrafts with no metallic clatter
- No electrical knockout to remove
- Removable wiring cover – make connections away from tight corners
- U.L. listed for tub or shower enclosure with GFCI branch wiring
Specifications
- CFM: 50
- Color Finish:
- Duct Size: 3"
- ENERGY STAR certified: No

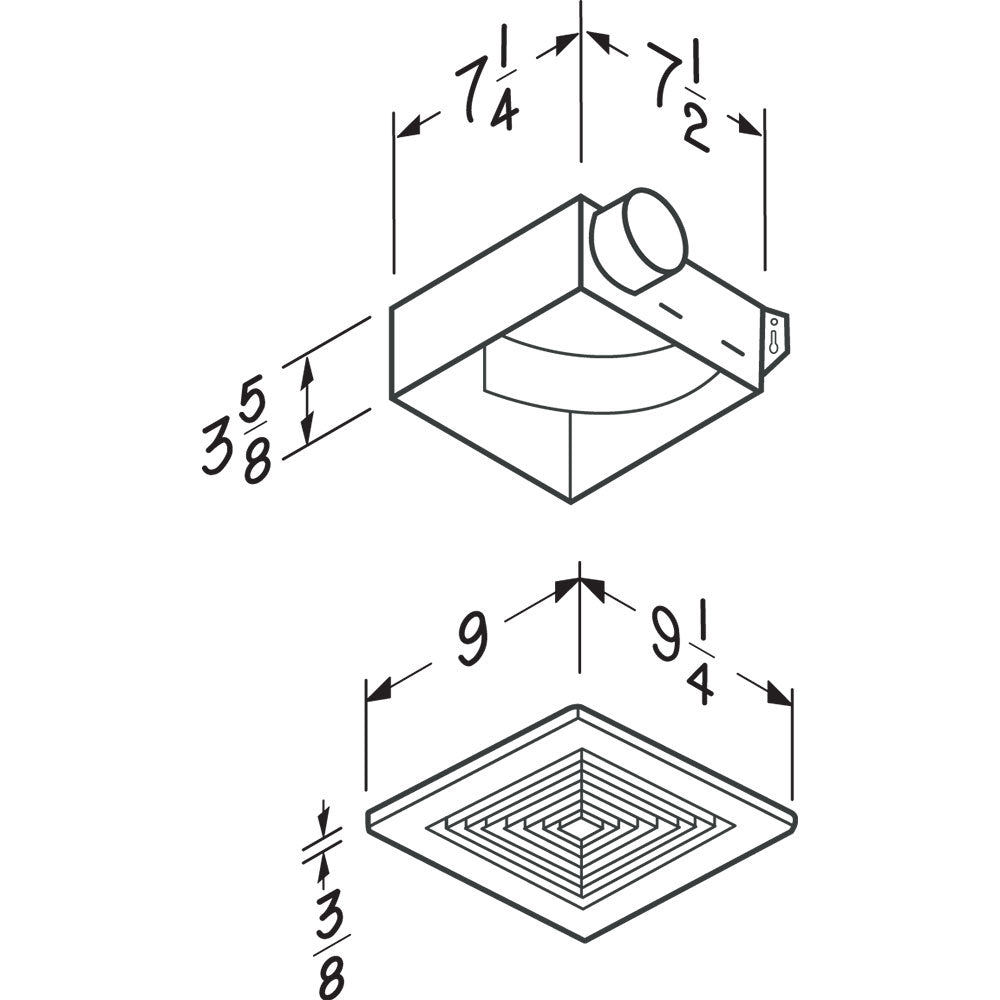

- Grille Dimensions: 9" x 9-1/4"
- Housing Dimensions: 7-1/4" x 7-1/2" x 3-5/8"
- Sound Level (Sones): 4
- UL Listed: Yes
- Grille Finish: White
- Motor Engineered For Continuous Operation: No
- UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
- Recommended Room Size: 45 sq ft
- Rated Amps: 0.9
- Voltage: 120
- Manufacturer Warranty: 1 Year
