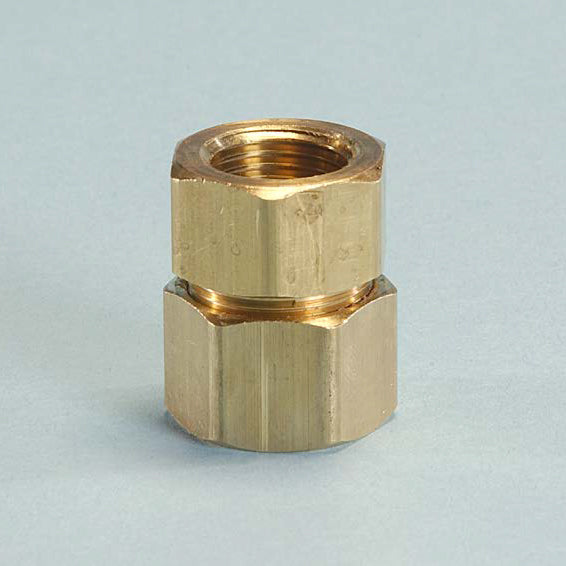

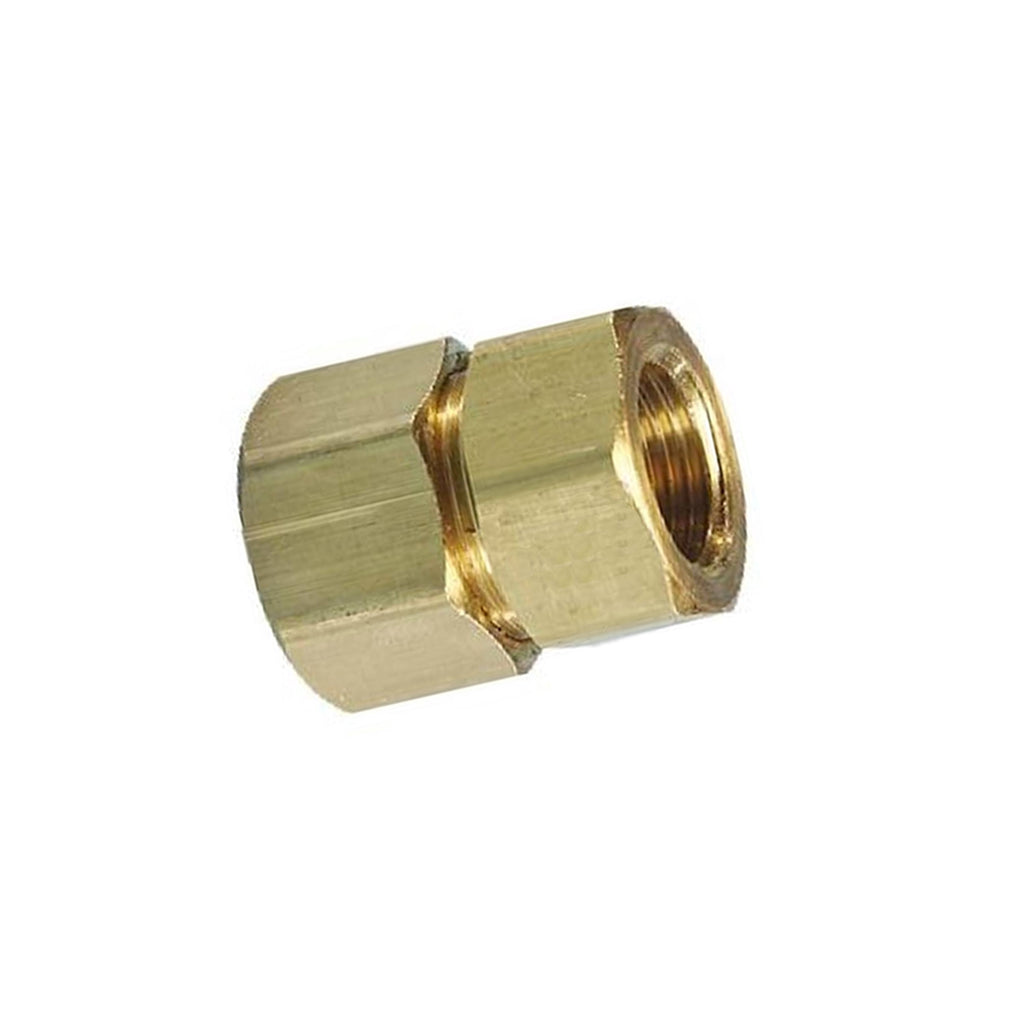

FGP-FSTF-500 - AutoFlare Straight Fitting Adapter - 1/2" FNPT
No reviews
In stock
Regular price
$20.59
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Submittal SheetTracPipe CounterStrike FGP-FSTF-500 - AutoFlare Straight Fitting Adapter - 1/2" FNPT
Transition fitting between TracPipe or CounterStrike Tubing and NPT thread. Fitting thread is Female NPT. For use indoor, outdoor, and concealed location applications.
Features
- Materials:
- Nut, Adapter and Split Rings: Yellow Brass
- Insert and 1" Split Rings: Stainless Steel
- Specification Operating Pressure: 25 PSIG
- Max Operating Pressure: 125 PSIG
- Operating Temperature Range: -20 to 200 degrees F
- Codes: ICC Codes (IFGC, IRC, IMC, IPC), NFPA 54, UPC, CAN/CSA B149.1, NFPA 58
- Standards: ANSI LC1 / CSA 6.26 ANSI Z223.1
- Listings: CSA, ICC PMG 1046 / 1058, IAPMO (UPC) File No. 3682 / ES ER-0227
- TracPipe or CounterStrike Size: 1/2"
- Diameter Across Flats: 1-1/8"
- Fitting Length: 1-1/2"
- Weight: 0.3 lbs
PTRAC10599
