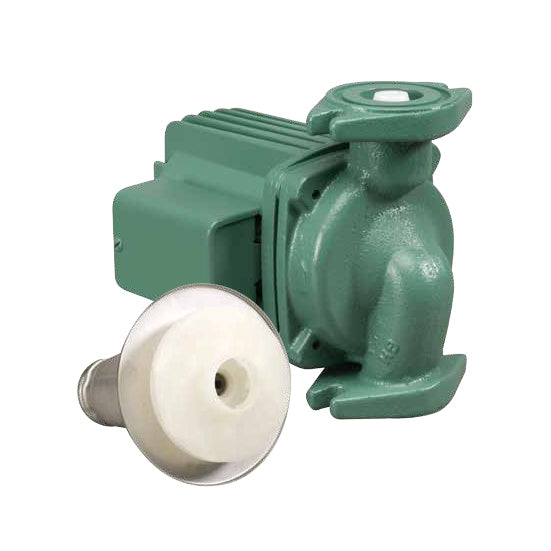

Taco 0011-F4-2IFC - Cartridge Circulator - Cast Iron, Flanged, Integral Flow Check, 1/8 HP
Taco 0011-F4-2IFC - Cartridge Circulator - Cast Iron, Flanged, Integral Flow Check, 1/8 HP
No reviews
In stock
Regular price
$532.76
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Taco 0011-IFC Instruction Sheet
0011 Cast Iron Circulator with Integral Flow Check, 1/8 HP
Taco’s High Velocity Series 0010 Cartridge Circulator is designed for quiet, efficient operation in a wide range of residential and light commercial, medium-head/medium-flow water circulating applications.
- Available in cast iron or stainless steel construction—Stainless steel is designed for all open-loop fresh water systems.
- Unique, “00” family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
- Compact, direct-drive, low-power consumption design is ideal for high efficiency jobs.
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Unique Replaceable Cartridge Design – Field Serviceable
- Direct Drive-Low Power Consumption
- Self-Lubricating
- No Mechanical Seal
- Unmatched Reliability --Maintenance Free
- Universal Flange-to-Flange Dimensions
- Cast Iron or Stainless Steel Construction
Typical Applications
- Hydronic Heating
- Radiant Heating
- Primary-Secondary Loops
- Indirect Water Heaters
- Chilled Water Cooling
- Potable Hot Water Systems
Performance Data
- Max. Flow: 30 GPM
- Max. Head: 31 Feet
- Min. Fluid Temperature: 40˚F (4˚C)
- Max. Fluid Temperature: 230°F (110˚C)
- Max. Working Pressure: 150 psi
- Connection Sizes: 3/4”, 1”, 1-1/4”, 1-1/2” Flange
