Using the pump with my electric tankless water heater for on demand hot water at my bathroom. Had to set the pump on the high setting to get enough gpm at the water heater to initiate the heating cycle. It requires .7 gpm to start up. But the pump works as intended.
I used a temperature sensor valve under my bathroom sink which may have restricted the water flow rate, thus requiring the higher pump setting.

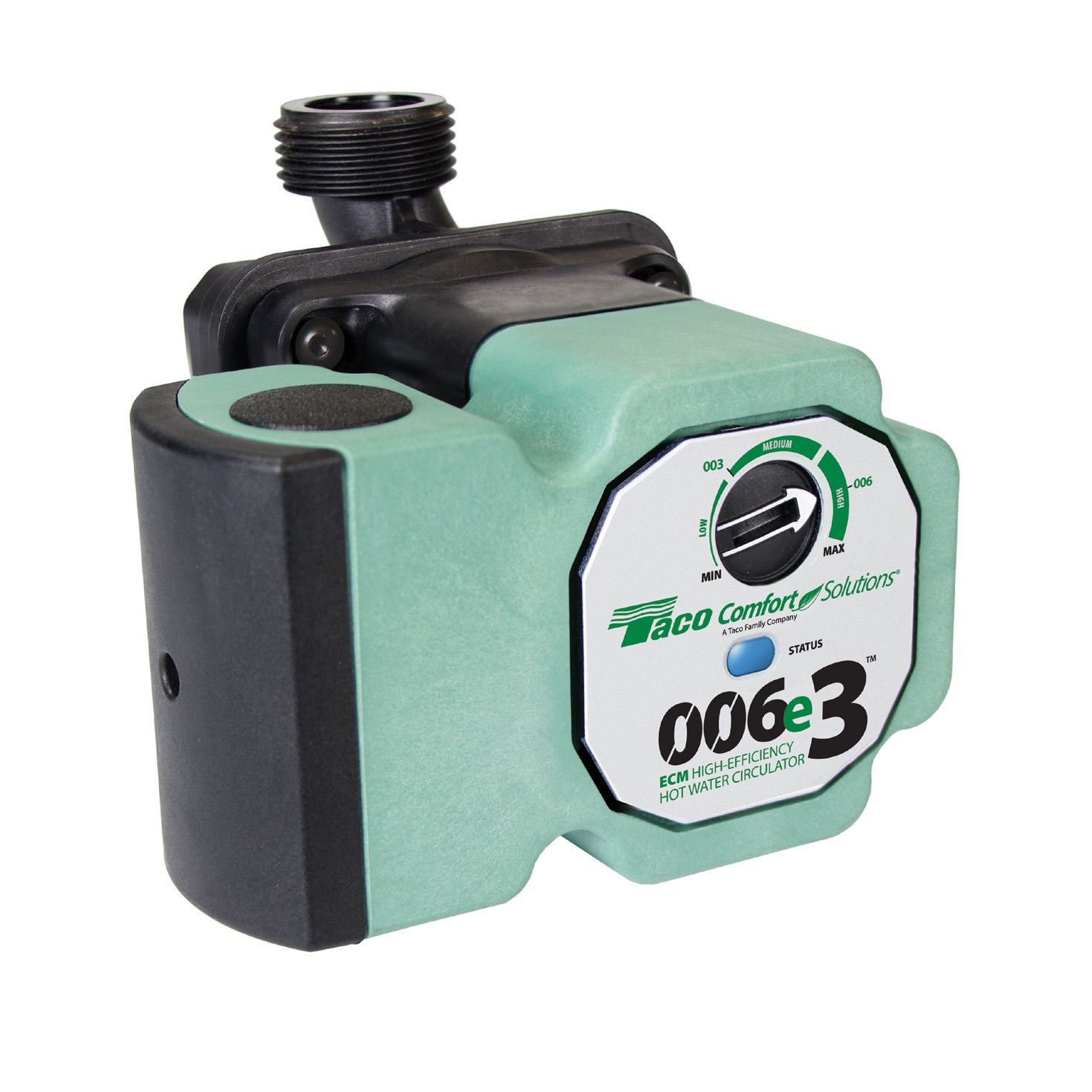

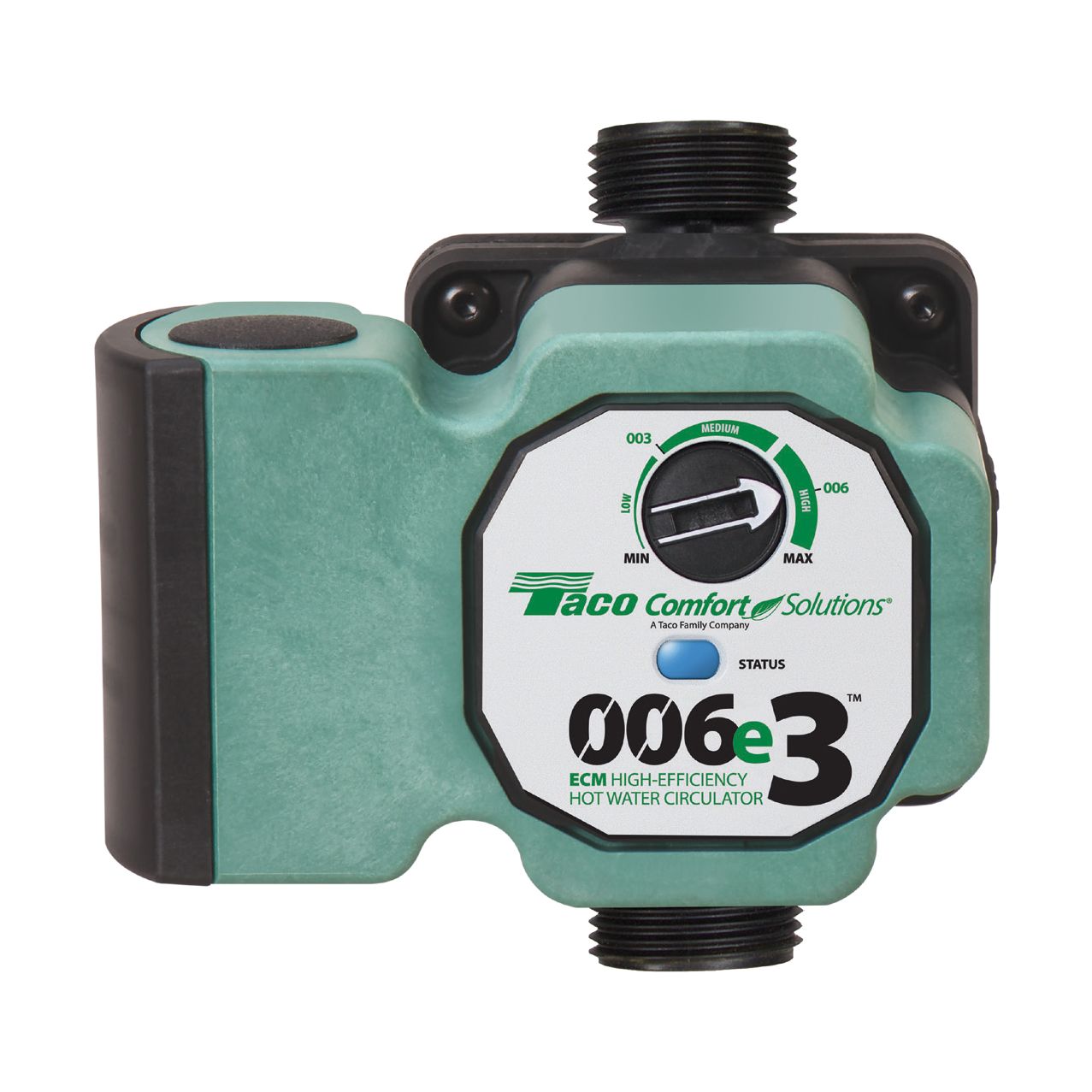

Taco 006e3 ECM High-Efficiency Hot Water Circulation Pump w/ 6 ft. Cord
The 00e Series — 006e3 is an infinitely variable fixed speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It is perfect for hot water recirculation and hydronic heating applications. With 3 easy settings, the 006e3 delivers performance, reliability and ease of installation that made the 00 famous.
- Taco trusted 00e Series quality and reliability – Install it, forget it.
- Easy to use dial:
- Low, Medium, High
- 006 & 006 Performance point references
- Easy installation:
- Compact design for tight spaces
- Multiple connection options available
- High-efficiency ECM motor uses up to 85% less electricity
- SureStart is your no-callback safety net, automatically purging air and unblocking the pump to keep it trouble-free. No one else has this feature!
Unmatched customer service & technical support
Applications

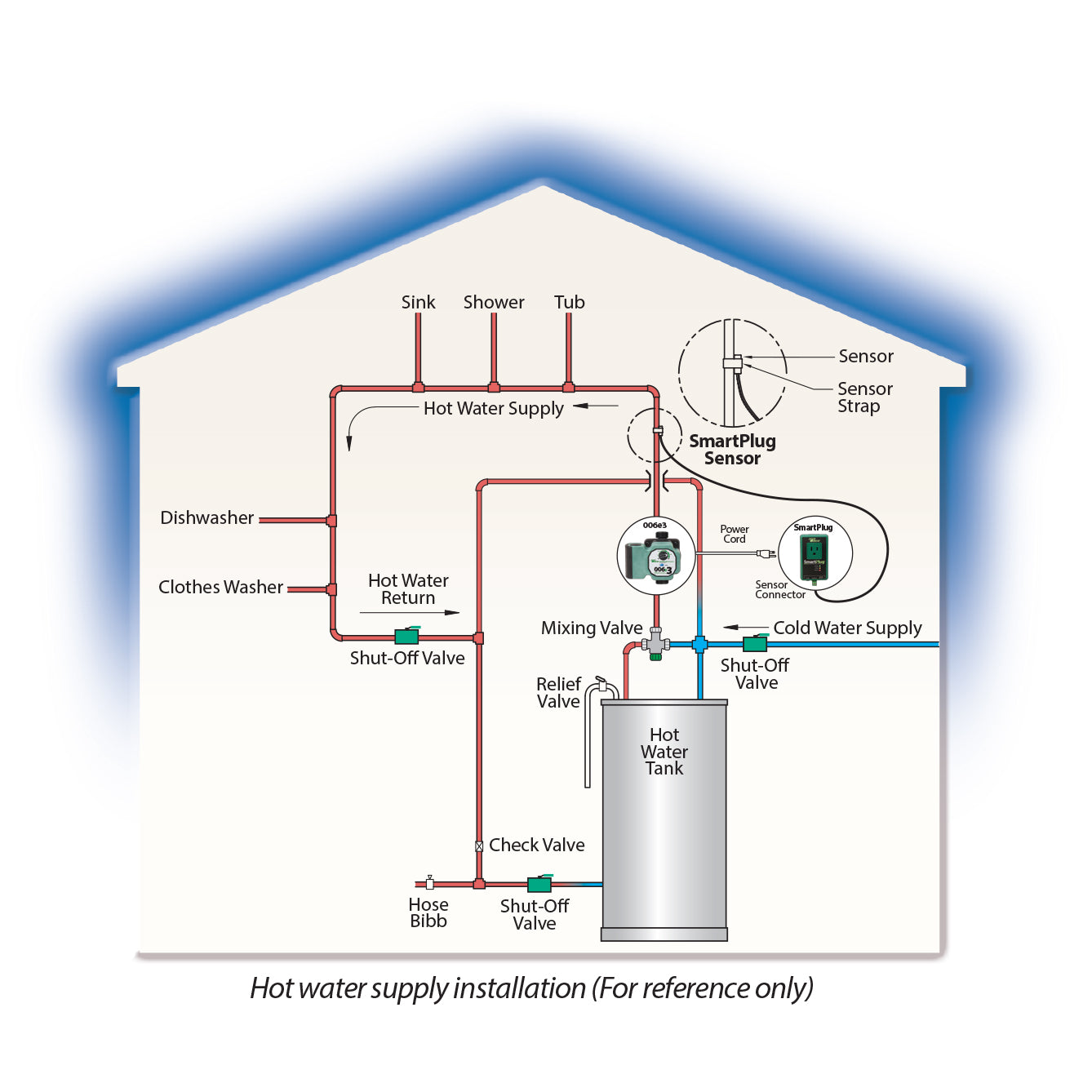

The 006e3 is a high-efficiency wet rotor circulator with an ECM permanent magnet motor. It is designed for use in open loop domestic hot water recirculation or closed hydronic systems. A simple 3-setting speed dial allows you to match circulator performance to system requirements. The 006e3LC model includes a 6’ power cord.
- GPM: 11
- Head (ft): 13
- Max. Watts: 44

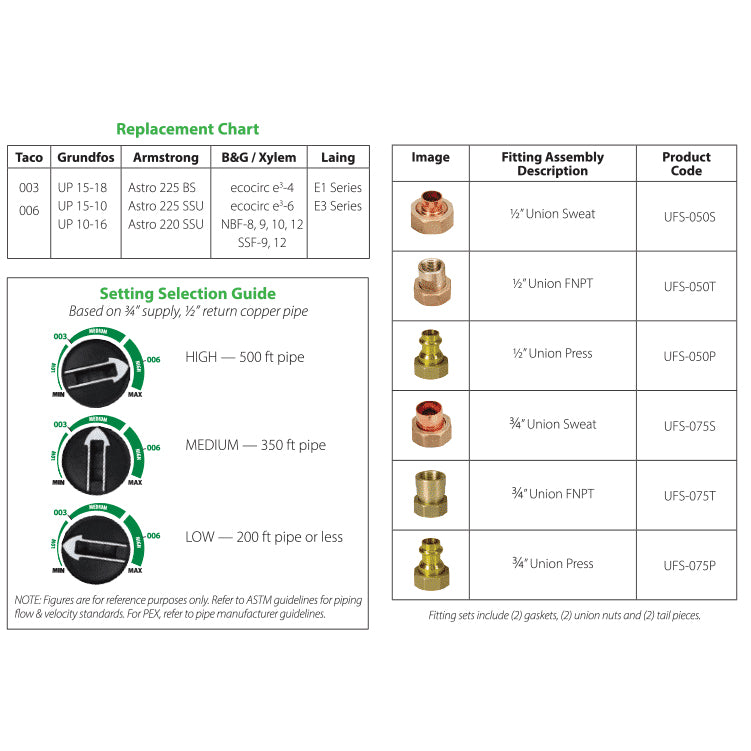

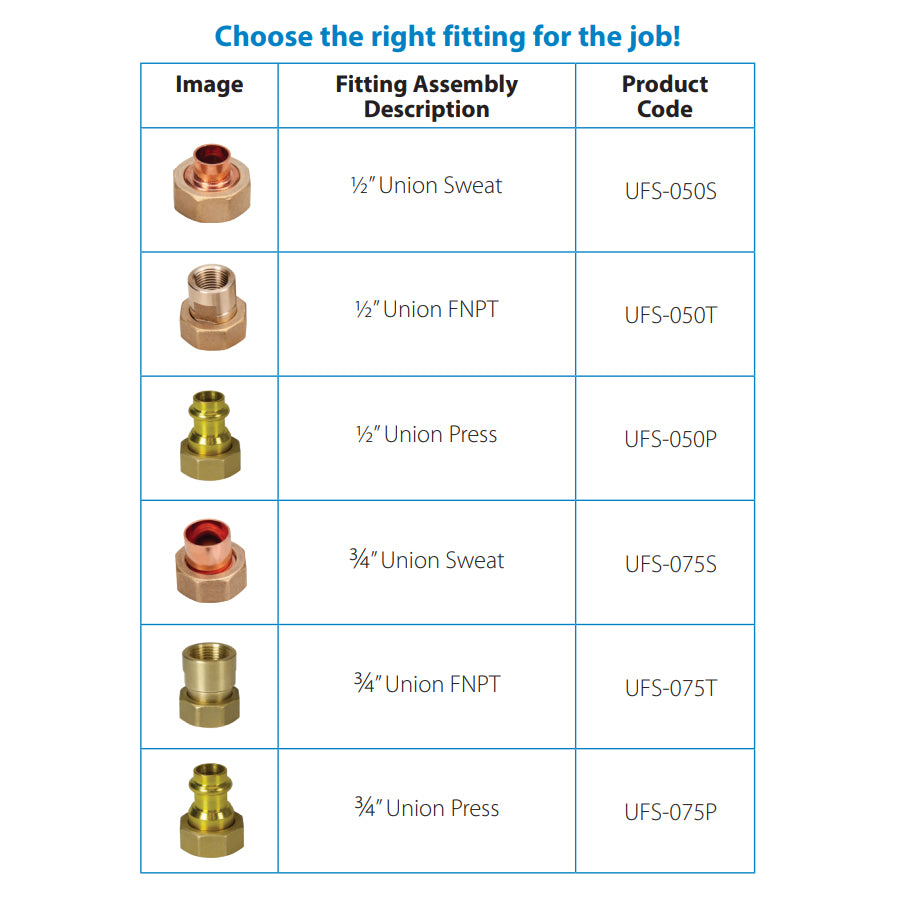

- Sizes (Fittings sold separately)
- UFS-050S - 1/2" Union Sweat
- UFS-050T - 1/2" Union FNPT
- UFS-050P - 1/2" Union Press
- UFS-075S - 3/4" Union Sweat
- UFS-075T - 3/4" Union FNPT
- UFS-075P - 3/4" Union Press
