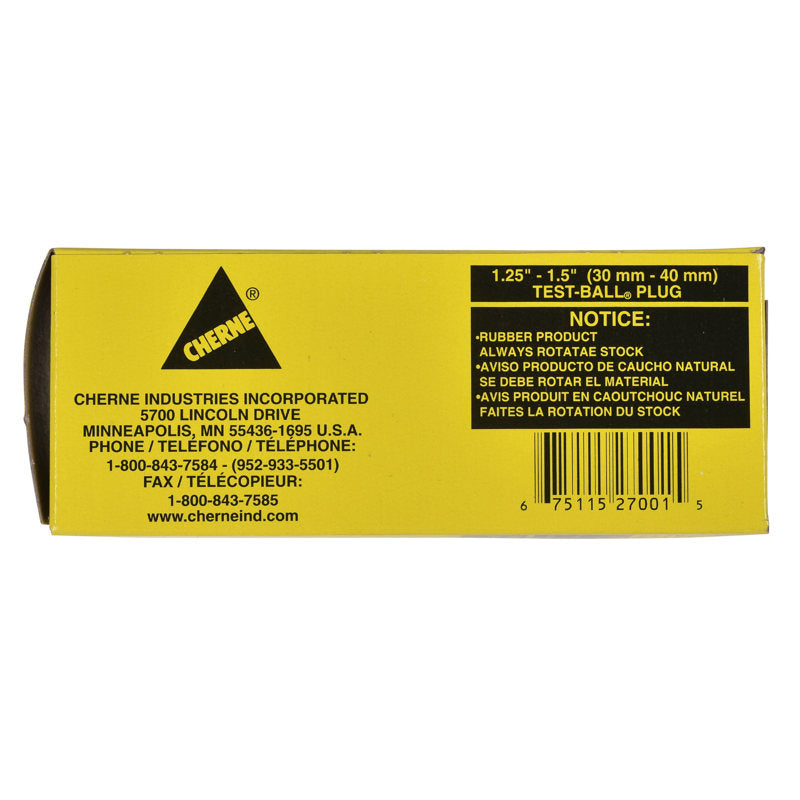

Oatey 270016 - Cherne Single-Size Plumbing Test-Ball Plug - 1-1/4" - 1-1/2"

Cherne Single-Size Test-Ball Plugs are expandable rubber test plugs designed to test drain, vent and waste systems in every type of pipe. Utilizing a standard tire air fitting for easy connections, its inflatable design can be inserted through a test tee to seal out-of-round pipe and hard-to-access openings. These plumbing test plugs are available in a variety of nominal sizes to accommodate your DWV testing needs. Cherne Industries is a global leader in pipe plug, blocking and testing.

Features

• Single-Size Test-Ball Plugs are designed to test drain, vent and waste systems in every type of pipe
• Natural rubber body provides excellent expansion and a great seal in round and out-of-round pipe

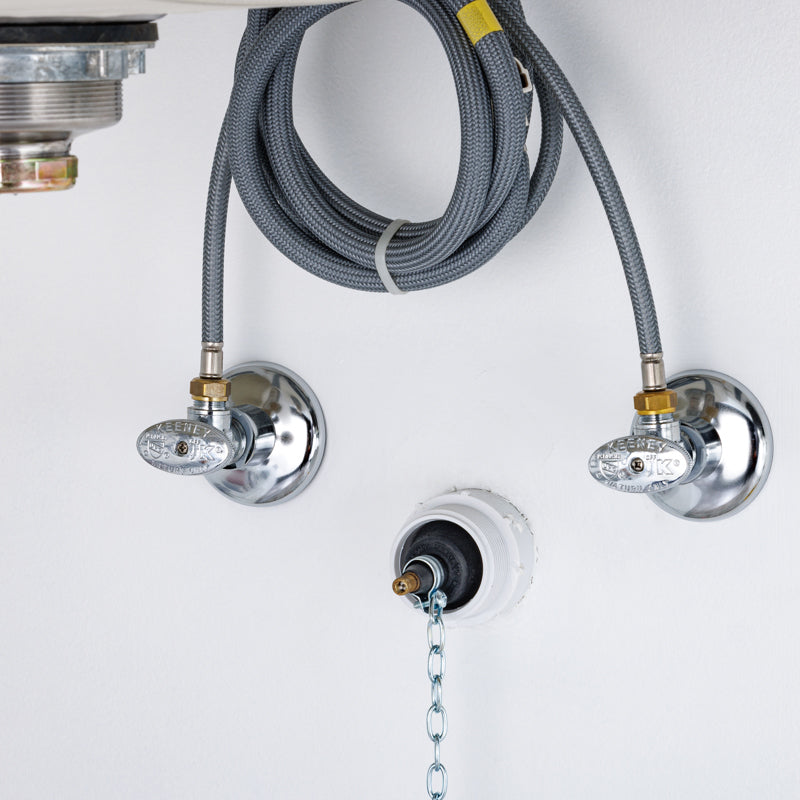

• Inflatable design can fit through test tees, sanitary tees, floor drains and other hard to access pipe openings
• Ideal for testing DWV plumbing systems at pressures up to 13 psi or with 30 ft of head pressure
• Utilizes a standard tire air fitting for easy connections

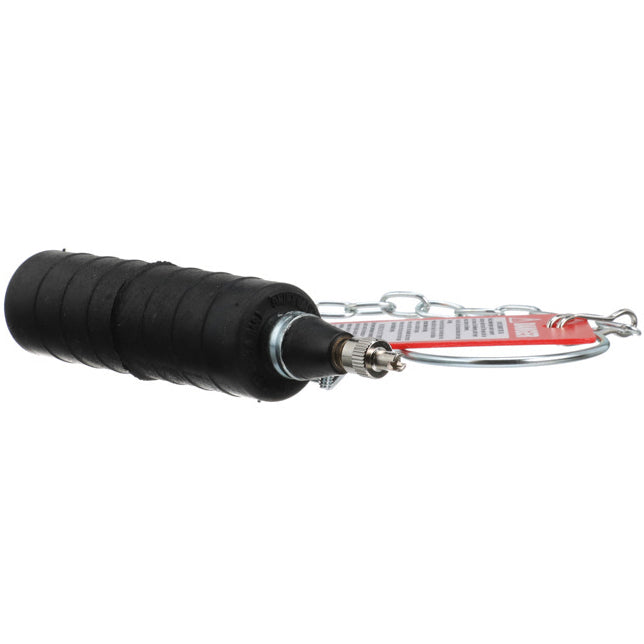

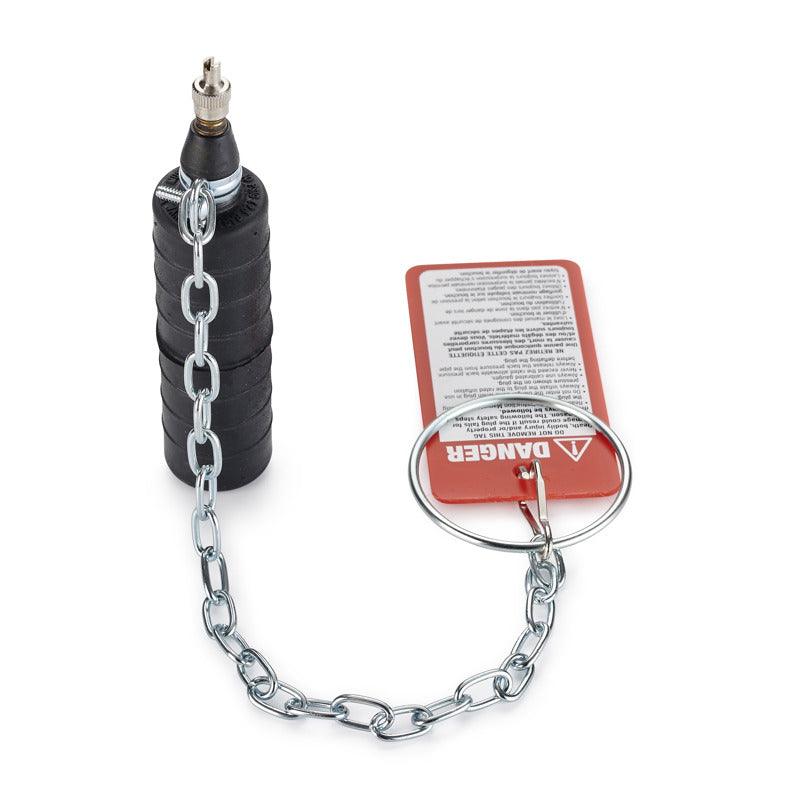

• Ring and chain assembly helps prevent the plug from being drawn into DWV systems during tests

Specifications

• Maximum Back Pressure: 13 psi (0,9 bar)/30 ft. (9.1 M)
• Inflation Pressure: 40 psi (2,8 bar)
• Usage Range: 1.17 in. - 1.75 in. (30 - 44 mm)
• Deflated Length: 5.5 in.
• Deflated Diameter: 1.1 in.
• Nominal Size: 1.25 in. - 1.5 in. (35 - 40 mm)
• Inflation Thread: 1.1 in. (31 mm)
• Weight: 3.5 oz.
• Nominal Min: 1
• Nominal Max: 2
• Brand: Cherne
• Color: Black
• Product Type: Single-Size Plumbing Test-Ball
• Chain Eye Bolts: Ring and Chain
• Plug Type: Blocking
