Regular price
$3.95
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

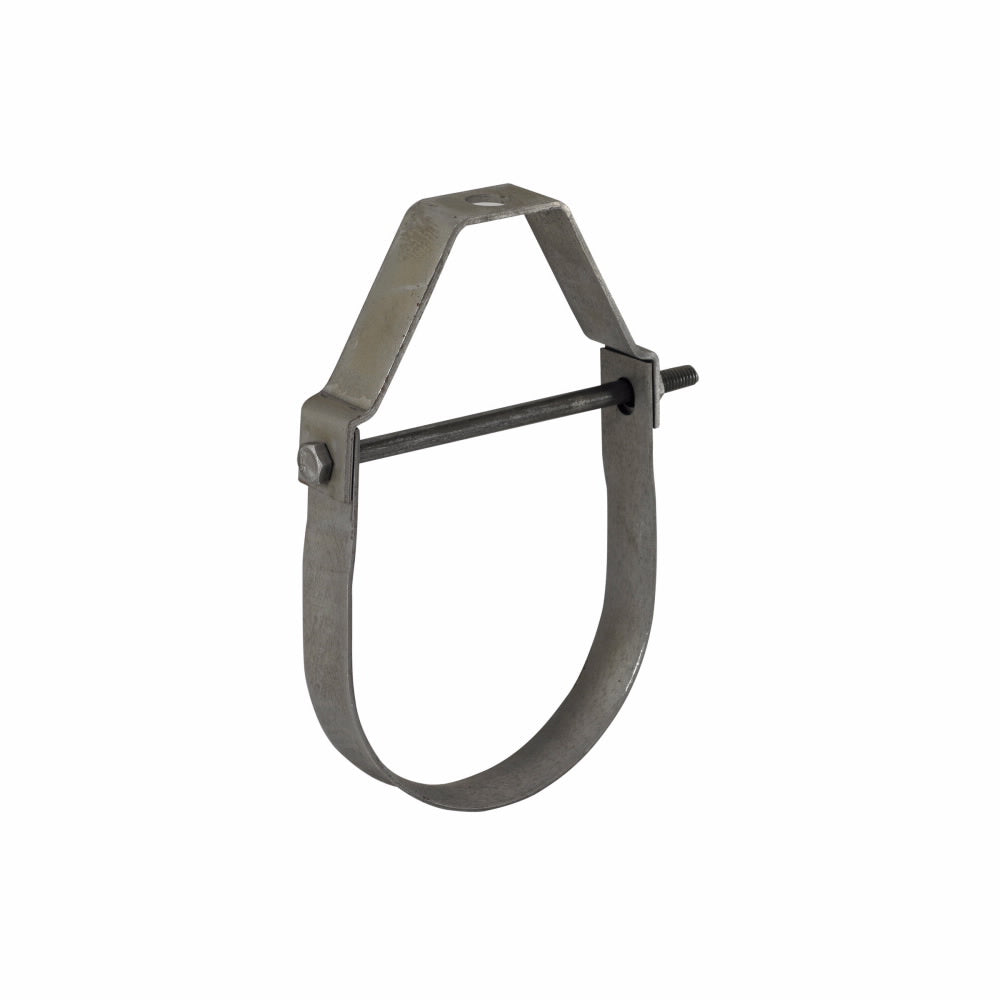

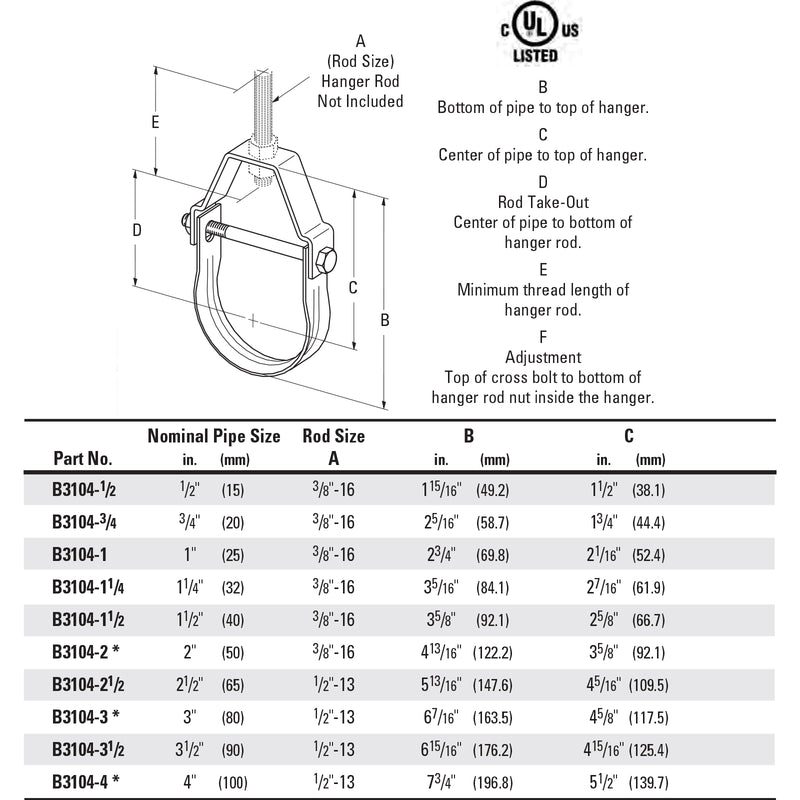

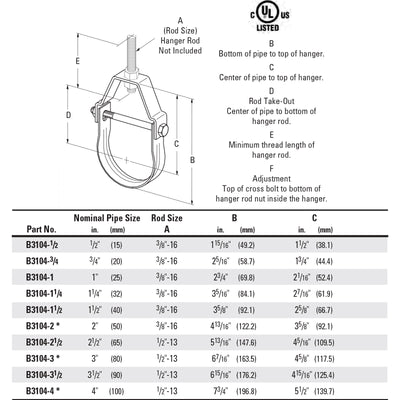

B3104 Specification SheetB-Line B3104-2 - 2" Light-Duty Clevis Hanger - CL710
Eaton B-Line series light duty clevis hanger, 0.8750" H x 4.6410" L x 3.5" W, Steel, Plain, 2" max pipe size. Recommended for the suspension of light stationary pipe allowing for vertical adjustment.
Features
- Size Range: 1/2" (15mm) to 4" (100mm) pipe
- Material: Steel
- Approvals: Underwriter's Laboratories Listed in the USA (UL) and Canada (cUL) for sizes 3/4" (20mm) thru 4" (100mm).
- Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 12 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 1.
Specifications
- Nominal Pipe Size: 2"
- Rod Size: 3/8"
- Product Length: 4.641"
- Product Width: 3.50"
- Product Height: 0.875"
- Product Weight: 0.35 lb
PHS1414765
