Submittal Sheet

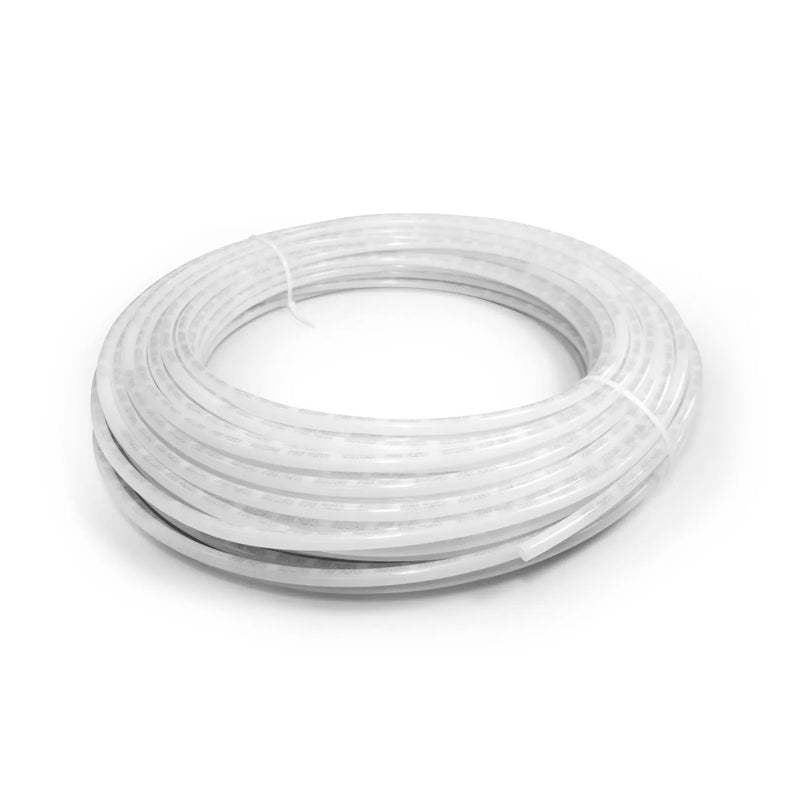

Uponor F1061000 -  1" AquaPEX White Coil - 300 Ft

Use Uponor AquaPEX white pipe in domestic hot, cold, and hot-water recirculation systems as well as AquaSAFE residential fire safety systems. The pipe is available in sizes from 1/4" to 3" in various coil lengths. It is also suitable for use in hydronic heating and/or cooling applications where the system contains no ferrous corrodible components or where any ferrous components are isolated from the pipe.

Features

• Part Name: 1" Uponor AquaPEX White, 300-ft. coil
• Part Number: F1061000
• Coil Outer Diameter: 32"
• Coil Inner Diameter: 22.7"
• Pipe Outer Diameter: 1.125"
• Pipe Inner: Diameter: 0.862"
• Codes: IMC | UPC | IBC | IRC | NBC of Canada | IPC | UFGS | NPC of Canada | UMC | NSPC
• Standards: ASTM F1960 | ASTM E119/UL 263 | ASTM F876 | ASTM E84 | ASTM F2023 | ASTM E814/ULC S115 | ASTM F877 | CSA B137.5 | ULC S102.2 | CSA B214 | NSF-61 | ULC S101 | NSF-14
• Listings: IAPMO-ES | ICC-ES-PMG | cNSFus-pw | CCMC | PPI TR4 | CSA | UL | U.P.Code | cQAIus P321 | HUD MR 1269 | BMEC
• Temperature / Pressure Ratings:
  • 73 degrees F at 160 psi (11 bar)
  • 180 degrees F at 100 psi (6.9 bar)
  • 200 degrees F at 80 psi (5.5 bar)
