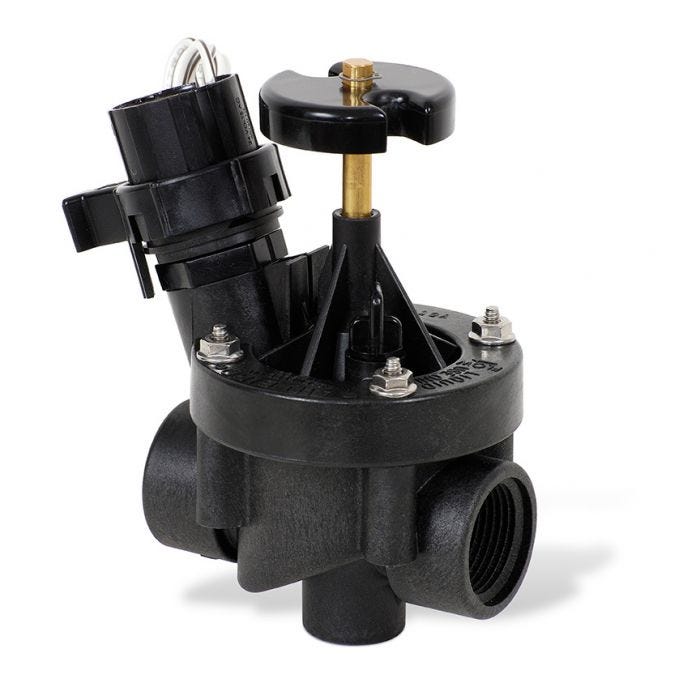

Rain Bird 100-PEB - 1" FPT Commercial Irrigation Valve - PEB Series

The PEB Series is Rain Bird's most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

Built even stronger in Rain Bird's effort to continually evolve the most durable products on the market, Rain Bird PEB series valves are setting a higher standard for commercial valves. With new enhancements, best-in-class PEB series valves are more durable than ever before.

Features

• 1 in. (40/49) plastic industrial irrigation valve
• Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance

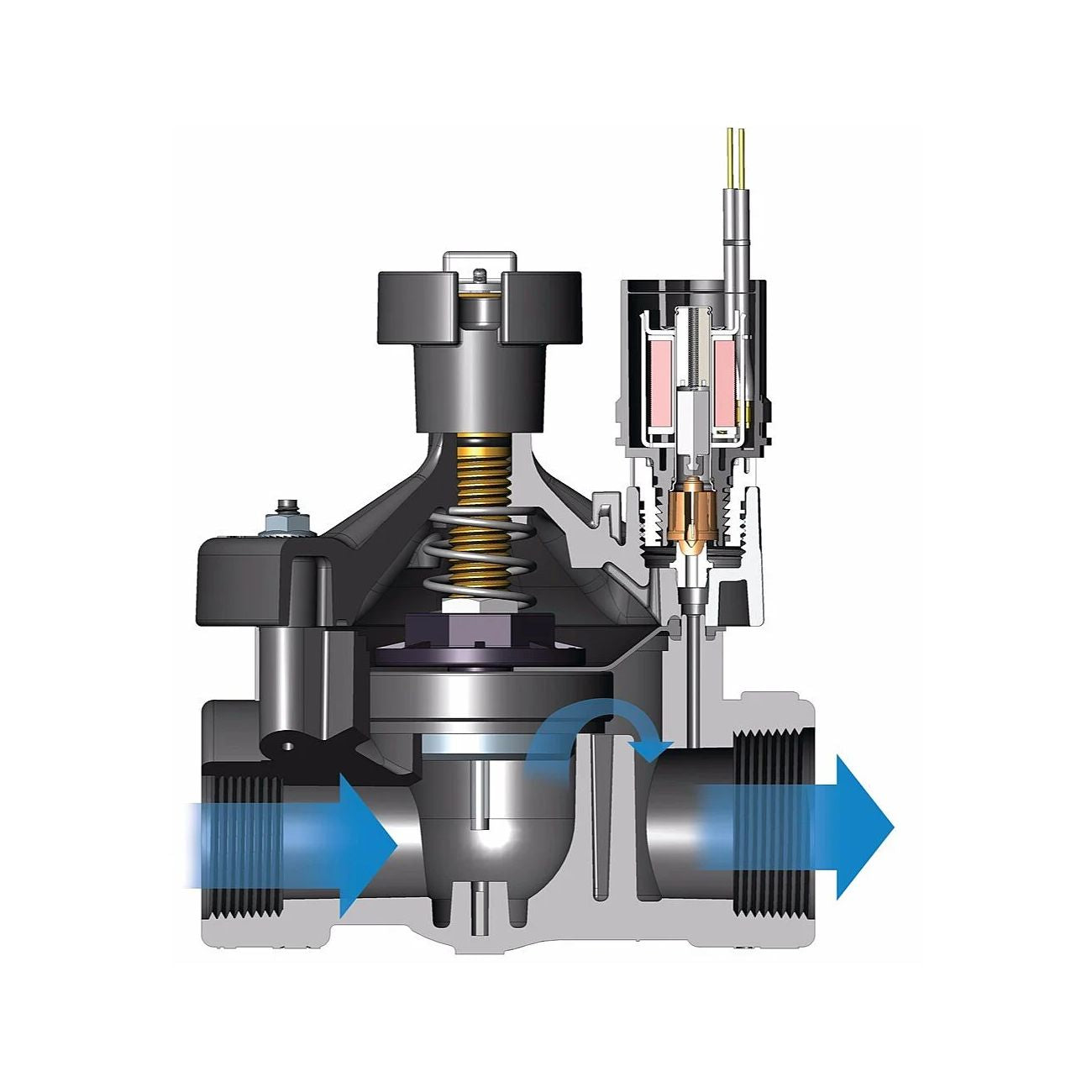

• Globe configuration
• Normally closed, forward flow design
• Slow closing to prevent water hammer and subsequent system damage
• Low flow capability for a wide range of applications
• One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
• Flow control handle adjusts water flows as needed
• A stronger, redesigned bonnet made with glass-filled nylon stands strong at high pressures and outlasts competing valves.
• Enhanced diaphragm material ensures maximum leak prevention at extreme temperatures or pressures.
• A robust one-piece solenoid design with captured plunger and spring off ers easy servicing.
• Stainless steel studs molded into the body let you remove the bonnet without damaging threads.
• External bleed protects the solenoid ports from debris when the system is fl ushed.
• Slow-closing operation prevents damage caused by water hammer.

Specifications

• Inlet Size: 1" NPT
• Pressure: 20 to 200 psi (1.4 to 13.8 bar)
• Flow: 0.25 to 200 GPM (0.06 to 45  m3/h; 0.02 to 12.60 l/s)
• Temperature: Up to 150 degrees F (66 degrees C)
• Power: 24VAC 50/60Hz (cycles/sec) solenoid power requirement
