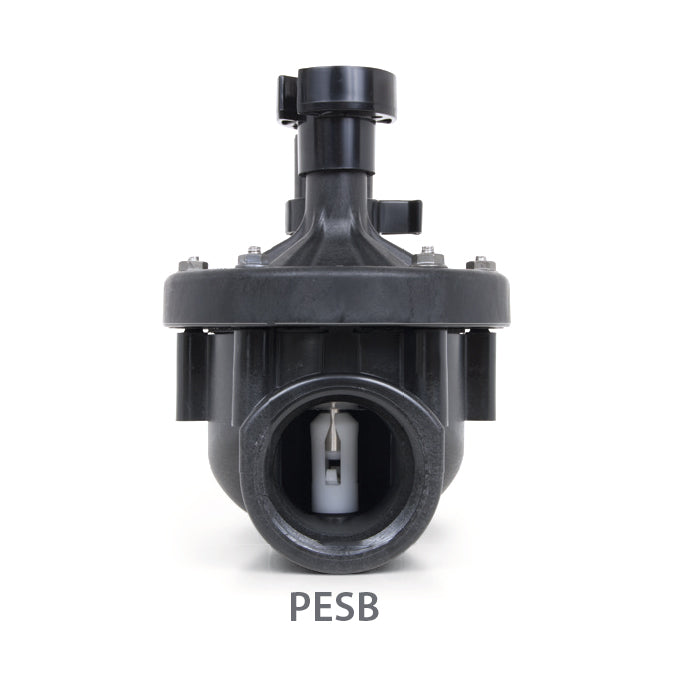

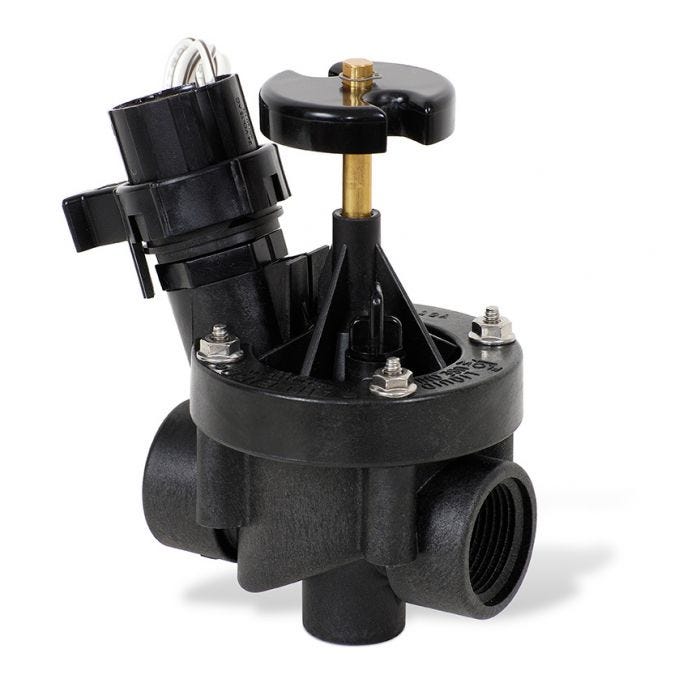

Rain Bird 100PESB - 1" FPT Commercial Irrigation Valve with Scrubber - PEB Series

The PESB Series is Rain Bird's most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications. The PESB series incorporates patented scrubber technology for reliable performance in dirty water irrigation applications.

Features:

• Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging.
• 1" (26/34) plastic industrial irrigation valve
• Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
• Globe configuration
• Normally closed, forward flow design
• Slow closing to prevent water hammer and subsequent system damage
• Low flow capability for a wide range of applications
• One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
• Flow control handle adjusts water flows as needed
• * Solenoid handle is not included *

Specifications

• Model: 100PESB / B34213
• Valve Size: 1"
• Valve Type: Inline
• Material: Plastic
• Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
• Valve Options: Dirty Water
• Valve Series: PEB/PESB
• Operating Temperature: Up to 150 degrees F (66 degrees C)
• Dimensions: 6 1/2" x 4" x 4"
• 24 VAC 50/60 Hz (cycles per second) solenoid
• Inrush current: 0.41A (9.9VA)
• Holding current: 0.14A (3.43VA)
• Coil resistance: 30-39 Ohms
• Operating Pressure: 20 to 200 psi (1,4 to 13,8 bar)

IEZR101655
