70-20602-01 - Blower Wheel - 11" x 10" - CW - 1/2" Bore
Regular price
$139.00
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

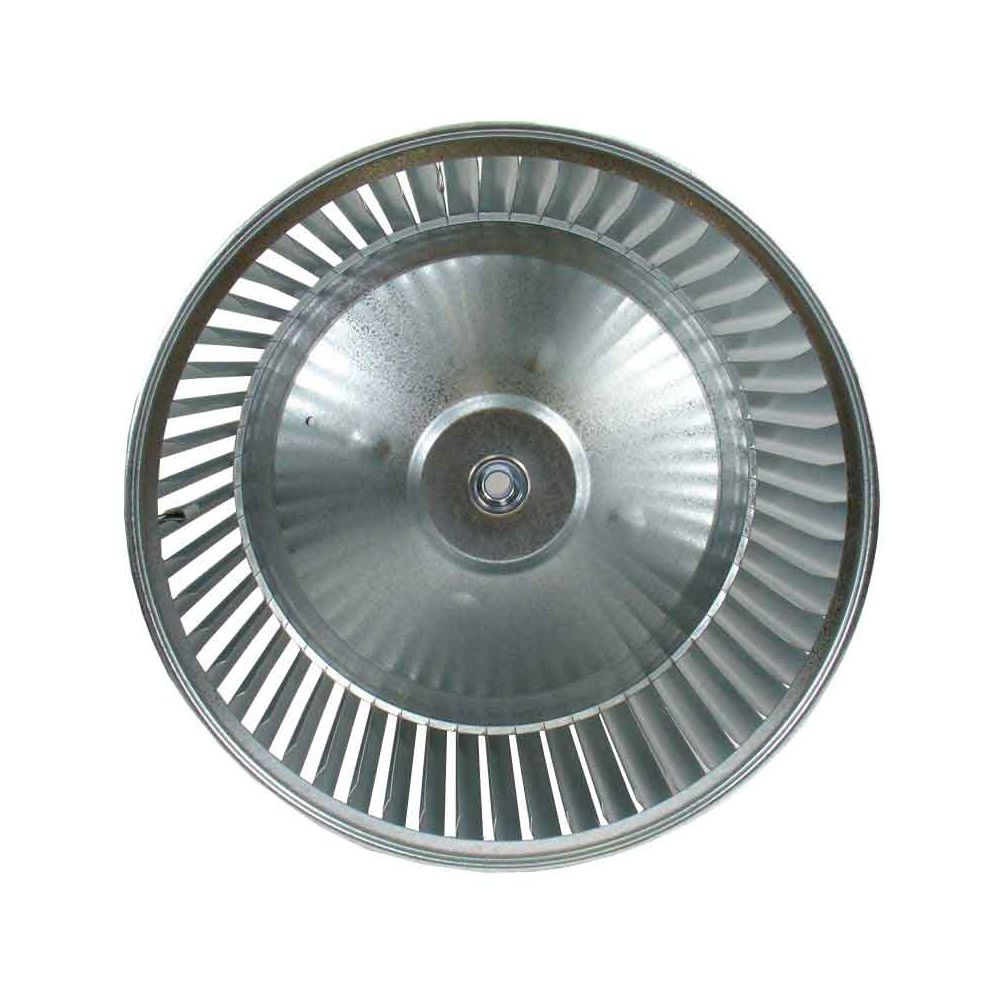

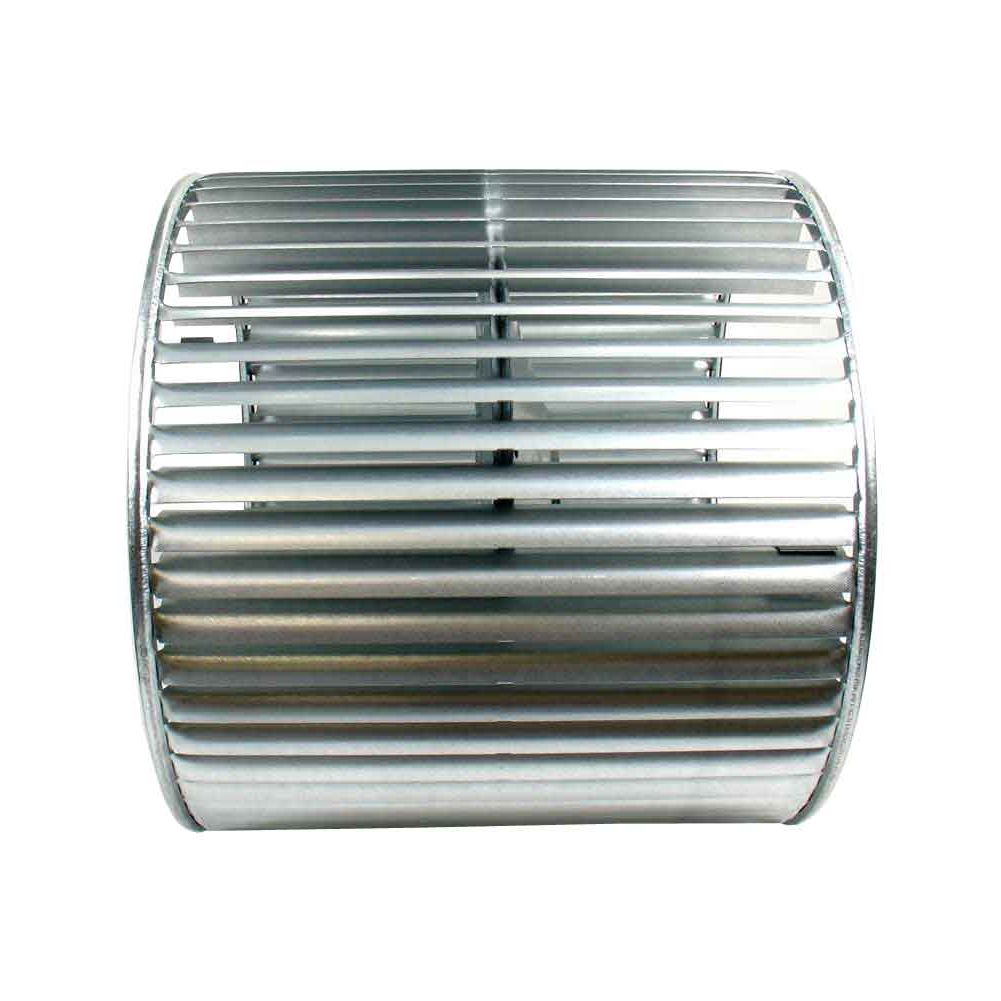

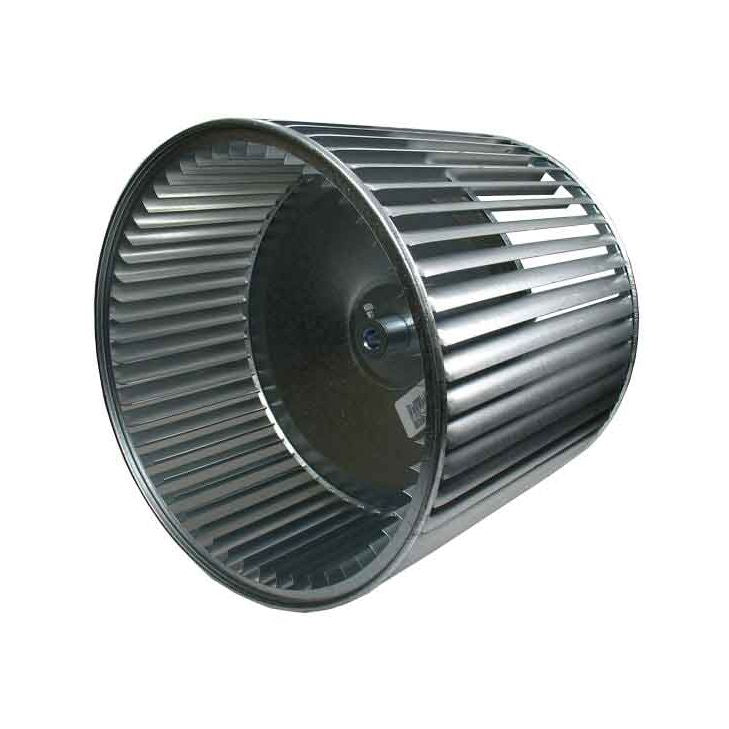

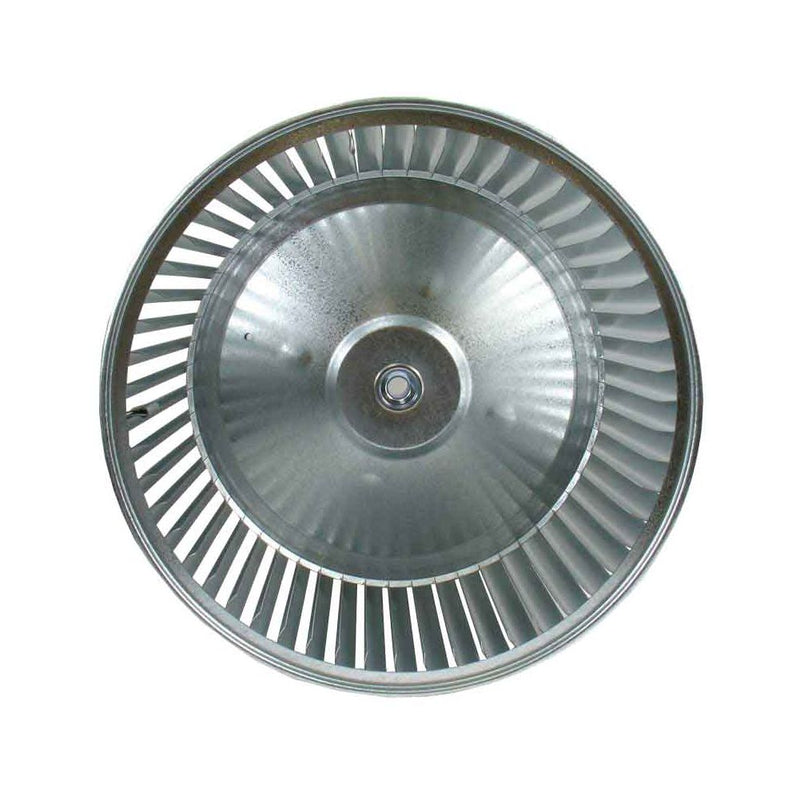

Rheem 70-20602-01 - Blower Wheel - 11" x 10" - CW - 1/2" Bore
The CW Blower Wheel for direct drive blowers are dynamically balanced and forward curved, incorporating the Preslok center disc construction for positive blade retention. The wheel provides higher RPM capability and industry proven reliability. Wheels are made of galvanized, cold-rolled steel. Rotation is by viewing hub (bore) end.
Features
- Universal blower wheels for direct drive blowers
- Made from galvanized cold rolled steel
- Concave
- OEM genuine factory authorized part

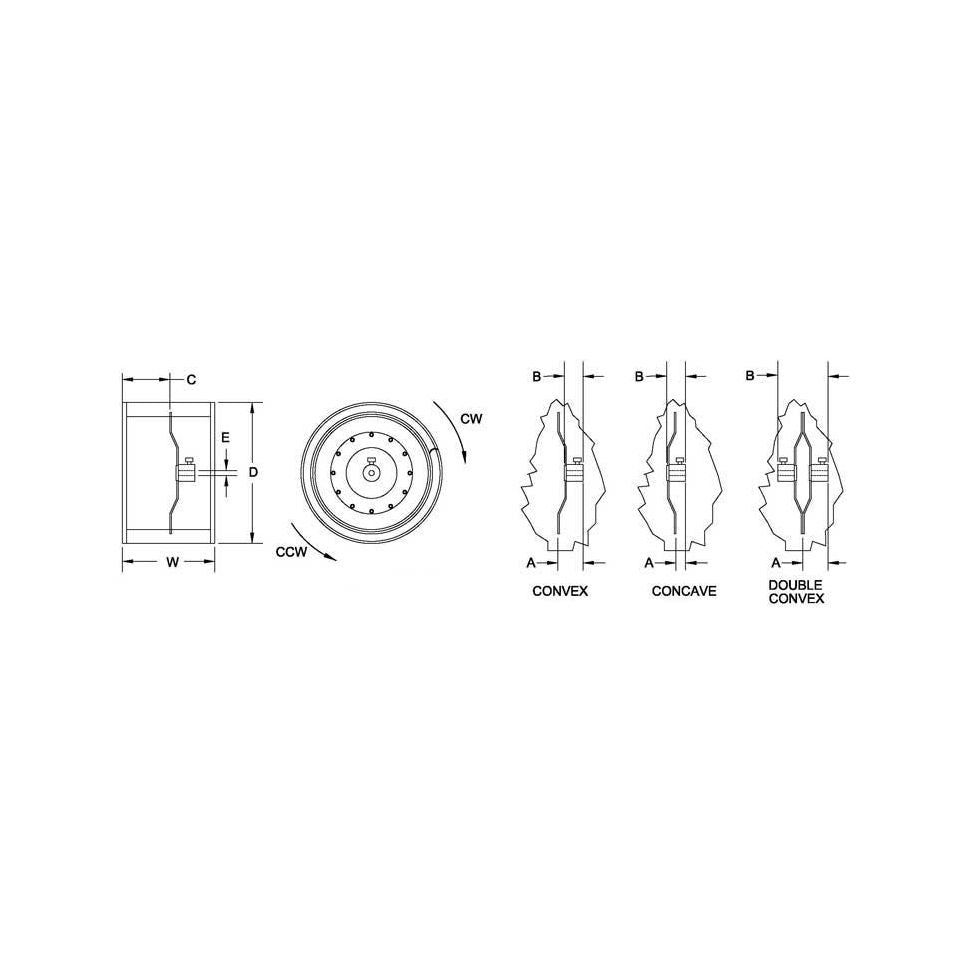

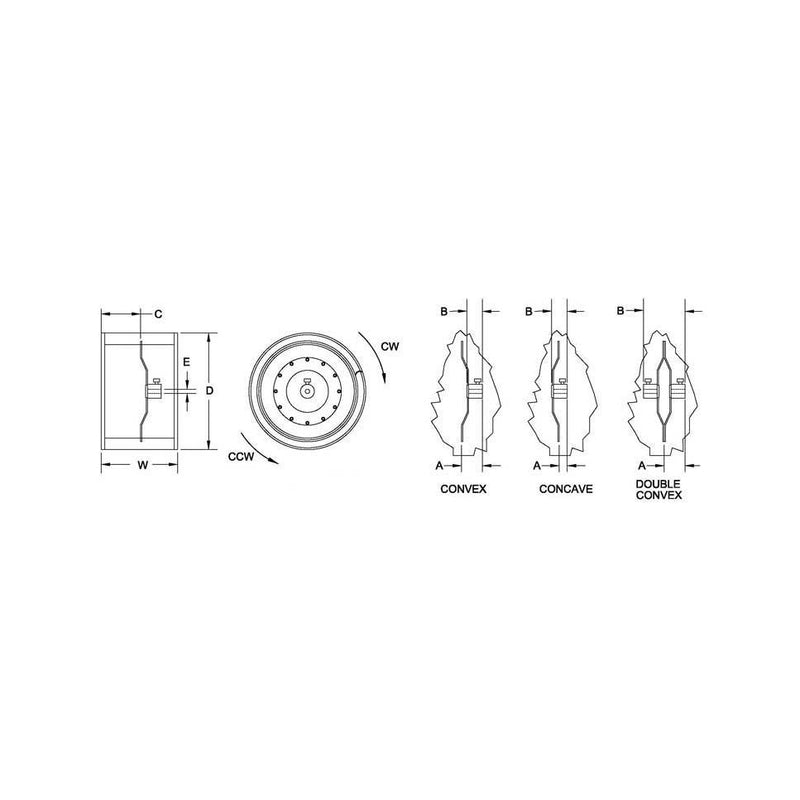

Technical Data
- Overall Diameter Dim. D (in.): 11-7/8
- Overall Width Dim. W (in.): 10-11/16
- Nominal Size (in.): 11 x 10
- No. of Blades: 54
- Nominal Hub Bore Shaft Size Dim. E (in.): 1/2
- No. Set Screws: 1
- Outside Edge of Disc to Outside End of Hub Dim. A (in.): 1/8
- Hub Length Dim. B (in.): 1-1/4
- Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 5-3/8
- Keyway (in.): None
- Rotation Direction (Facing Hub): CW
- Disc Shape (Hub side): Concave
Where Used
- 80BD
- 80BF
- 80LJ
- 80LS
- 80PF
- 80PJ
- 80PS
- 90RJ
- 90RS
- 90TJ
- 90TS
- R801P-ZSA
- R801P-ZSA_ZSB
- R801S-ZSA
- R802P-ZSA
- RGDG
- RGDJ
- RGED
- RGLG
- RGLH
- RGLJ
- RGLK
- RGLN
- RGLQ
- RGLS
- RGPH
- RGPJ
- RGPK
- RGPN
- RGPP
- RGPQ
- RGPS
- RGRA
- RGRC
- RGRJ
- RGRK
- RGRS
- RGSA
- RGTA
- RGTC
- RGTJ
- RGTK
- RGTS
- RGVG
- RGVH
- RGVJ
- RHWB
- ROBD
- ROBF
- ROPD
- ROPF
- SGDG
- SGPN
Replaces
- 5152-5585
- 5153-5520
- 5152-5530
- 5152-5538
- 5152-5582
- 70-20602-03
- 70-20602-02
- 70-18782-02
HUZ2010710
