Home » Rheem » 70-24041-01 - Blower Wheel - 12" x 11" - CW - 1/2" Bore
Rheem

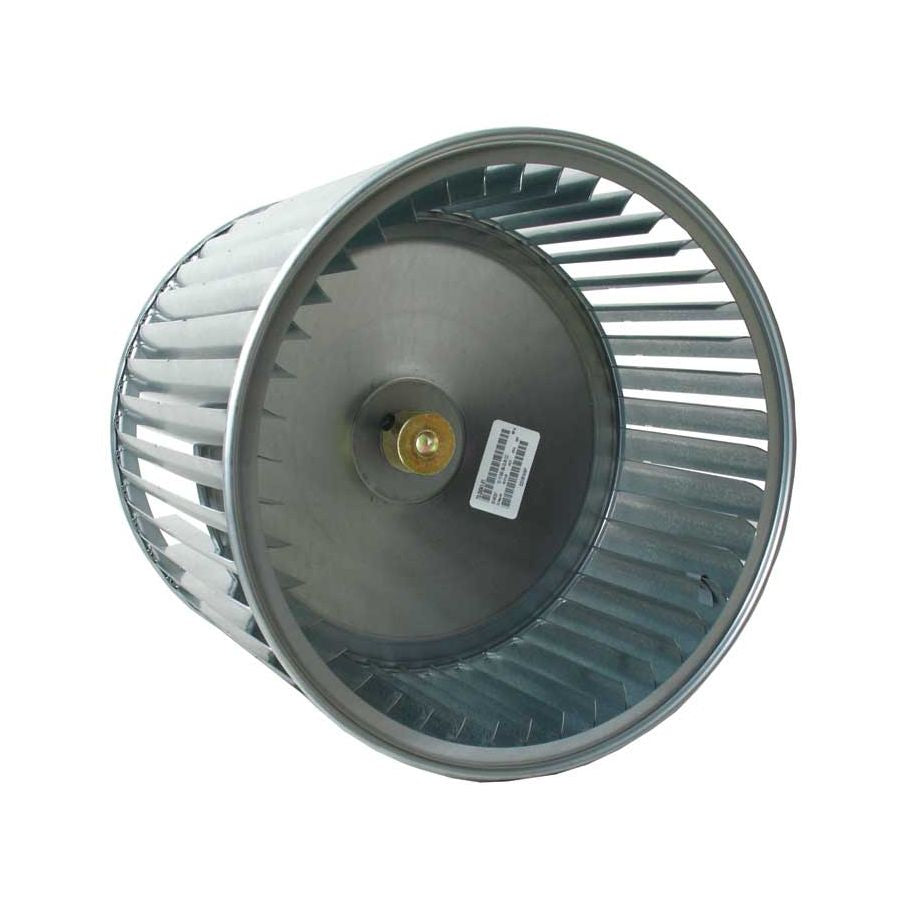

70-24041-01 - Blower Wheel - 12" x 11" - CW - 1/2" Bore

In stock
SKU: 70-24041-01
$119.49

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Rheem 70-24041-01 - Blower Wheel - 12" x 11" - CW - 1/2" Bore

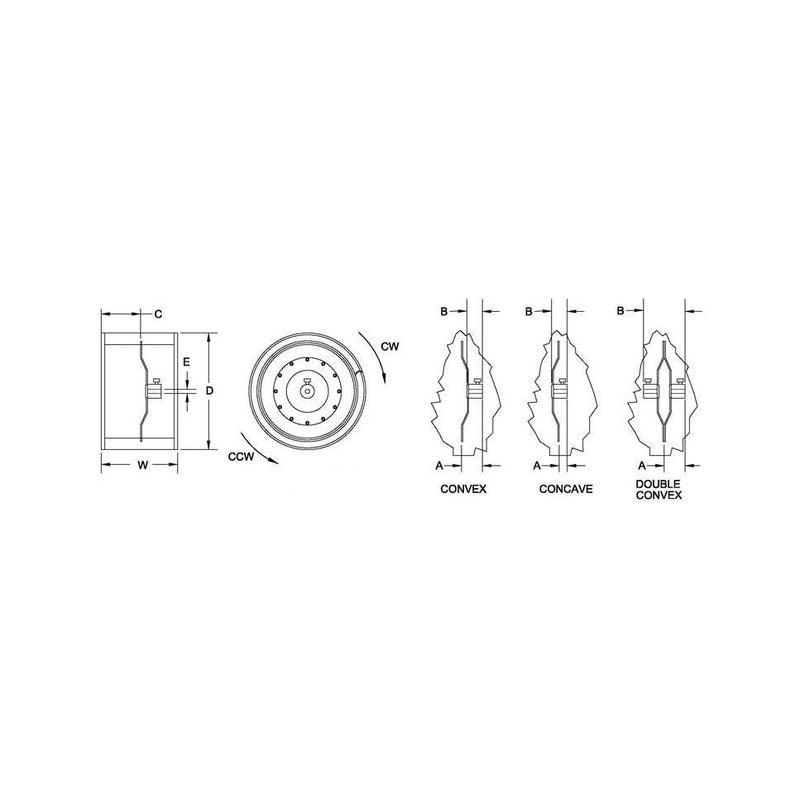

Technical Data

  • Overall Diameter Dim. D (in.): 12-3/4
  • Overall Width Dim. W (in.): 11-1/8
  • Nominal Size (in.): 12 x 11
  • Number of Blades: 43
  • Nominal Hub Bore Shaft Size Dim. E (in.): 1/2
  • Number Set Screws: 1
  • Outside Edge of Disc to Outside End of Hub Dim. A (in.): 1/8
  • Hub Length Dim. B (in.): 1-1/8
  • Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 5-9/16
  • Keyway (in.): None
  • Rotation Direction (Facing Hub): CW
  • Disc Shape (Hub side): Concave

Where Used

  • 90RJ
  • 90RS
  • 90TJ
  • 90TS
  • RGRA
  • RGRC
  • RGRJ
  • RGRK
  • RGRL
  • RGRS
  • RGSA
  • RGTA
  • RGTC
  • RGTJ
  • RGTK
  • RGTS



HUZ2010755
