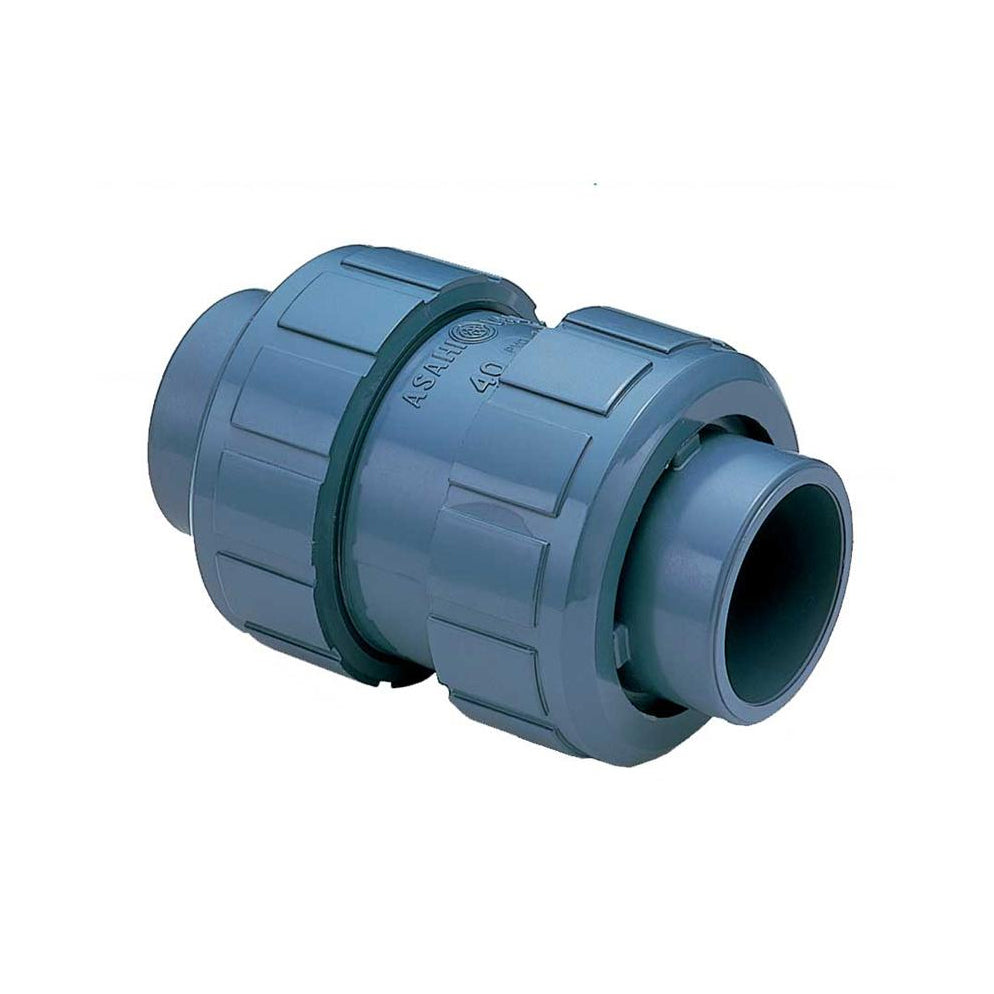

1219010 - 1" CPVC True Union Ball Check Valve - Socket and Threaded End Connectors

Only 1 left
SKU: 1219010
$81.87

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Asahi 1219010 - 1" CPVC True Union Ball Check Valve - Socket and Threaded End Connectors

True Union Ball Check Valve (1/2 - 2 in.) and Single Union Ball Check Valve (3 - 4 in.)

The Asahi/America ball check valve employs a free moving ball, which unseats to permit flow in one direction, but seals against a seat to prevent backflow. It may be installed vertically or horizontally. Also available as foot valve for suction side of pump.

Ideal Applications Include:

Chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants

Features

  • Uniseat/seal of EPDM or FKM
  • Ball is the only moving part. It unseats to permit flow in one direction but seals against seat to prevent backflow.
  • May be used vertically or horizontally
  • Minimum shut-off of 5 psi
  • All sizes rated for full vacuum service
  • Solid thermoplastic ball



DASAH00442
