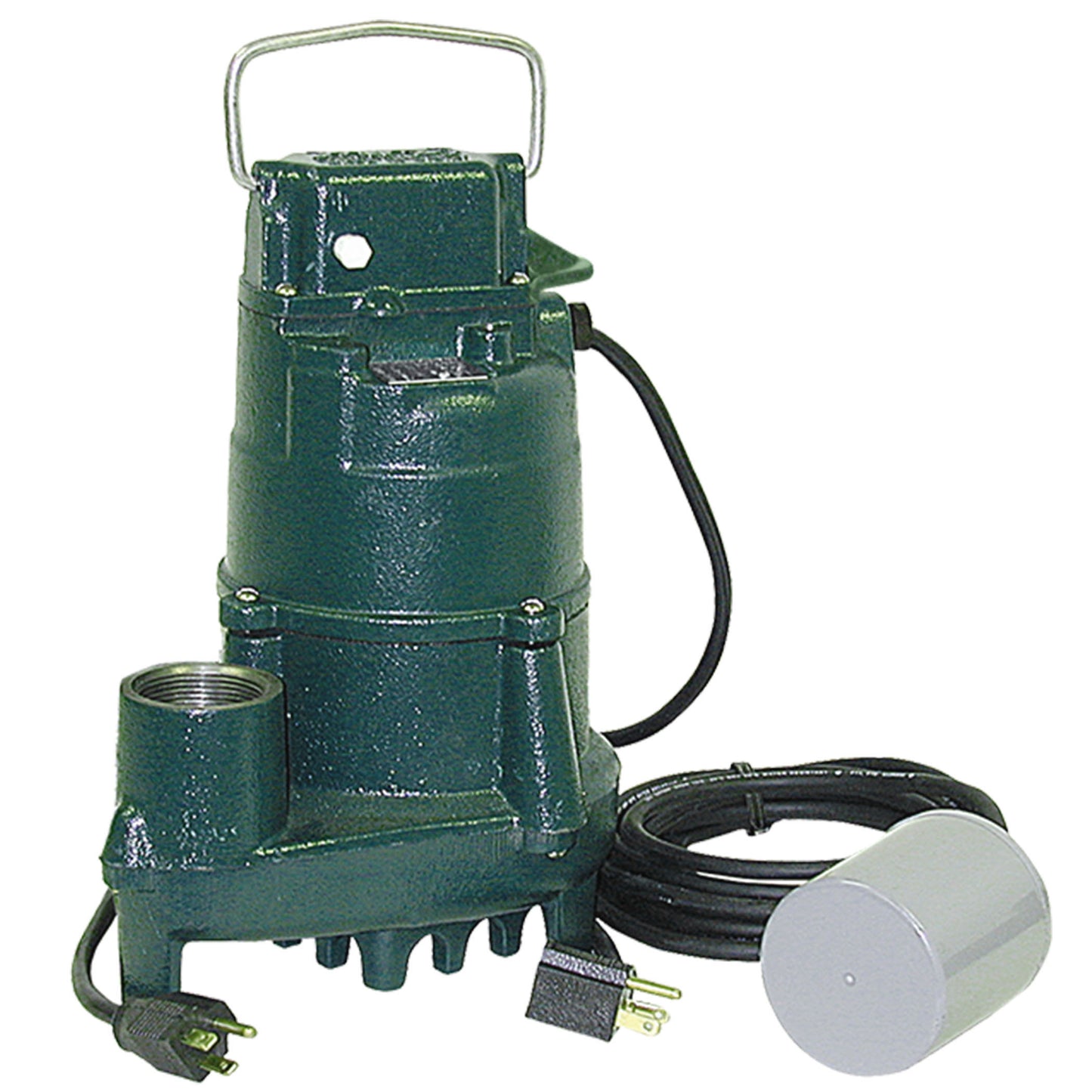

Zoeller 153-0005 - Model BN153 Dose Mate High Head Effluent Pump with Piggyback Switch - 115V, 1/2 HP
Zoeller's Model BN153 nonautomatic Effluent Pump is designed to remove unwanted water in septic effluent applications. It is an ideal choice in high pressure or high flow applications. The professional-grade, 1/2 HP Model 153 is known for its dependability. The BN153 is a nonautomatic pump equipped with a single piggyback float switch. The piggyback float switch allows you to set the on and off point of the pump in the field. This is ideal in an application with a deep sump pit or pump tank.
The Model 153’s switch case, motor housing, and pump housing are each constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 153 is able to withstand the most demanding applications.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Features
- Corrosion-resistant, powder coated epoxy finish
- Durable, cast iron construction
- Cast iron switch case, motor and pump housing
- Engineered thermoplastic base
- No sheet metal parts to rust or corrode
- All castings are cast iron class 25-30 25000# tensile strength
- Stainless steel screws, guard, handle, arm and seal assembly
- Float-operated 2-pole mechanical switch
- Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
- Bearings – upper and lower oil-fed cast iron
- Carbon and ceramic shaft seal
- Entire unit pressure-tested after assembly
- Watertight, neoprene square ring between motor and pump housing
- No screens to clog
- Simplex and duplex systems available
- Packaged systems available
- Automatic and non-automatic available
- Available with piggyback variable level float switch
- 3 year limited warranty
Specifications
- Horsepower: 1/2 HP
- Voltage: 115 V
- Amps: 10.5
- Hertz: 60 Hz
- RPM: 3450
- Discharge: 1-1/2" NPT
- Solids Handling: 3/4" (19 mm) spherical solids
- Impeller Material: Engineered plastic
- Impeller Type: Vortex
- Cord Length: 20' (6 m)
- Shipping Weight: 39 lbs
- Shipping Dimensions: Height 16 1/2 in x Width 11 in x Length 13 3/4 in.
