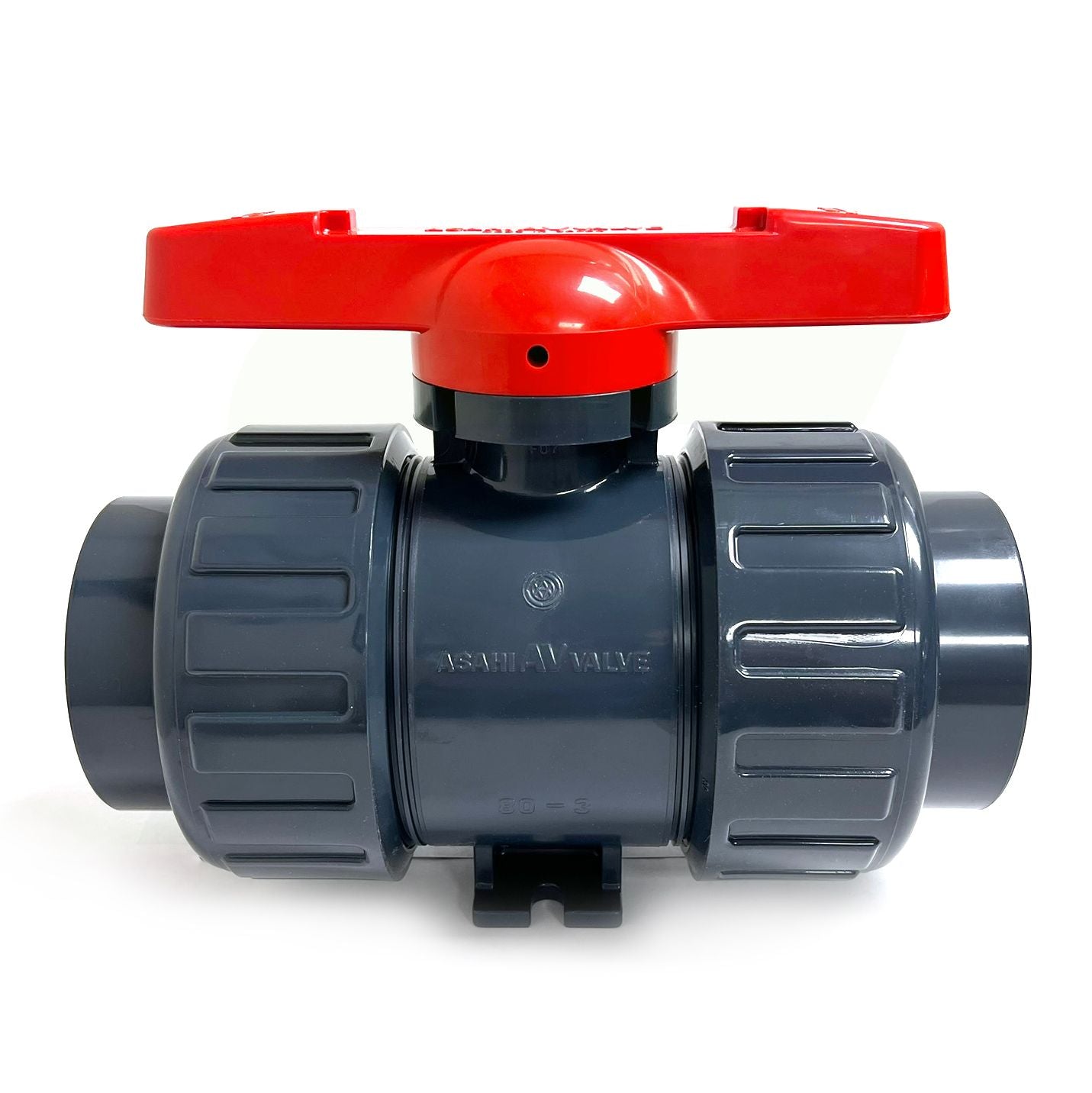

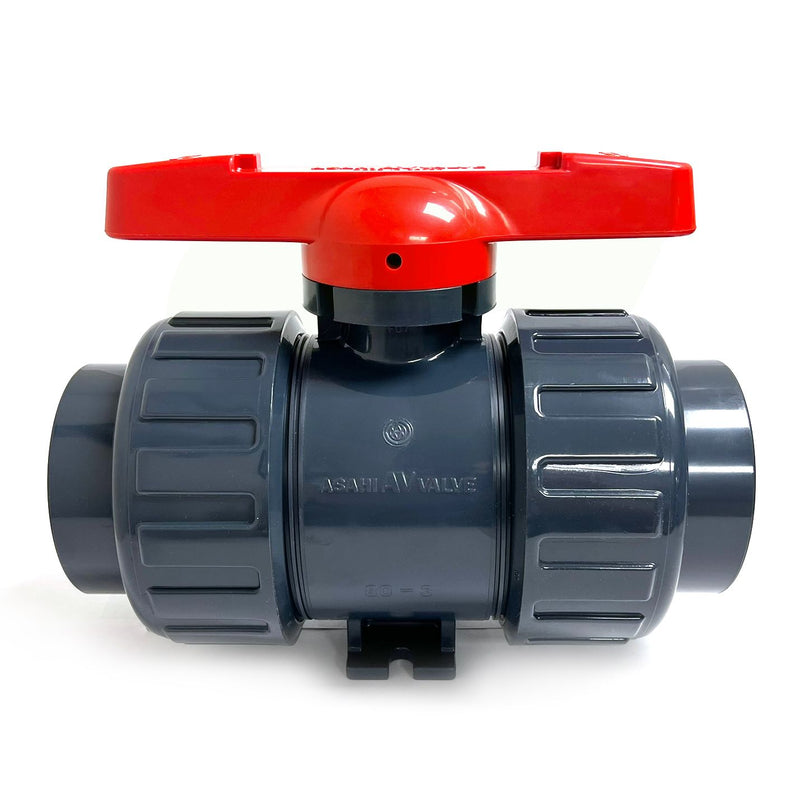

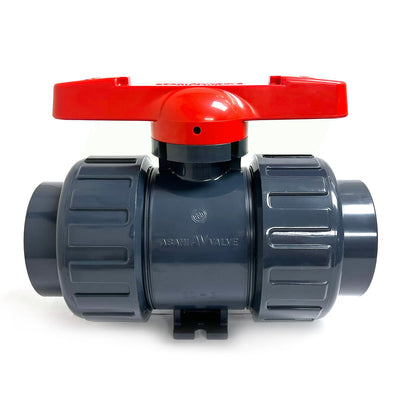

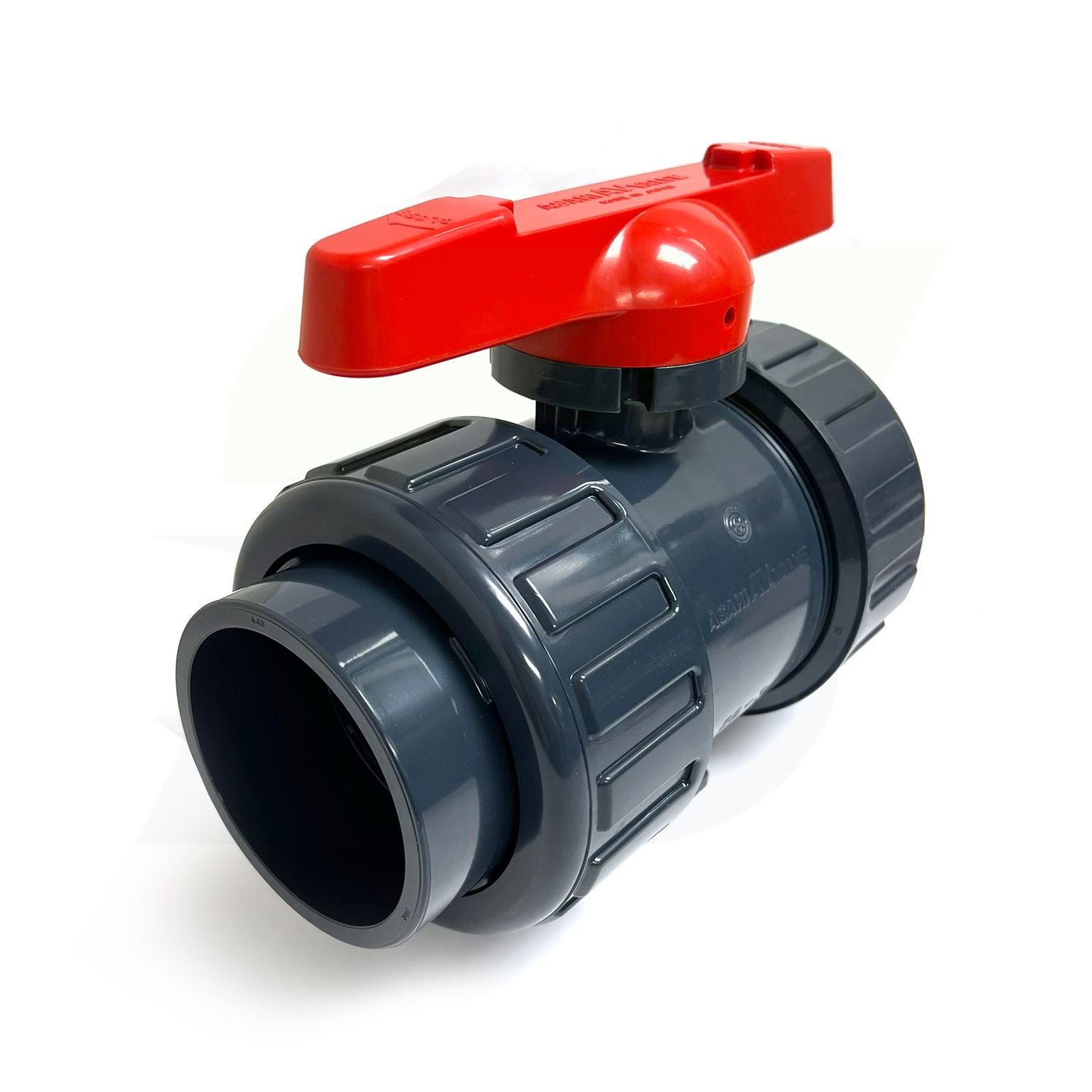

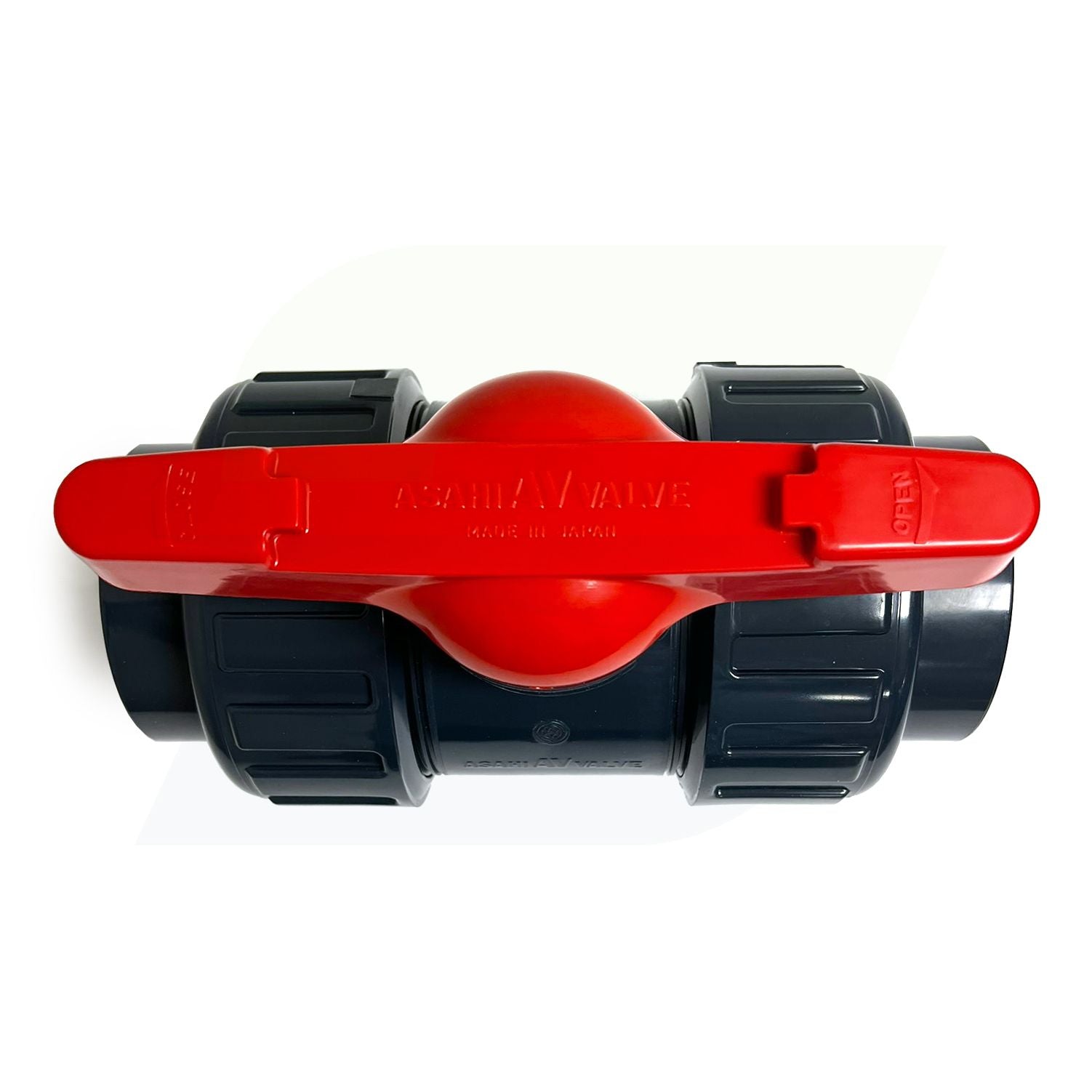

3" PVC/EPDM/SOC/TU DUO-BLOC 21 BALL VALVE

Features and Benefits

• Pressure rated up to 230 psi (PVC, CPVC, PVDF)
• Double O-ring seals on stem for an added protection.
• Full bore, sizes ½" 2"
• Full vacuum rated, all sizes
• Blocks in two directions, upstream and downstream, leaving full pressure on the opposite end of the valve
• Integrally molded ISO mounting pad for both manual and actuated operations
• Integrally molded base pad to mount valves Securely or panel mounting
• PTFEseats with elastomeric backing cushions ensure bubble-tight shut-offand a low fixed torque, while at the same time compensating for wear

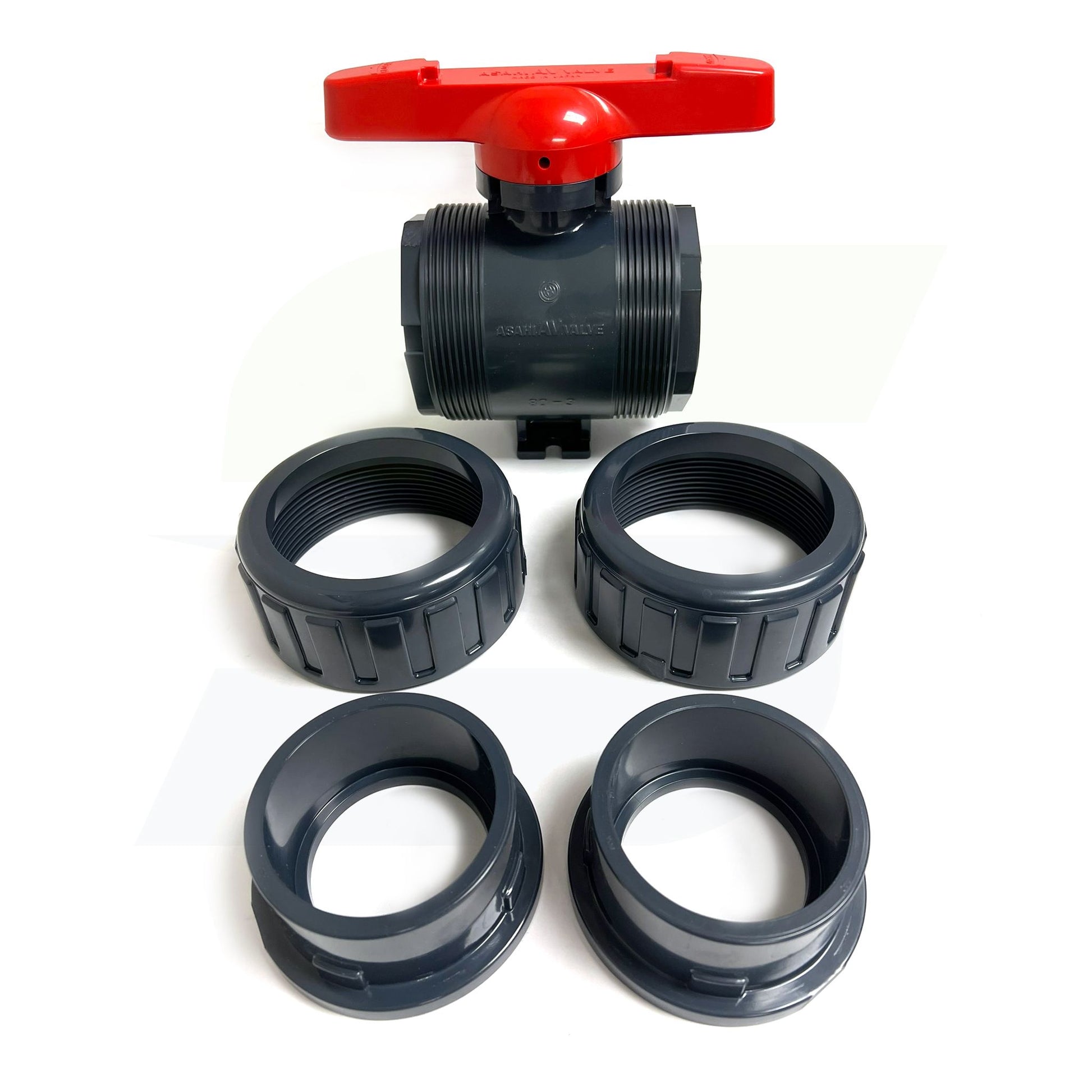

• True Union design for easier installation or repairs without expanding the pipe system
• Built-in spanner wrench on the handle for valve disassembly and assembly
• Two sets of end connectors (socket and threaded) included with all PVC and CPVC valves in sizes ½" 2"
• CPVC threaded end connectors on sizes ½" 1" come with stainless steel reinforcing rings
• NSF-61 Certified - Size: ½" - 4", Material: PVC, EPDM, FKM

DASAH00214
