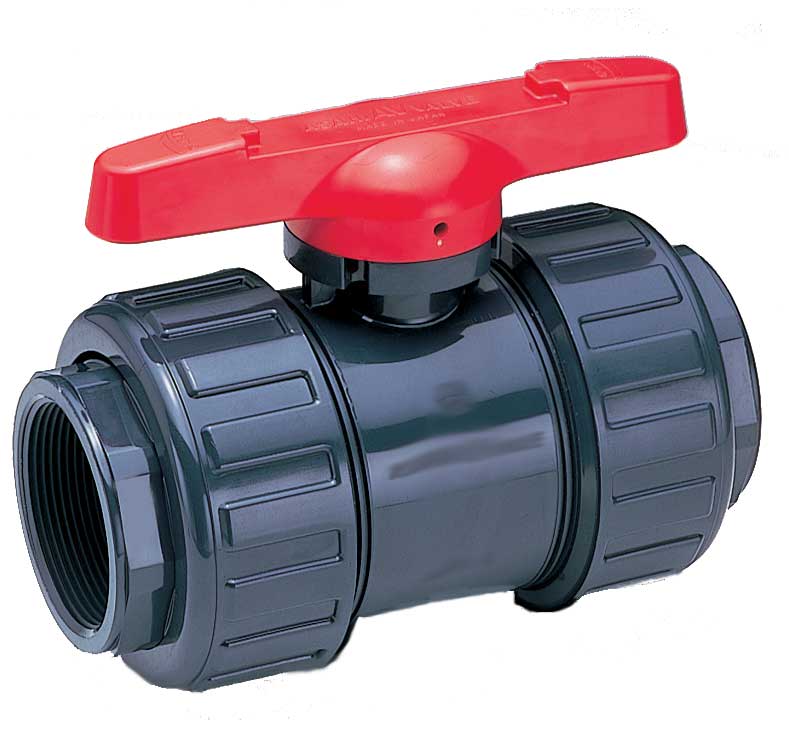

1605007 - 3/4" PVC True Union In-line Ball Valve, with Socket and Threaded End Connectors
1605007 - 3/4" PVC True Union In-line Ball Valve, with Socket and Threaded End Connectors
No reviews
In stock
Regular price
$56.07
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
3/4" PVC/FKM/SOC/THR/TU DUO-BLOC 21 BALL VALVE
Features and Benefits
- Pressure rated up to 230 psi (PVC, CPVC, PVDF)
- Double O-ring seals on stem for an added protection.
- Full bore, sizes ½" 2"
- Full vacuum rated, all sizes
- Blocks in two directions, upstream and downstream, leaving full pressure on the opposite end of the valve
- Integrally molded ISO mounting pad for both manual and actuated operations
- Integrally molded base pad to mount valves Securely or panel mounting
- PTFEseats with elastomeric backing cushions ensure bubble-tight shut-offand a low fixed torque, while at the same time compensating for wear
- True Union design for easier installation or repairs without expanding the pipe system
- Built-in spanner wrench on the handle for valve disassembly and assembly
- Two sets of end connectors (socket and threaded) included with all PVC and CPVC valves in sizes ½" 2"
- CPVC threaded end connectors on sizes ½" 1" come with stainless steel reinforcing rings
- NSF-61 Certified - Size: ½" - 4", Material: PVC, EPDM, FKM
