Specification Sheet

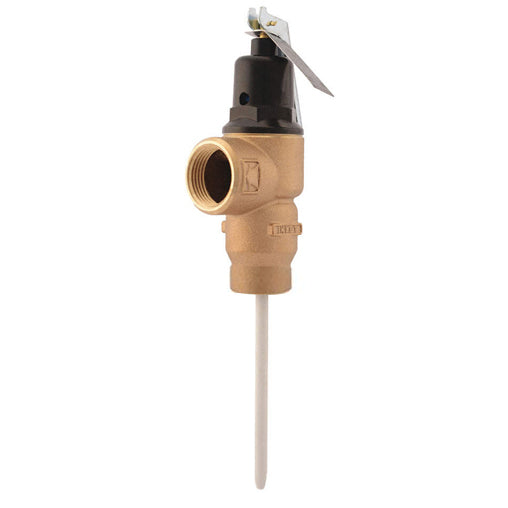

Cash Acme 16931-0150 - 3/4" FVX-5C Commercial Temperature and Pressure Relief Valve, Female Inlet

The Cash Acme FVX Series combination temperature and pressure relief valves are designed to offer high capacity protection for domestic and commercial water heating devices. The Cash Acme FVX Series is fully automatic, and the valves reseat after either temperature or pressure relief.

The FVX Series Valves have a standard factory pressure relief setting of 150 psi. Most models are also available with a pressure relief setting in the range of 75 psi to 150 psi.

Features:

• Offers high capacity protection for domestic and commercial hot water heating devices: Handles more volume with just one relief valve.
• Completely automatic: The valves reseat after either temperature or pressure relief.
• The larger series valves are well suited for commercial applications: Restaurants, hospitals, and laundries are no problem!
• Listed by CSA (ANSI Z21.22/CSA 4.4) and the National Board (ASME Boiler Code Section IV)
