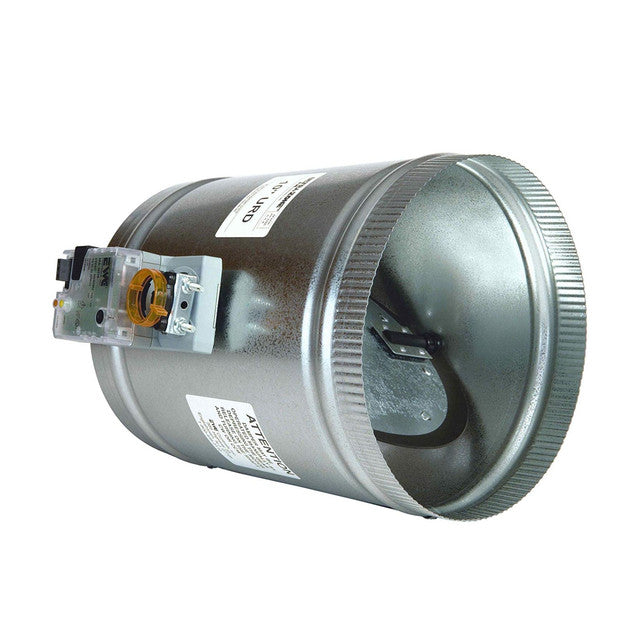

EWC Motorized Round Damper

A single blade round damper with a (2) two position, 24 volt motor. The motor is powered both ways – powered open and powered closed. The motor features LED’s that indicate the position of the motor whether open or closed. The LED’s are colored RED for closed and GREEN for open. These indictors are a failsafe measure meaning that they will not illuminate until the blade of the damper has gone to its full open or full closed position. The motor is a 3 wire hook-up with a common, a power open leg and a power closed leg.

Features

• Double layered blade design with an integrated Poron sealing gasket
• Superior design insures long life and zero maintenance
• URD dampers are easy to install, easy to wire up, and come with a 5 year warranty
• Constructed of heavy 24 gauge galvanized steel with factory rolled stiffening beads
• MA-ND5 motor features bright Green and Red LED's which correspond to the OPEN and CLOSED position of the blade

Available Sizes

• SKU       SIZE    LENGTH
• URD-4     4"         10"
• URD-5     5"         10"
• URD-6     6"         12"
• URD-7     7"         12"
• URD-8     8"         12"
• URD-9     9"         12"
• URD-10   10"       12"
• URD-12   12"       14"
• URD-14   14"       16"
