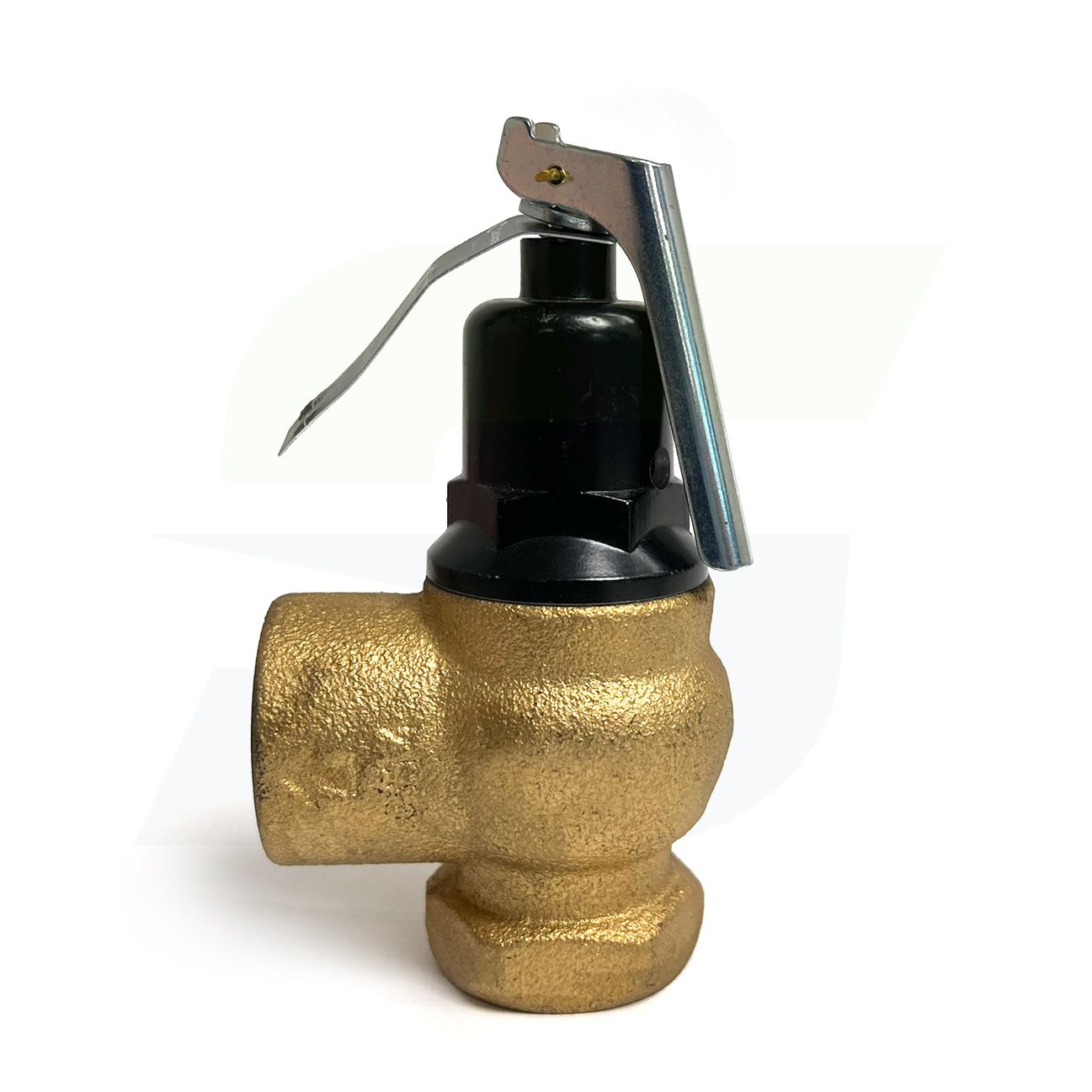

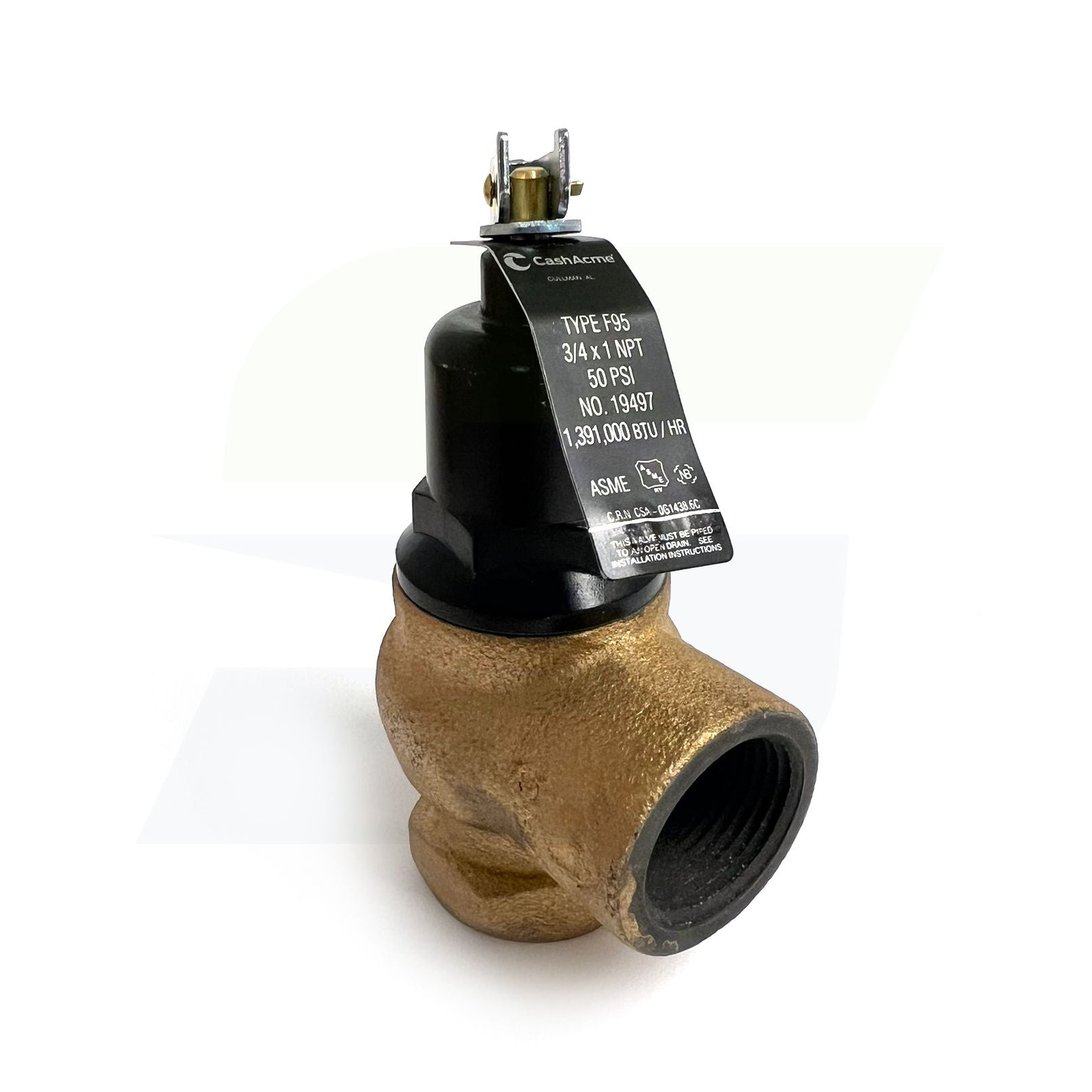

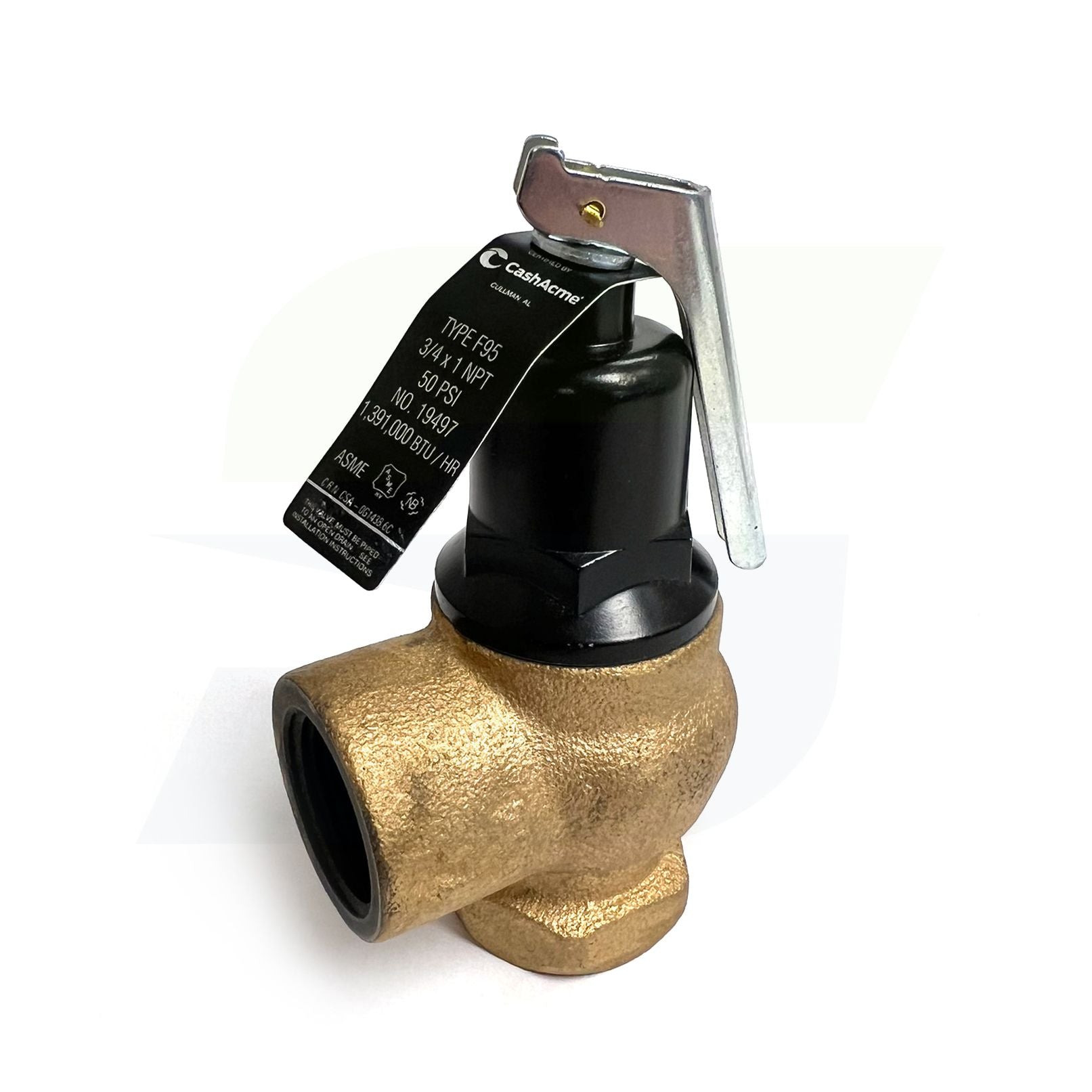

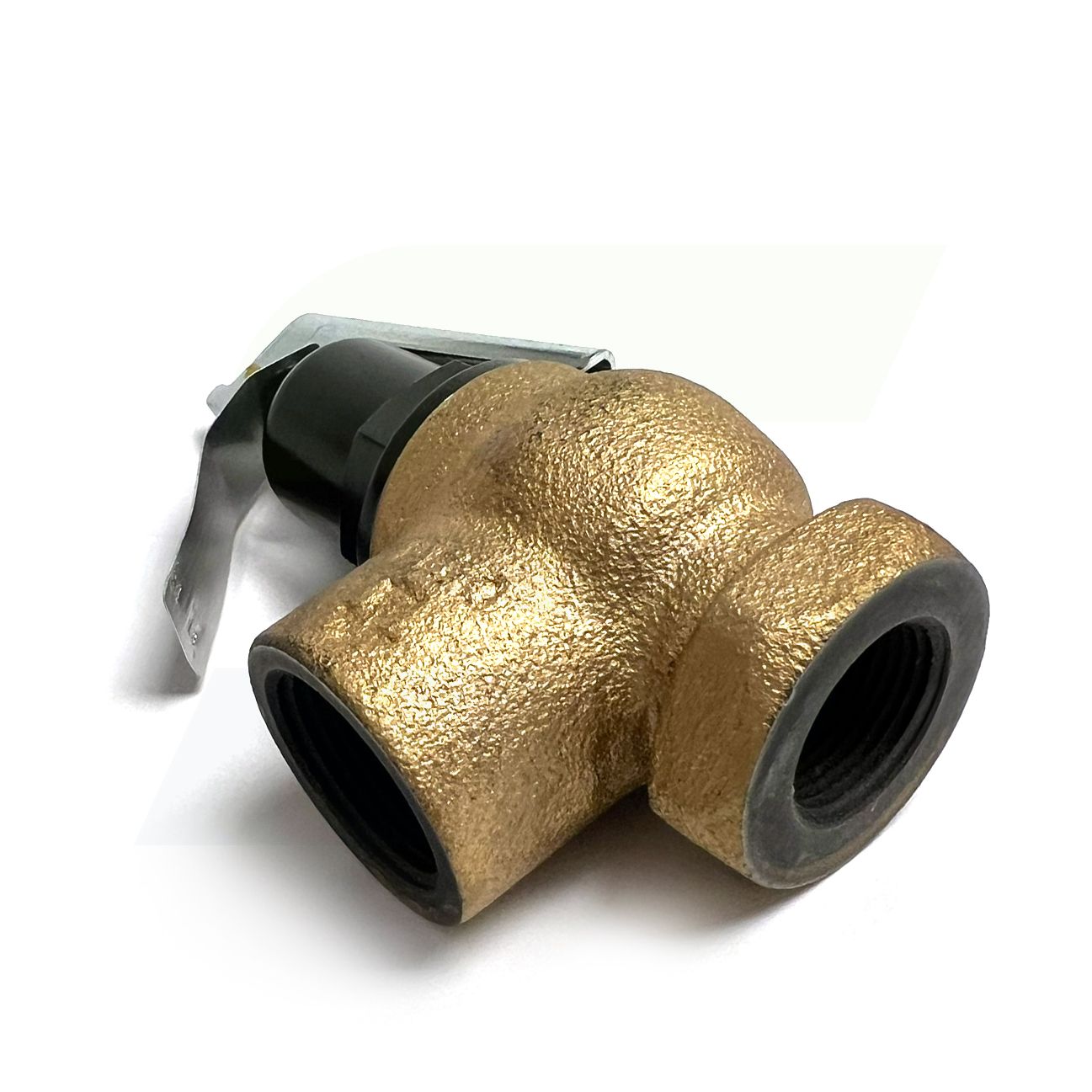

Cash Acme 19497-0050 - 3/4" x 1" F-95 Pressure-Only Relief Valve - 50 PSI
The F-95 Expanded Outlet Pressure Relief Valve offers a complete package of expanded boiler ASME safety pressure relief valves in sizes ranging from 3/4" x 1" through 2" x 2-1/2". The F-95 features an iron body construction, brass seat, silicone seat disc and EP diaphragms for high-temperature applications. It also incorporates a pop-type action. The F-95 Valves are available with relief settings from 30 to 75 psi.
This complete range of high capacity, safety relief valve sizes provide pressure protection for nearly all types of commercial and industrial OEM boilers and water heating system applications.
Features:
- Provides pressure protection for nearly all types of commercial and industrial OEM boilers and water heating system applications.
- Provides pressure protection for commercial/industrial OEM boilers and hot water heating system applications.
- Higher Capacity - Handles more volume with just one relief valve.
- ASME Section IV Listed - Inspector friendly, peace of mind!
- Every valve is tested for performance prior to shipping
Specification:
A relief valve shall be installed to relieve pressure at a pre-determined set. The valve shall have a female inlet and a female expanded outlet. The valve shall have a brass seat, silicone seat disc and an EP diaphragm for high temperature applications. The valve shall be ASME listed and National Board Certified. The valve shall be a Cash Acme F-95.
