Home » Webstone » Isolation Valves » H-81417HV - 2" Press x Flange Isolator w/ Drain & Rotating Flange
Webstone

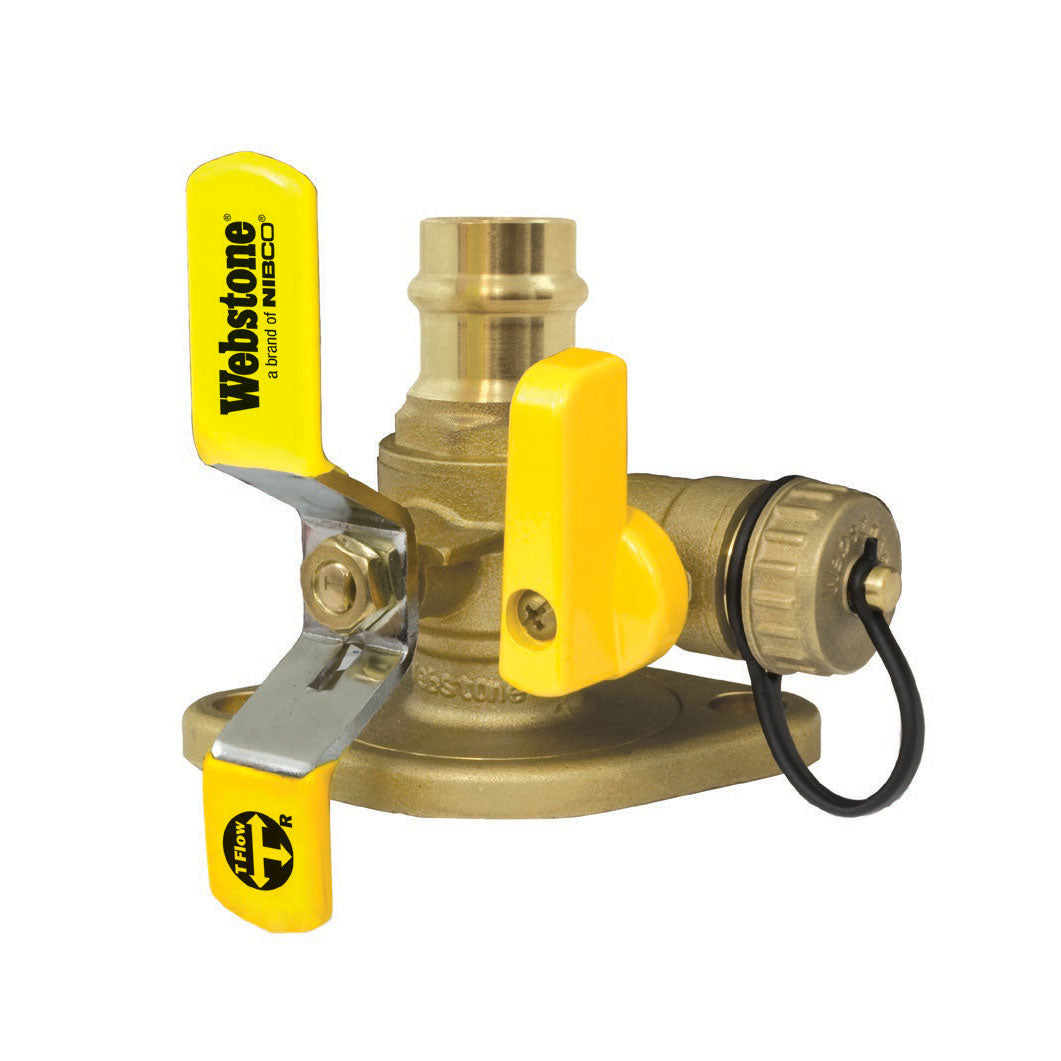

H-81417HV - 2" Press x Flange Isolator w/ Drain & Rotating Flange

In stock
SKU: H-81417HV
$155.13

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Webstone H-81417HV - 2" Press x Flange Isolator w/ Drain & Rotating Flange

Isolator w/ Rotating Flange & Multi-Function Drain, Full Port Forged Brass Uni-Flange Ball Valve, w/ Detachable Rotating Flange, Multi-Function Hi-Flow Hose Drain, Adjustable Packing Glands, Nuts & Bolts

Features

  • Nibco Webstone 8141 Series
  • Easily Isolates the Pump for Replacement
  • Prevents Electrolysis and Eliminates Galvanic Corrosion
  • Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
  • Flange Features a Conical Inlet to Minimize Turbulence

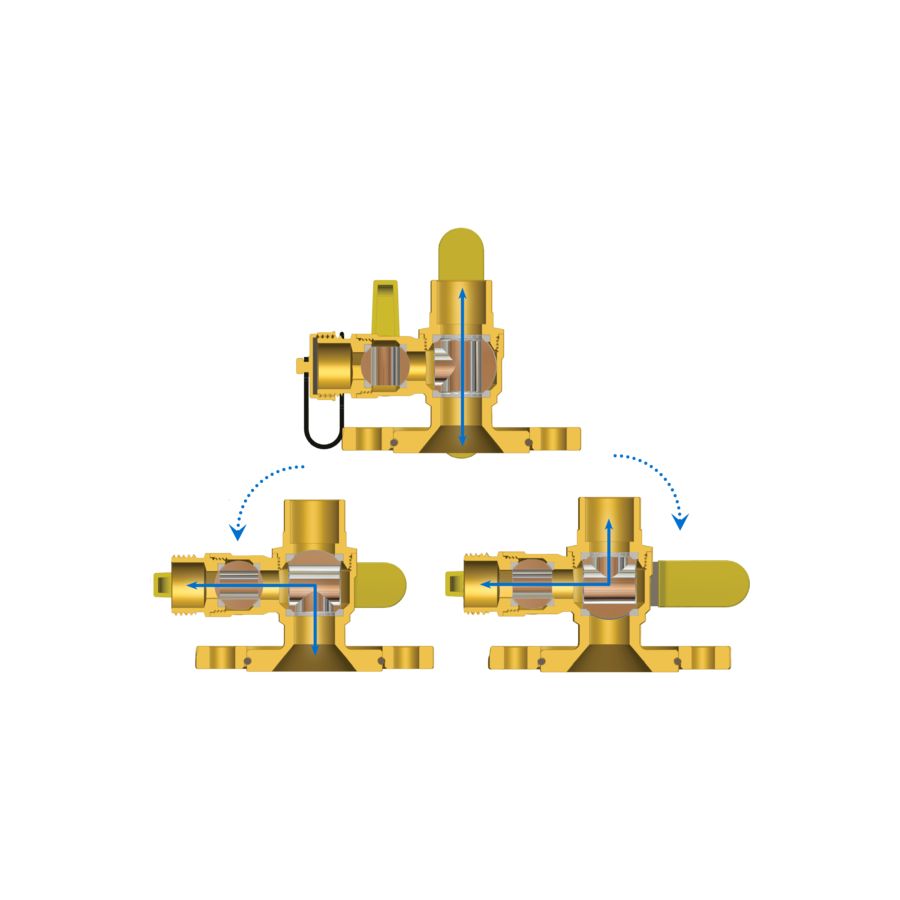

  • Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
  • Fits Virtually Any Standard Circulator Pump
  • Saves 63 Minutes
  • Replaces 8 Components
  • Eliminates 7 Leak Paths
  • Ball valve with integral spring check saves labor, space, and leak paths
  • Adjustable Packing Gland
  • Available in Lead-Free
  • Certified to NSF/ANSI 61 & 372
  • NSF/ANSI 14



PVZ5K00079
