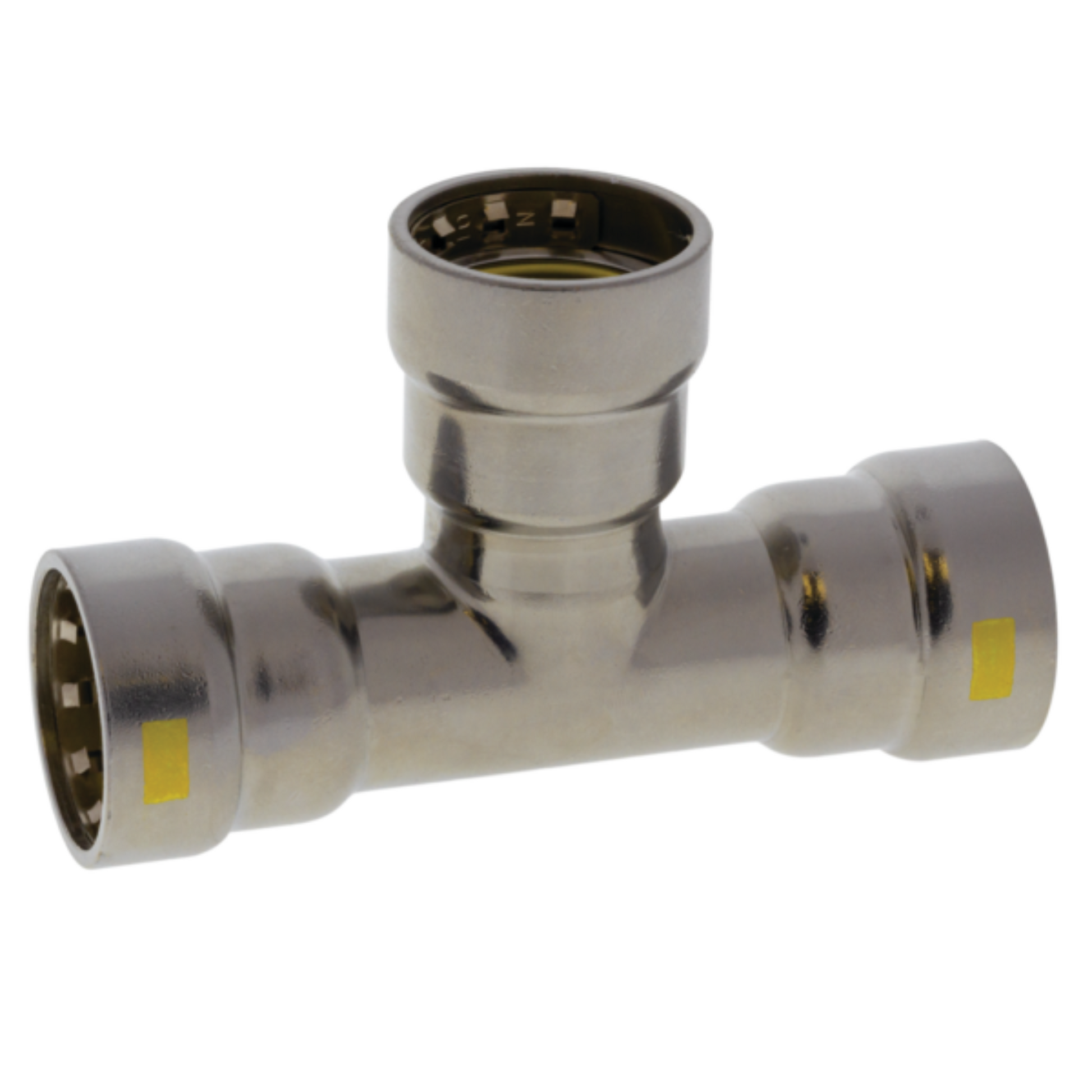

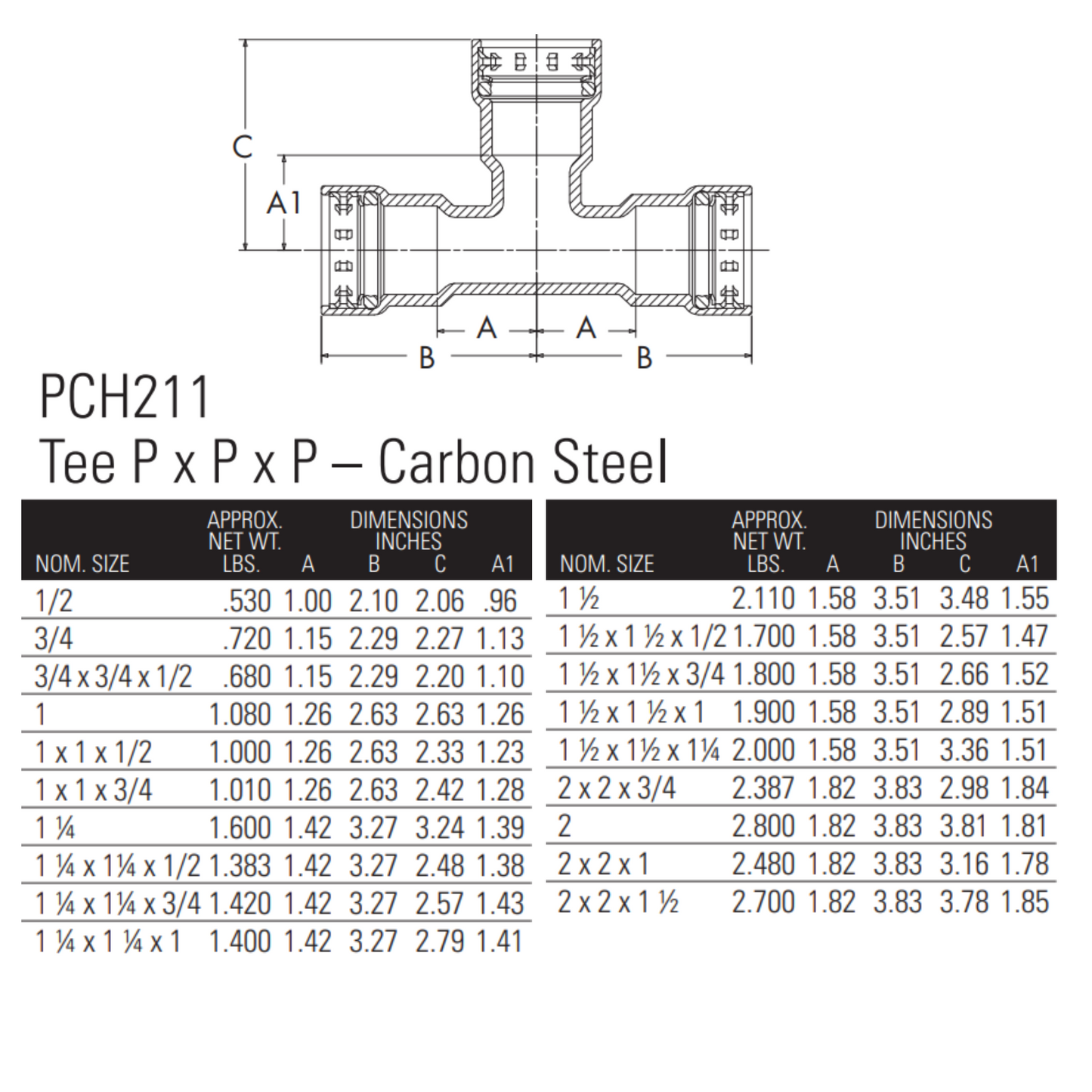

NIBCO 2097200HPC - 1/2" PCH211 BenchPressG Tee - Carbon Steel

NIBCO BenchPressG carbon steel fittings are available in 1/2” to 2” sizes and designed for use with Schedule 10 to 40 carbon steel pipe as defined by ASTM A53, A106, A135 and A795. NIBCO BenchPressG fittings allow fast and economical installation of residential, commercial, and industrial carbon steel piping systems.

A permanent and secure connection is provided by the stainless steel grip ring housed inside a corrosion resistant zinc-nickel coated carbon steel fitting. The black EPDM sealing element provides a permanent leak-proof connection. NIBCO’s leak detect design provides quick and easy identification of unpressed connections.

Applications

• BenchPressG fittings are specifically made for gas applications and are usually designed for use with steel pipes or stainless steel pipes.
• These fittings are often used in natural gas, propane, or other gas distribution systems.
• They are designed to comply with the stricter standards required for gas installations, ensuring durability and safety.

Features

• Operating Pressure Up to 200 PSI CWP (application depending)
• Temperature Range -20°F to 250°F (application depending)
• Fast and Easy to Use
• Permanent Connection
• Leak Detection of Unpressed Fittings

Approvals, Codes, & Certs

• IAPMO PS-117
• UL/ULC
• FM
• NFPA 13, 13D, 13R, 30, 30A, 31, 54, 58
• ASME B31 Code for Pressure Pipe
• IRC International Residential Code (ICC PMG)
• IMC International Mechanical Code (ICC PMG)
• UPC Uniform Plumbing Code
• UMC Uniform Mechanical Code
• Third-Party Certified to CSA (CSA ANSI LC4/CSA 6.32)
• Third-Party Certified to IAPMO (CSA ANSI LC 4/CSA 6.32)

PMPG000101
