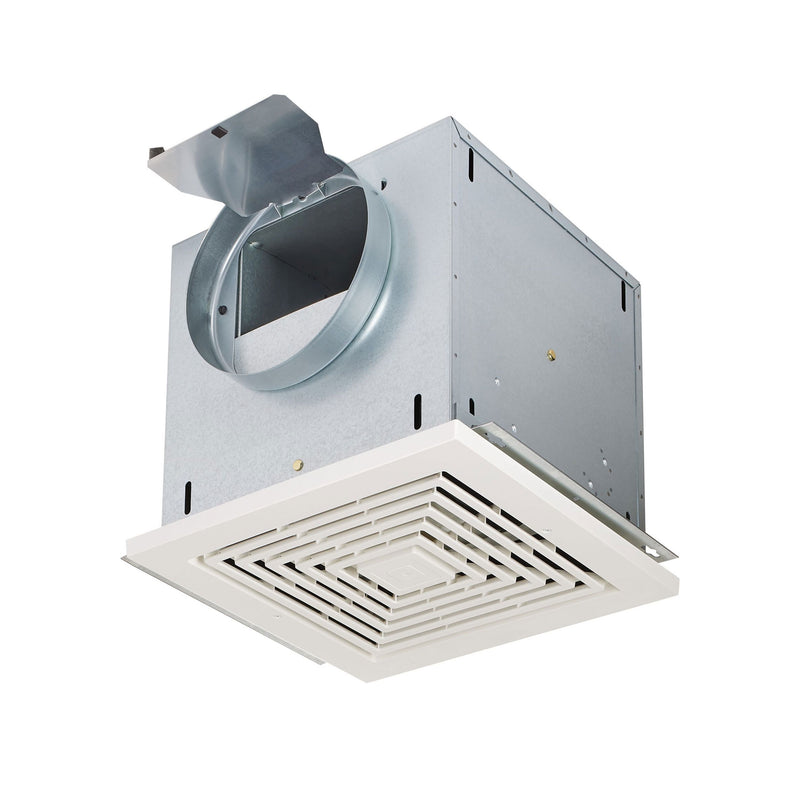

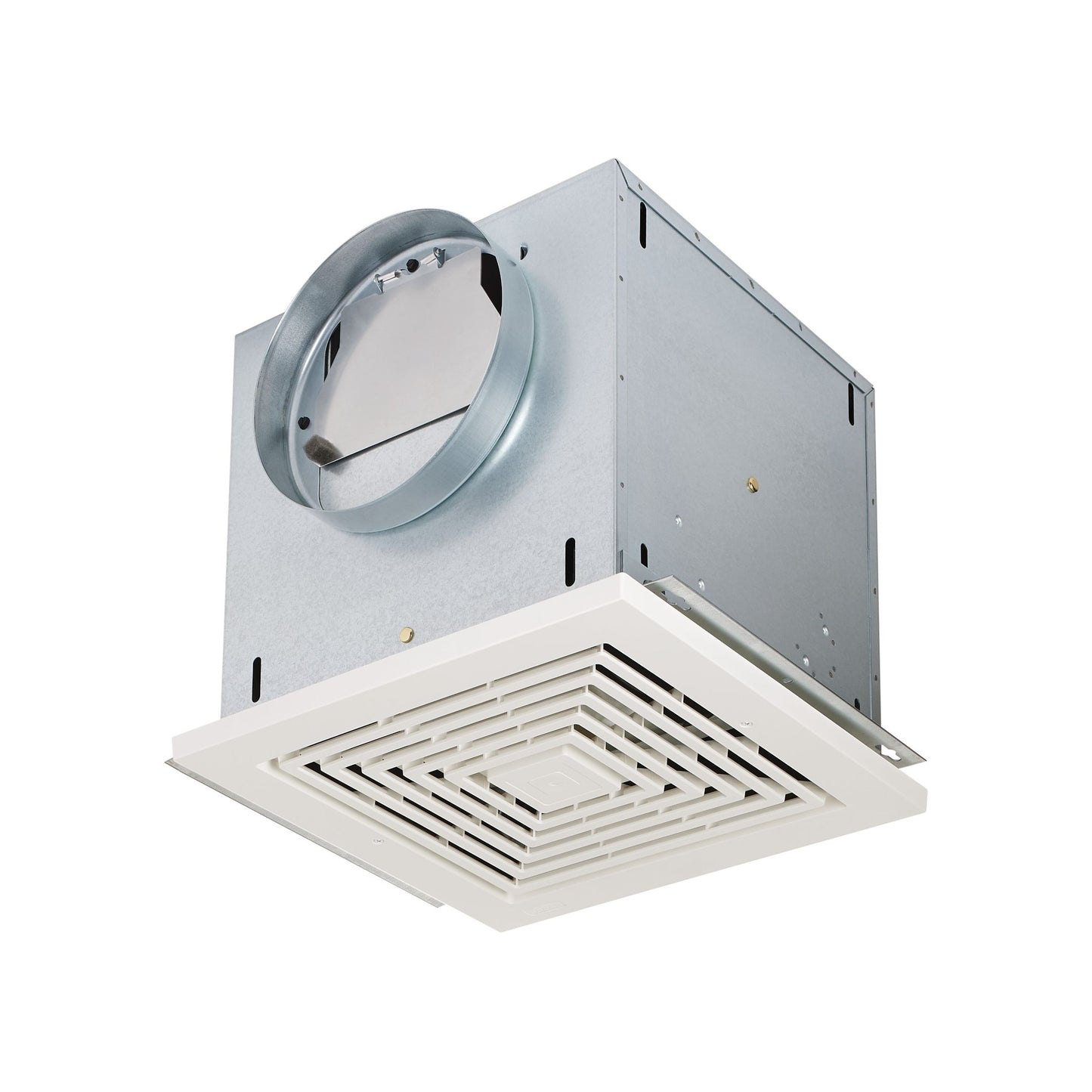

Broan L200E - High Capacity Light Commercial Ceiling Mount Ventilation Fan - 1.3 Sones - 230 CFM

Broan High-Capacity, Light Commercial ENERGY STAR certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.

Features

• 230 CFM, 1.3 sones ceiling mount commercial ventilation fan
• Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
• Duct Horizontally or vertically
• Standard 8" round ducting for all ENERGY STAR certified models
• ENERGY STAR certified
• AMCA and HVI air and sound tested
• Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
• Model 80L Variable speed control adjusts blower speed and sound level (available separately)
• Metal upgrade grille cover available (MG1)
• Radiation Damper available to prevent the spread of fire (Model RD1 sold separately)
• cULus Listed for safety and protection

Specifications

• CFM: 230
• Color Finish: White
• Duct Size: 8"
• ENERGY STAR certified: Yes

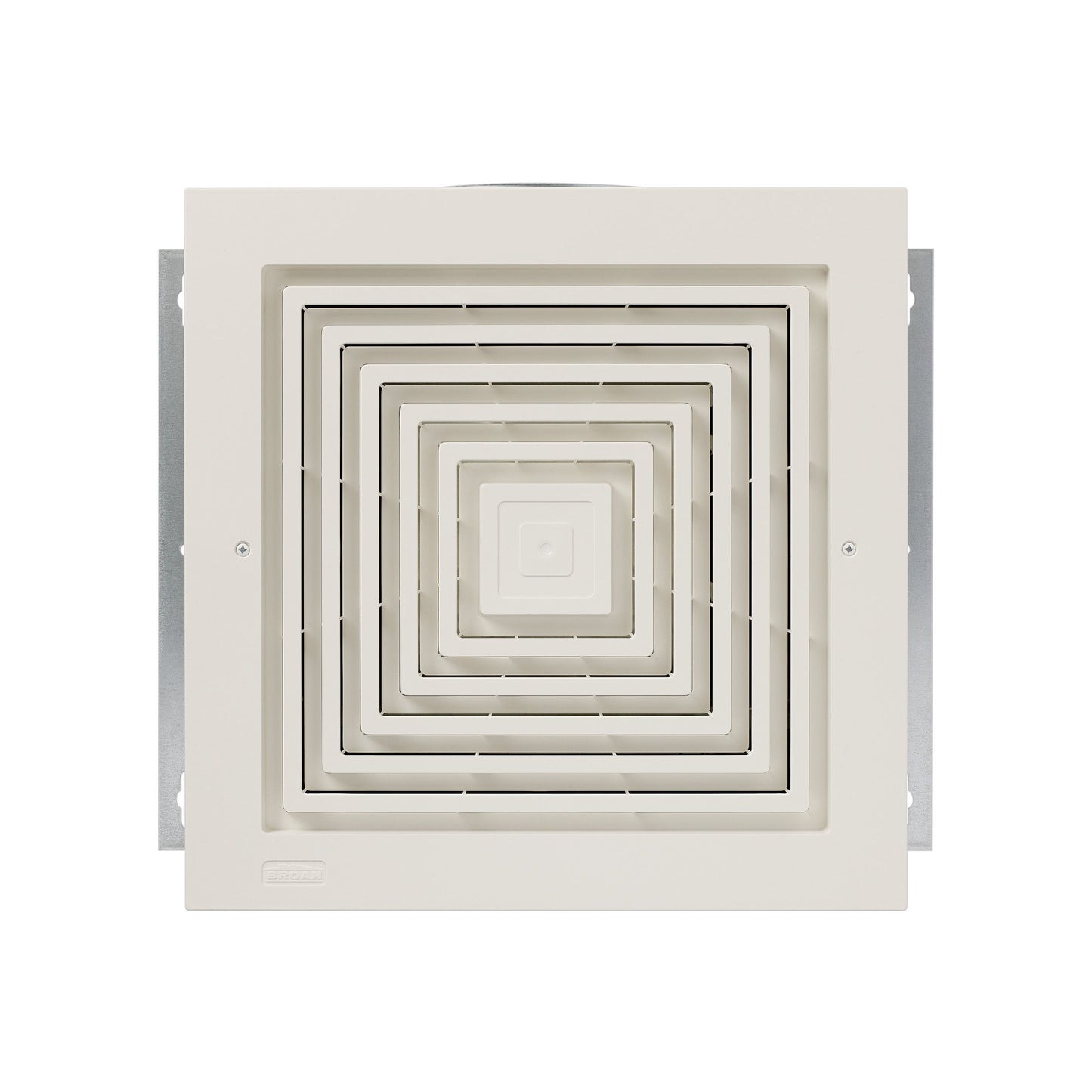

• Grille Length: 14"
• Grille Width: 14"

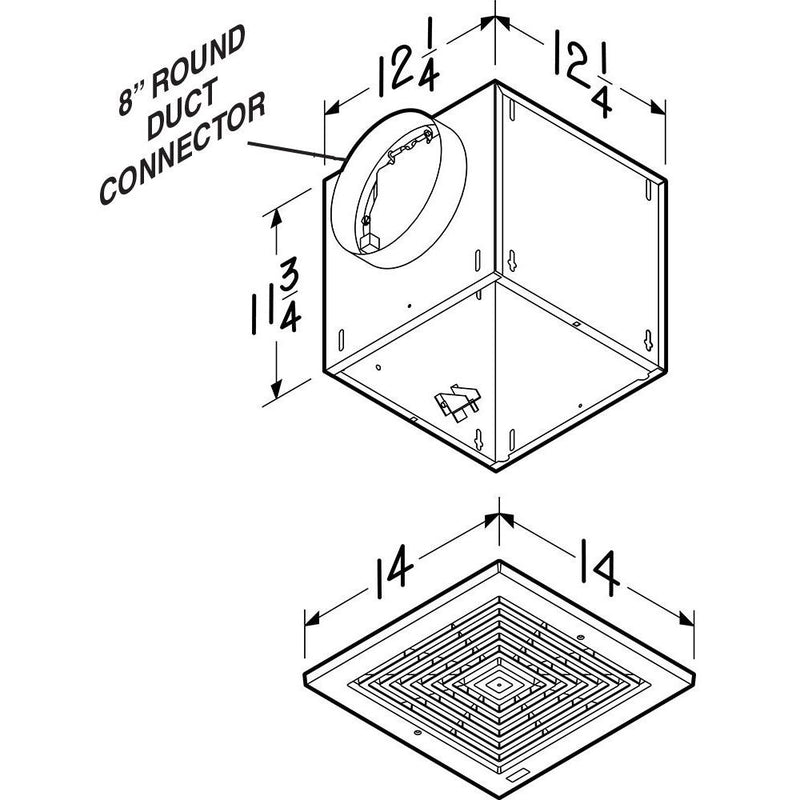

• Housing Dimensions: 12.25" x 12.25" x 11.75"
• Sound Level (Sones): 1.3
