Smith-Blair

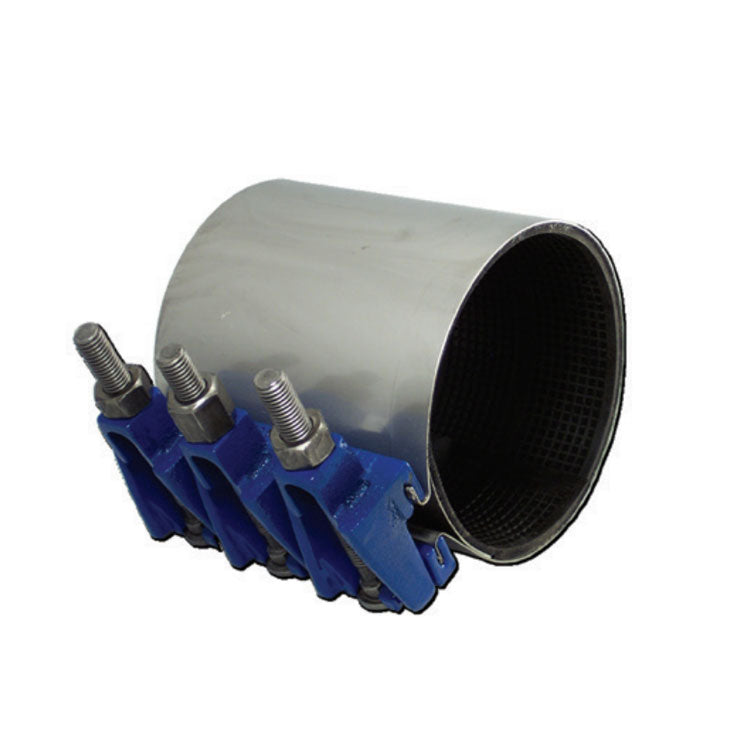

226 Full Circle Single Band Repair Clamp - 2.70-3.00" OD x 12-1/2"

In stock
SKU: 226-00027512-000
$157.32

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Smith-Blair 226-00027512-000 226 Full Circle Single Band Repair Clamp - 2.70-3.00" OD x 12-1/2"

Smith-Blair Full Circle Repair Clamps consist of one or more stainless steel band sections to which cast or fabricated lugs are securely attached. The lugs accommodate bolts and nuts when mounting the clamp on pipe. Full Circle Repair Clamps have a full encirclement, tapered, overlapping, gridded gasket with a flush mounted, bonded, stainless steel bridge plate to span the band opening between the lugs. This provides a full circumferential seal on the pipe.

Features

  • Works on Cast Iron, Ductile Iron, Steel, Asbestos Cement, Copper, Aluminum, PVC, HDPE, Fiberglass and other pipe types
  • Stainless Steel bands
  • Working pressure up to 300 PSI
  • Nominal temperature range -20 to 180 degrees F
  • Removable lugs to allow installation in tight spaces
  • May be used to join plain end pipe of the same diameter
  • Standard widths through 30"
  • 360 Degree gasket seal
  • Flexi-Coat Epoxy Finish for corrosion resistance
  • Range up to .40" in single band
  • Drop-in bolts for easier installation
