Milwaukee 2674-20 Operator's Manual

M18 Short Throw Press Tool Kit w/ Viega PureFlow Jaws

Milwaukee's M18 Short Throw Press Tool with Viega PureFlow Jaws is the fastest press tool on the market, pressing 40% faster than the competition providing you with the fastest, effortless installs from branch to fixture. The press tool is designed for one-handed use and is an easy-to-use solution compared to hand tools. Spring-loaded jaws grip the ring giving you precise alignment on the fitting, while Auto Cycle ensures a full press every time delivering the added assurance of quality connections. The plumbing press tool provides force optimized for residential installs and eliminates the downtime caused by calibration intervals, reducing your cost of ownership and maximizing productivity for the residential installer. The cordless press tool is powered by our MILWAUKEE® M18 REDLITHIUM battery, allowing you to Cut, Fasten, and Connect on One System.

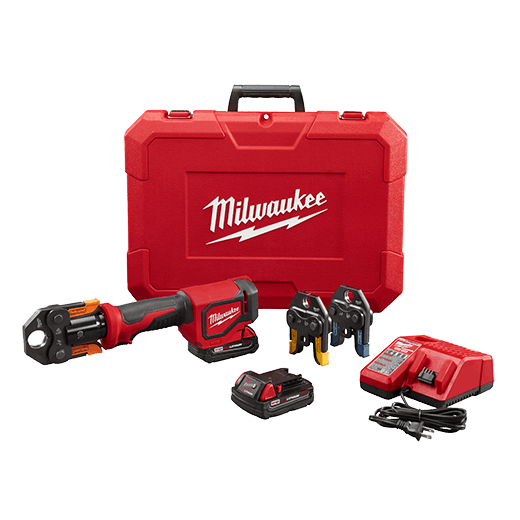

Includes

• (1) M18 Short Throw Press Tool
• (2) M18 REDLITHIUM CP2.0 Battery(48-11-1820)
• (1) M18 & M12 Multi-Voltage Charger(48-59-1812)
• (1) M18 1/2" Viega PureFlow Jaw for M18 Short Throw Press Tool(49-16-2631P)
• (1) M18 3/4" Viega PureFlow Jaw for M18 Short Throw Press Tool(49-16-2633P)
• (1) M18 1" Viega PureFlow Jaw for M18 Short Throw Press Tool(49-16-2634P)
• (1) Carrying Case

Key Features

• Designed for One-Handed Use
• Auto-Cycle ensures full press every time
• 40% Faster Press
• Spring loaded jaw grips ring for precise alignment
• No calibration interval
• Optimized for residential installs
• Green LED indicator shows complete press cycle
• Pre-press battery check
• Crimps all F1807 and F2159 rings up to 1 in.
• 5 year tool warranty, 2 year jaw warranty

Specifications

• Height: 3.00"
• Length: 13.5"
• Tool Warranty: 5 Years
• Weight: 4.8 lbs
• Width: 3.80"
• Power Source: Cordless
• Approx Cycle Time: 3 Seconds
• Battery: M18 REDLITHIUM™
• Capacity: Up to 1"
• Jaw Warranty: 2 Year
• Auto Cycle: Built-in
• Battery Warranty: 3 Year
• Battery System: M18
• Voltage: 18
