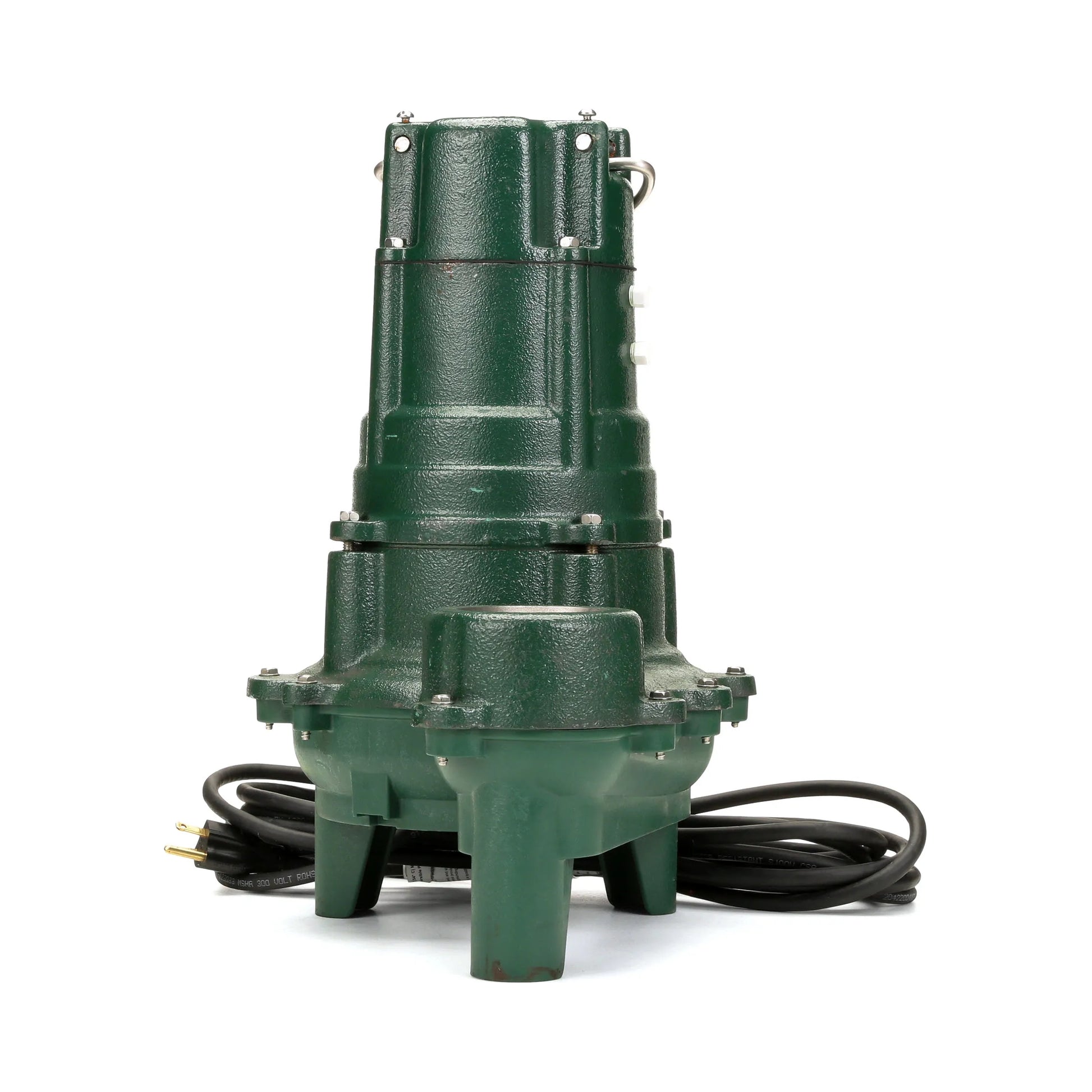

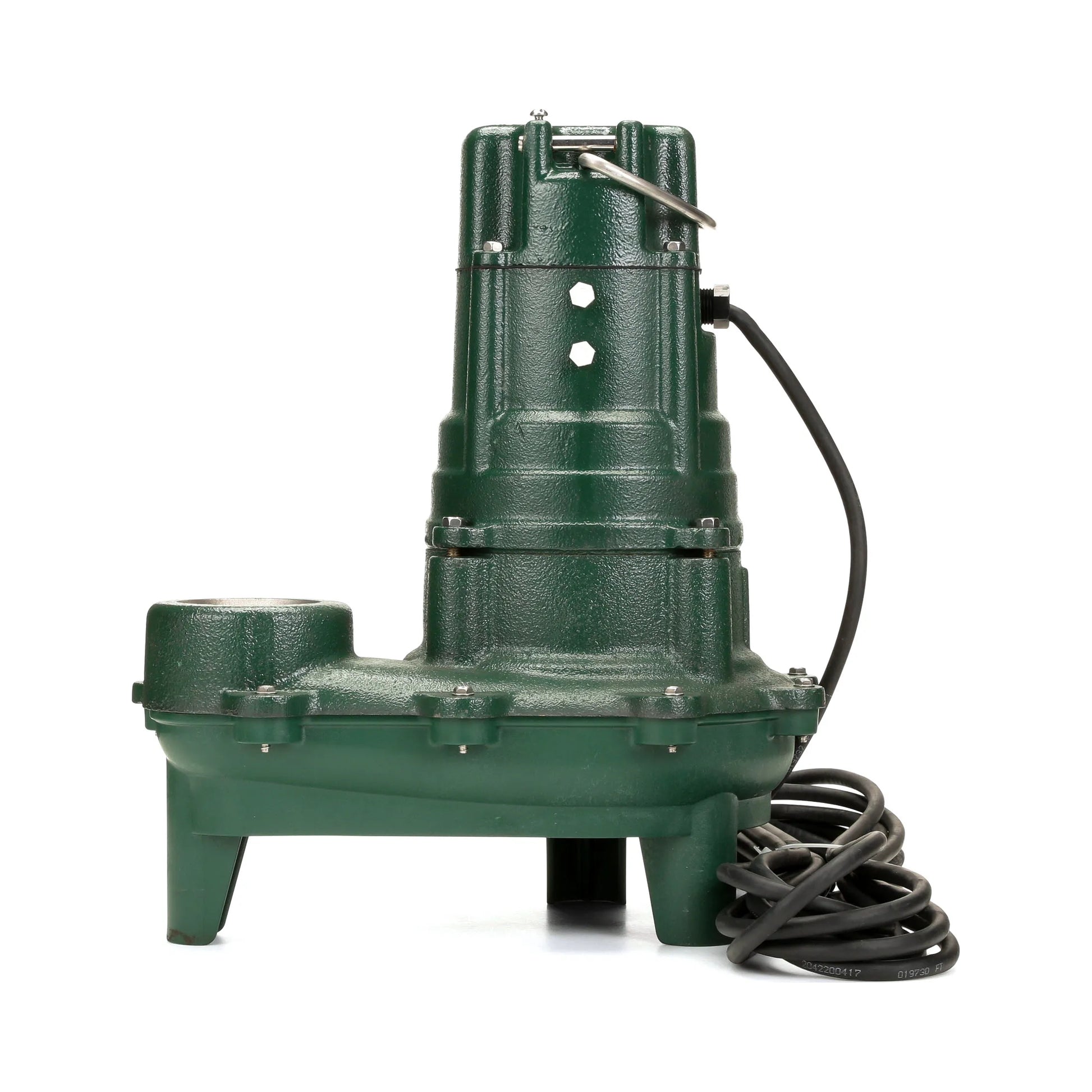

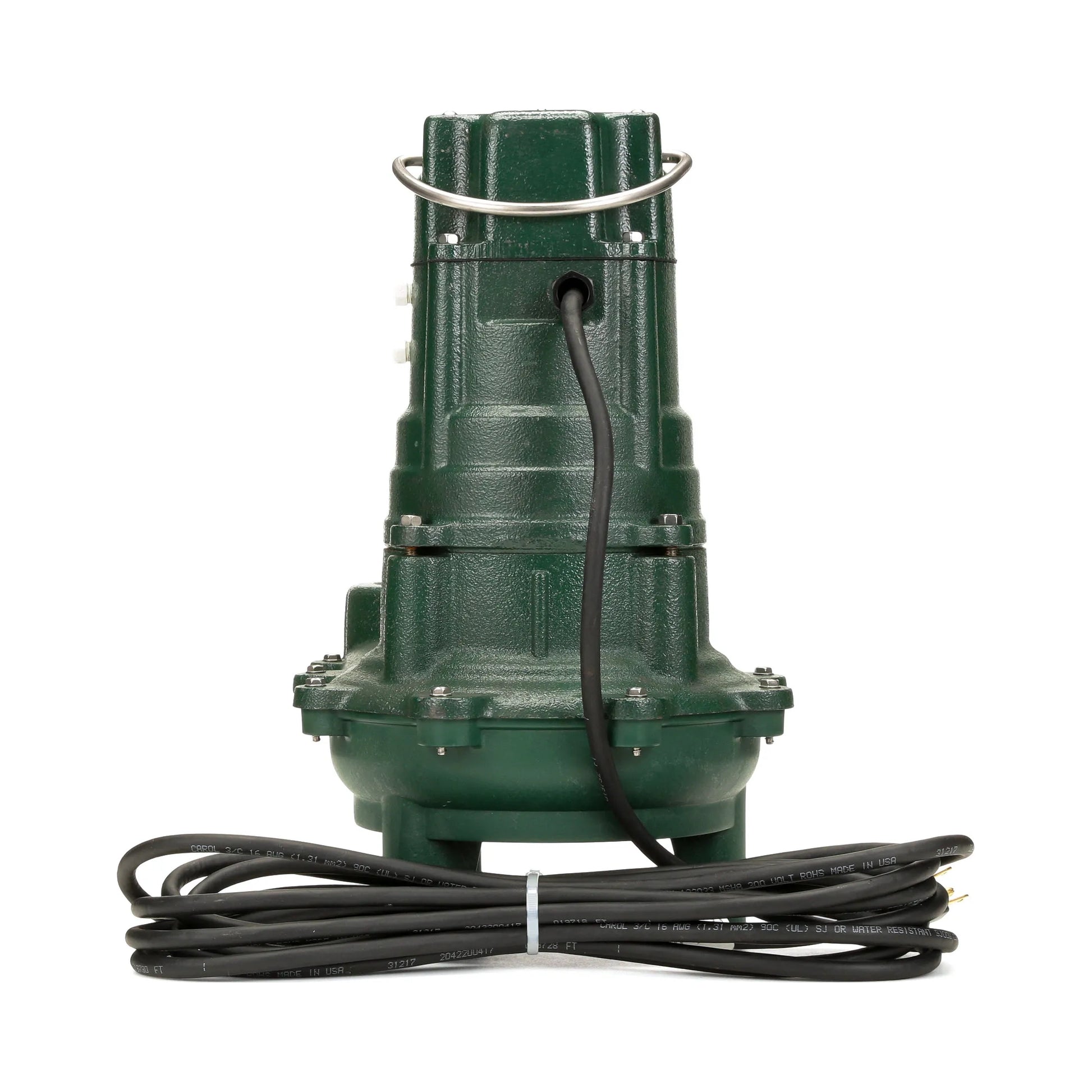

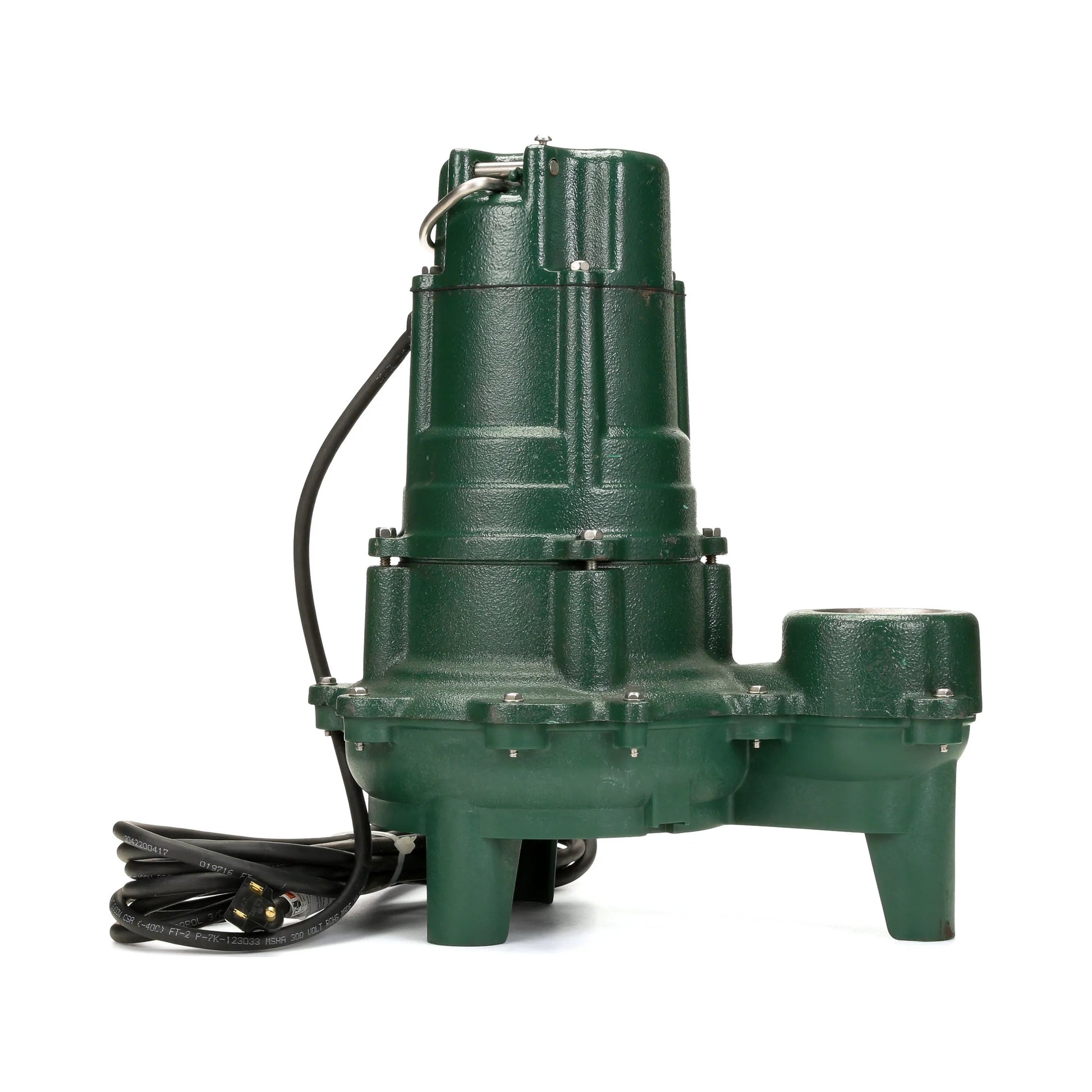

Zoeller 270-0002 - N270 Series Cast Iron Sewage Pump, 115V, 1 HP

Zoeller 270 Series Sewage Pump Features

• Durable, ASTM Class 25 cast iron motor housing cover and pump housing
• Engineered plastic base on model 270
• Not affected by materials normally found in drainage and sewage sumps
• Stainless steel screws, bolts and handle
• Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
• Neoprene square ring & gasket
• Carbon and ceramic shaft seal
• 4270 series double seal pump available
• Cast iron base on 4270
• Upper sleeve bearing and lower ball bearing running in a bath of oil
• Passes 2” (50 mm) spherical solids
• 2” NPT discharge
• Corrosion-resistant, powder coated epoxy finish
• Models available packaged with a piggyback variable level float switch
• Simplex and duplex systems available
• Packaged systems available
