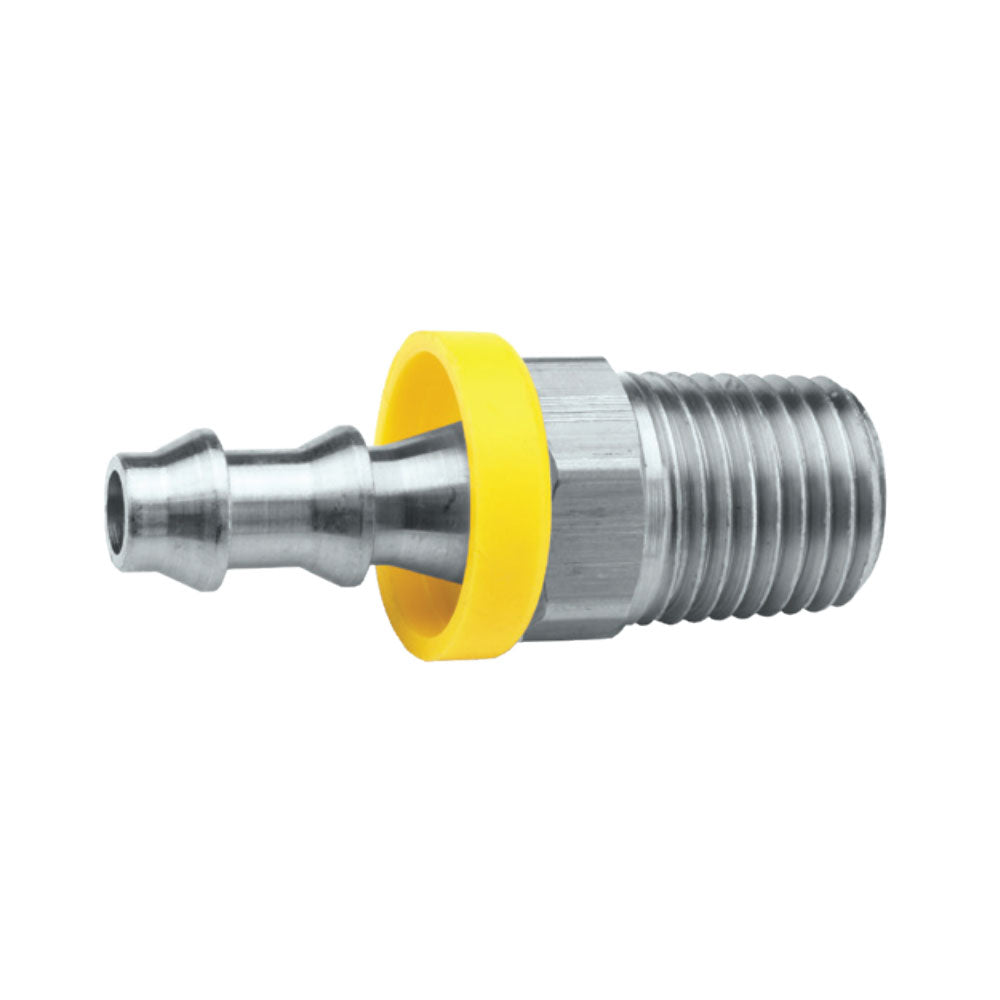

Dixon Valve 2721212SS - 3/4" Stainless Steel Push-on Hose Barb Fitting - Male NPTF x Hose Barb

Features

• Material: 303 Stainless Steel
• Component Material: Yellow Plastic Cap
• Construction: Dryseal
• Male Thread: NPT
• Male Thread Size: 3/4"-14
• Length: 2.55"
• Hose ID: 3/4"
• Hex: 1-1/16"
• Temperature Range: -40 to 150 degrees F
• Pressure Rating: 350 PSI
• Weight: 0.194 lbs

Assembly Instructions

• Trim hose end with smooth square cut.
• Lubricate either push-on fitting, hose or both.
• Insert push-on fitting into hose until first barb is in hose.
• Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.

Disassembly Instructions

• Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
• With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
