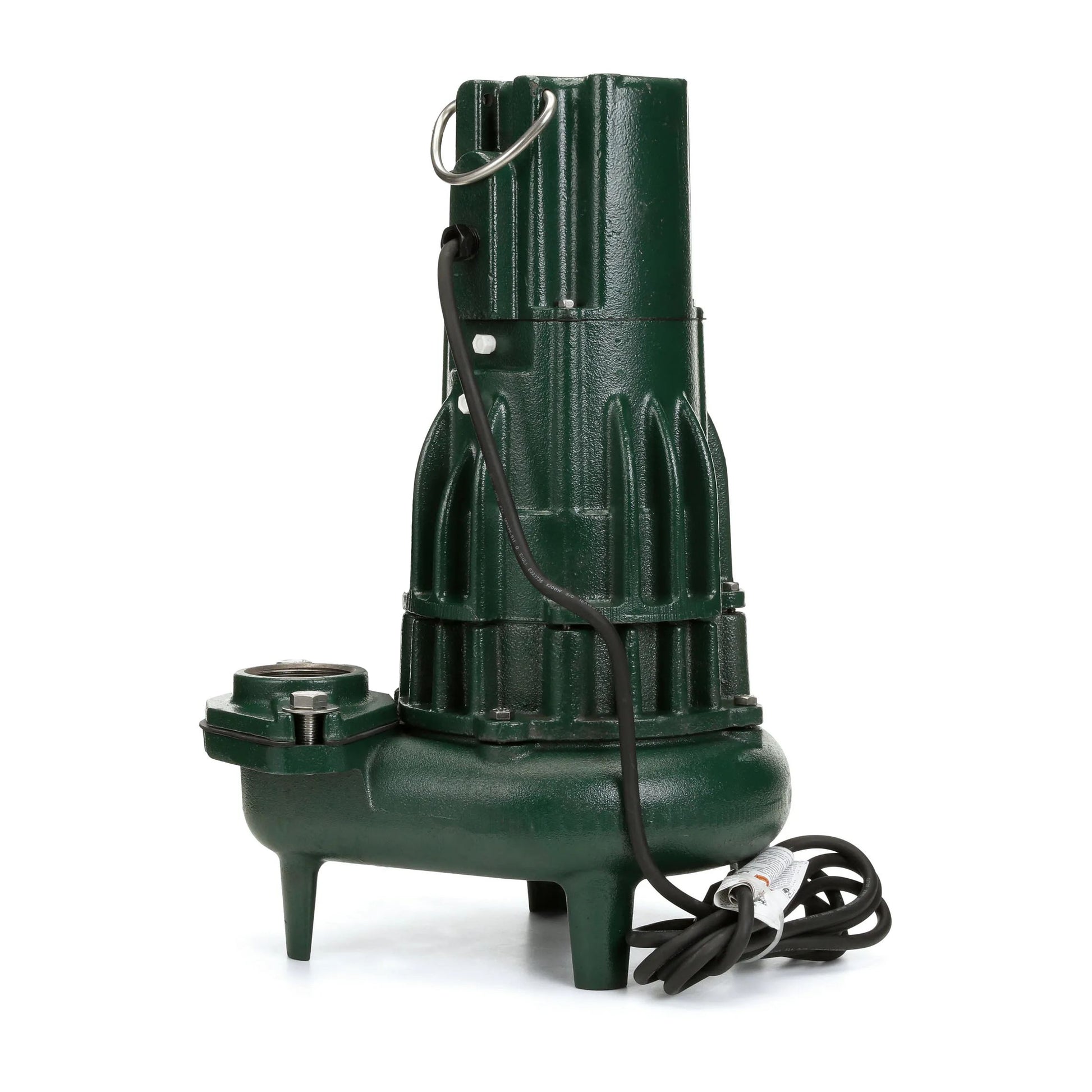

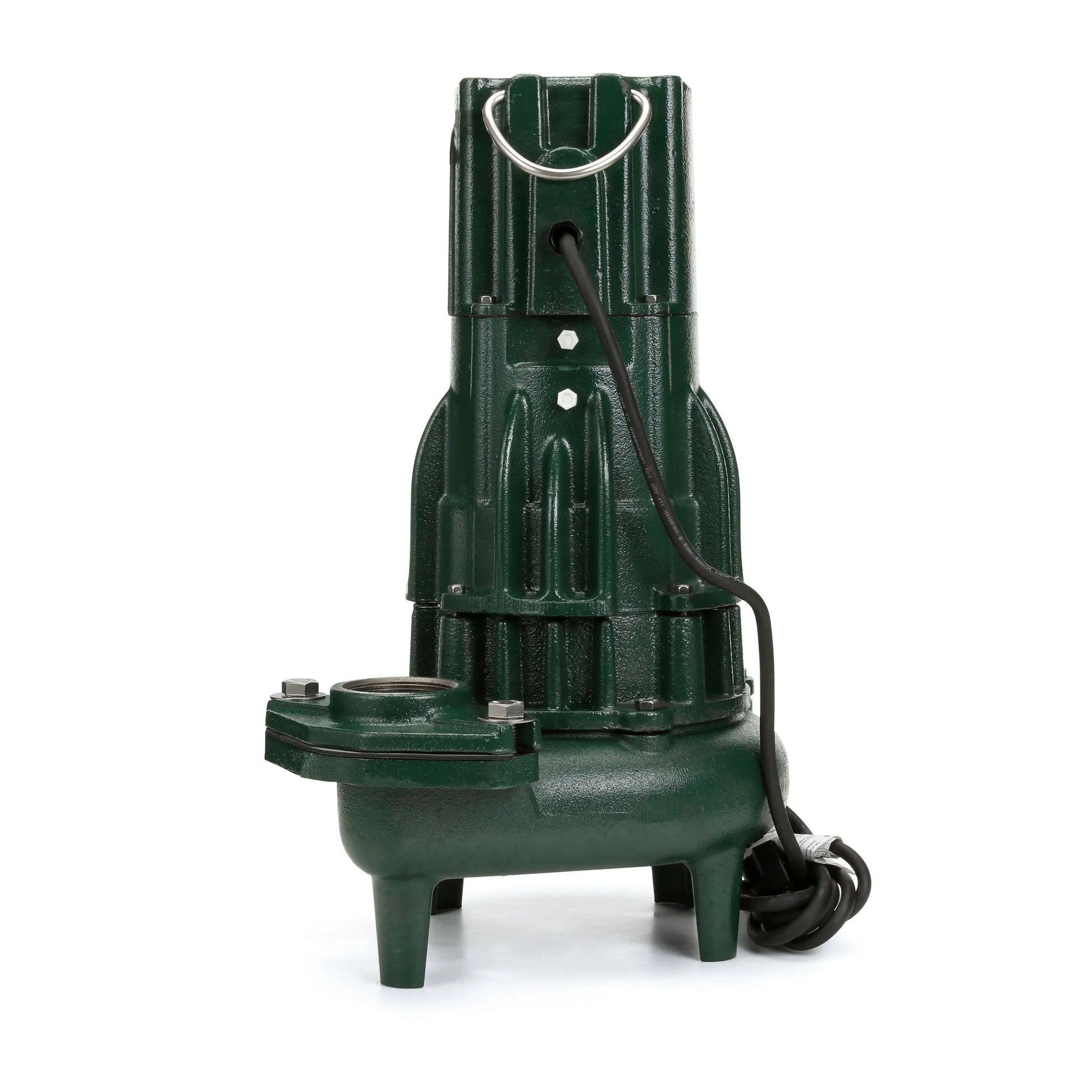

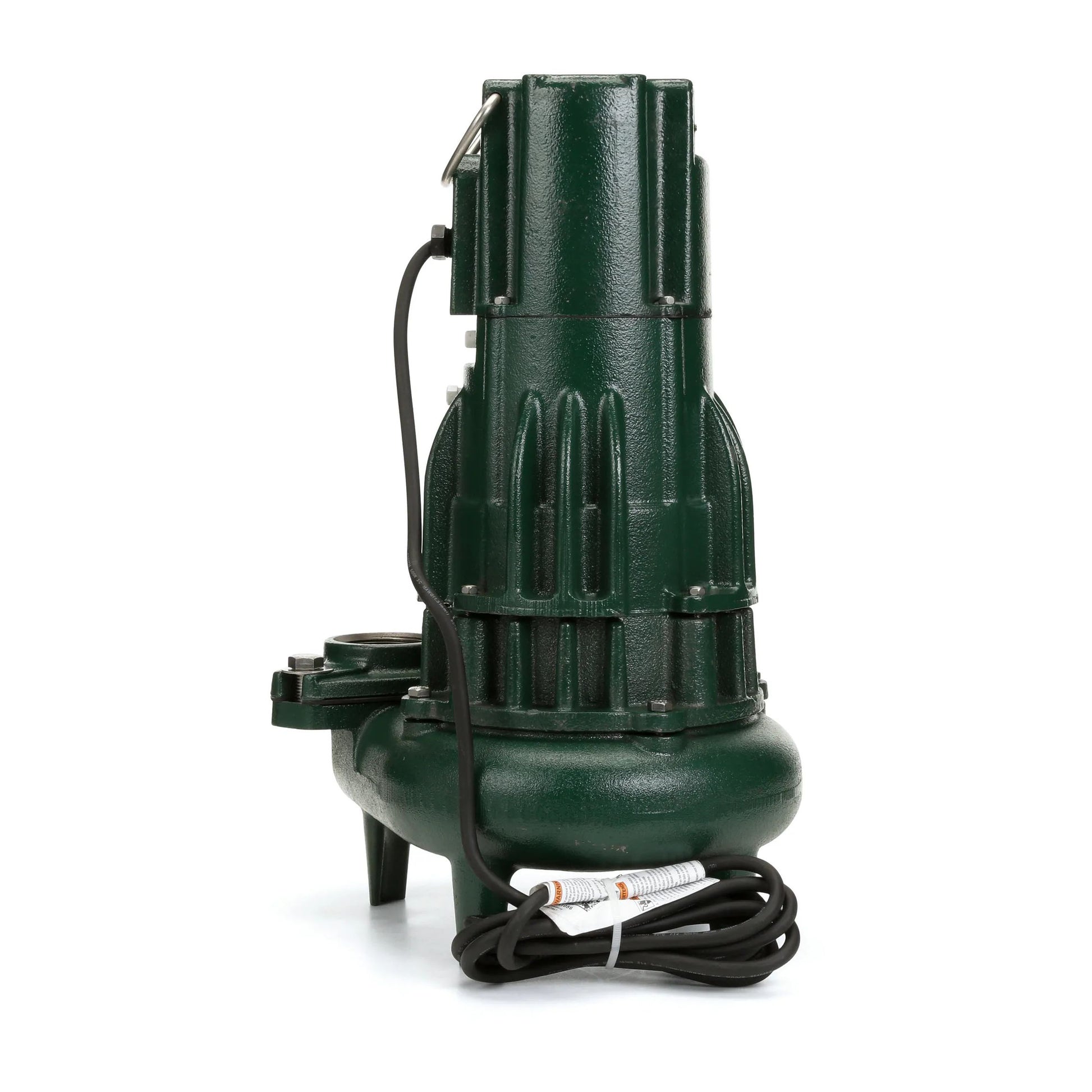

Zoeller 282-0002 115-Volt 1/2 Horse Power Model N282 Waste-Mate Non-Automatic Cast Iron Single Phase Submersible Sewage/Effluent Pump

Features

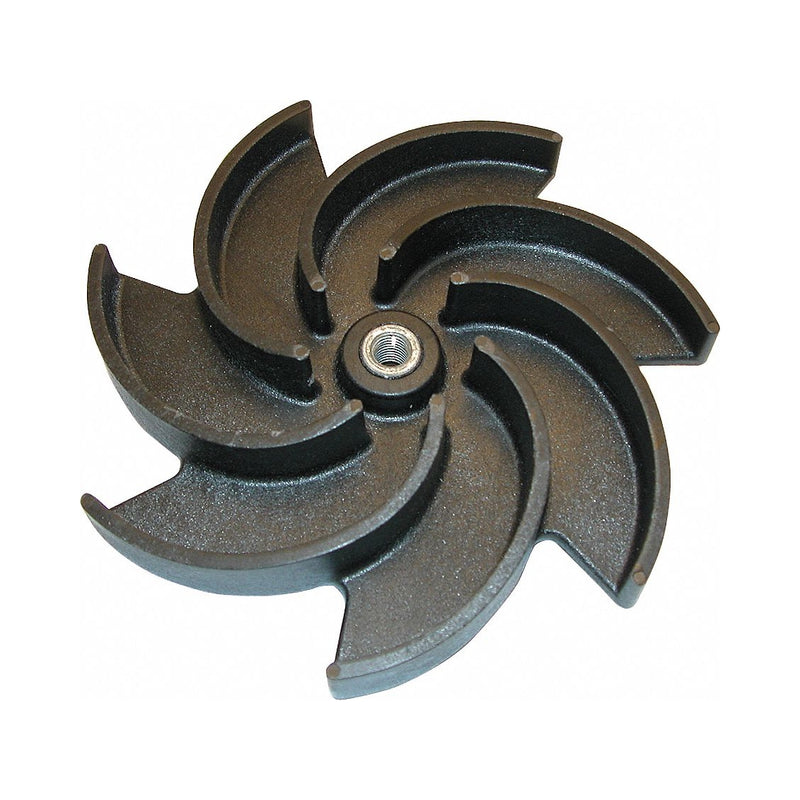

• Durable, cast iron constructed switch case, motor and pump housing, base and impeller
• No sheet metal parts to rust or corrode
• All cast iron class 30 30000# tensile strength
• Stainless steel screws, bolts, float rod, handle, guard and arm and seal assembly
• Shaft seal - Carbon and ceramic rotary face seal, with stainless steel wetted parts
• SAE 1117 carbon steel motor shaft (single seal models)
• Upper and lower ball bearing running in bath of oil
• Maximum temperature for sewage or dewatering: 130 °F (54 °C)
• Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor (1 Ph and auto 3 Ph)
• All models available in 2” or 3” discharge
• All models pass 2” (50 mm) spherical solids.
• Automatic units available with float-operated, submersible mechanical switch**
• Corrosion-resistant, powder coated epoxy finish
• On point: 15-1/4” (38.7 cm)
• Off point: 5-1/4” (13 cm)
• Major width: 13-9/16” (34.4 cm) (single seal pumps)
• Major height: 19-9/16” (49.7 cm) (single seal pumps)
• Automatic or non-automatic with single seal
• Non-automatic with double seals
• 1 or 3 Ph motors available
• See selection chart for specifications or specific models

Model 282 Specific Features

• Protects motor from leaks
• Improved bearing lubrication
• Helps eliminate seal and bearing damage from dry runs
• 416 stainless steel motor shaft
• Major width: 13-9/16" (34.4 cm)
• Major height: 20-11/16" (52.5 cm)
