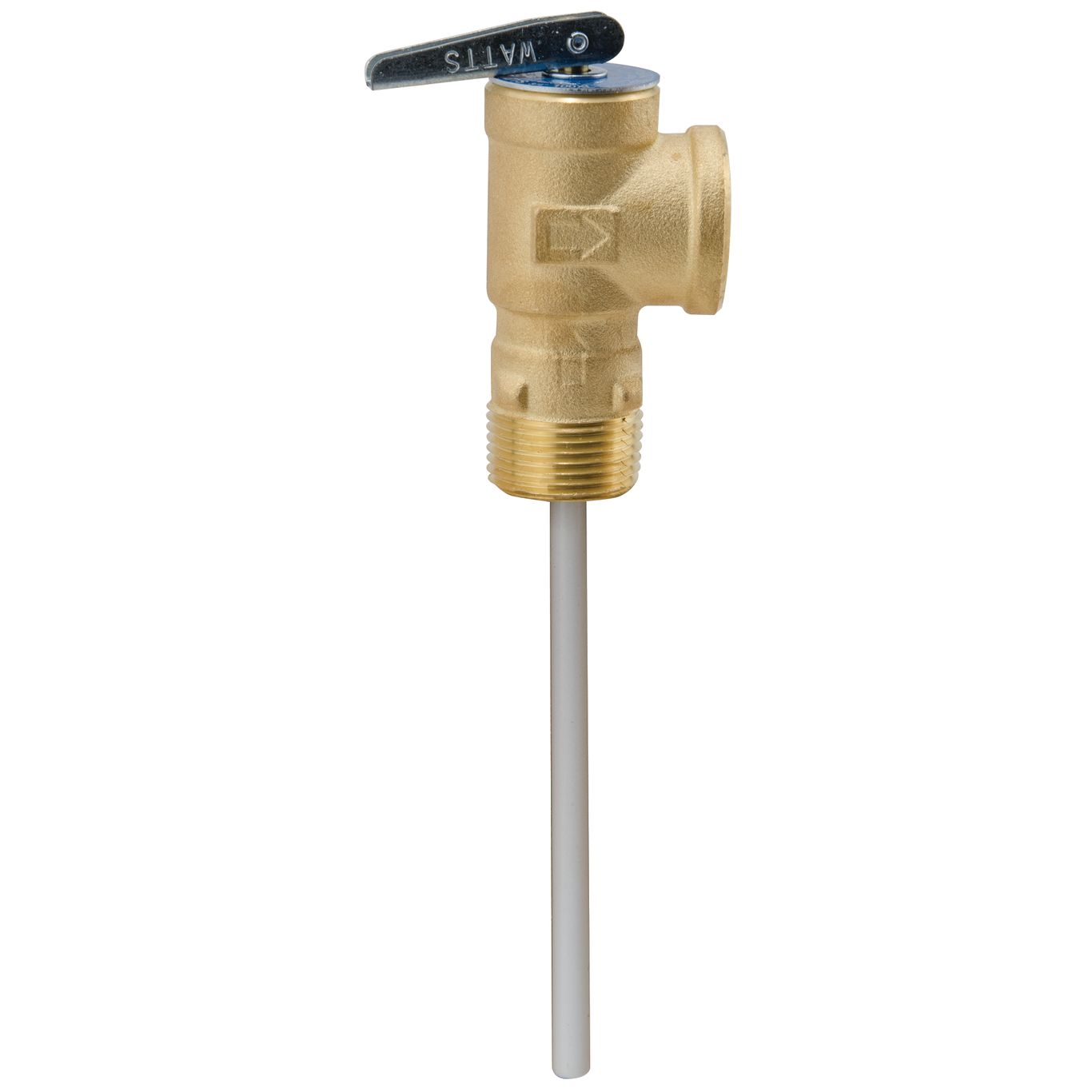

0066100 - 3/4" Brass Self Closing Temperature And Pressure Relief Valve, 150 psi
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
3/4 In Brass Self Closing Temperature And Pressure Relief Valve, 150 psi
This 3/4 inch temperature and pressure relief valve is used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. This valve is ASME rated and CSA listed. Temperature relief is 210 degree F (99 degree C),emperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 inch (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature relief is 210 degree F (99 degree C), Pressure relief range is 75 to 150psi (5.2 to 10.3 bar). Standard pressure settings are 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Features
- Brass body construction
- Required safety device on all water heaters
- Temperature relief is 210 degree F (99 degree C)
- Prevents water heater from blowing up
- Includes test lever and stainless steel spring
- ANSI Z21.22 certified
- Features unique thermostat with special thermo-bonded coating
- ASME rated, CSA Listed
- Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
