0274513 - 3/4" Bronze Boiler Pressure Relief Valve, 50 psi
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Specification Sheet3/4 In Bronze Boiler Pressure Relief Valve, 50 psi

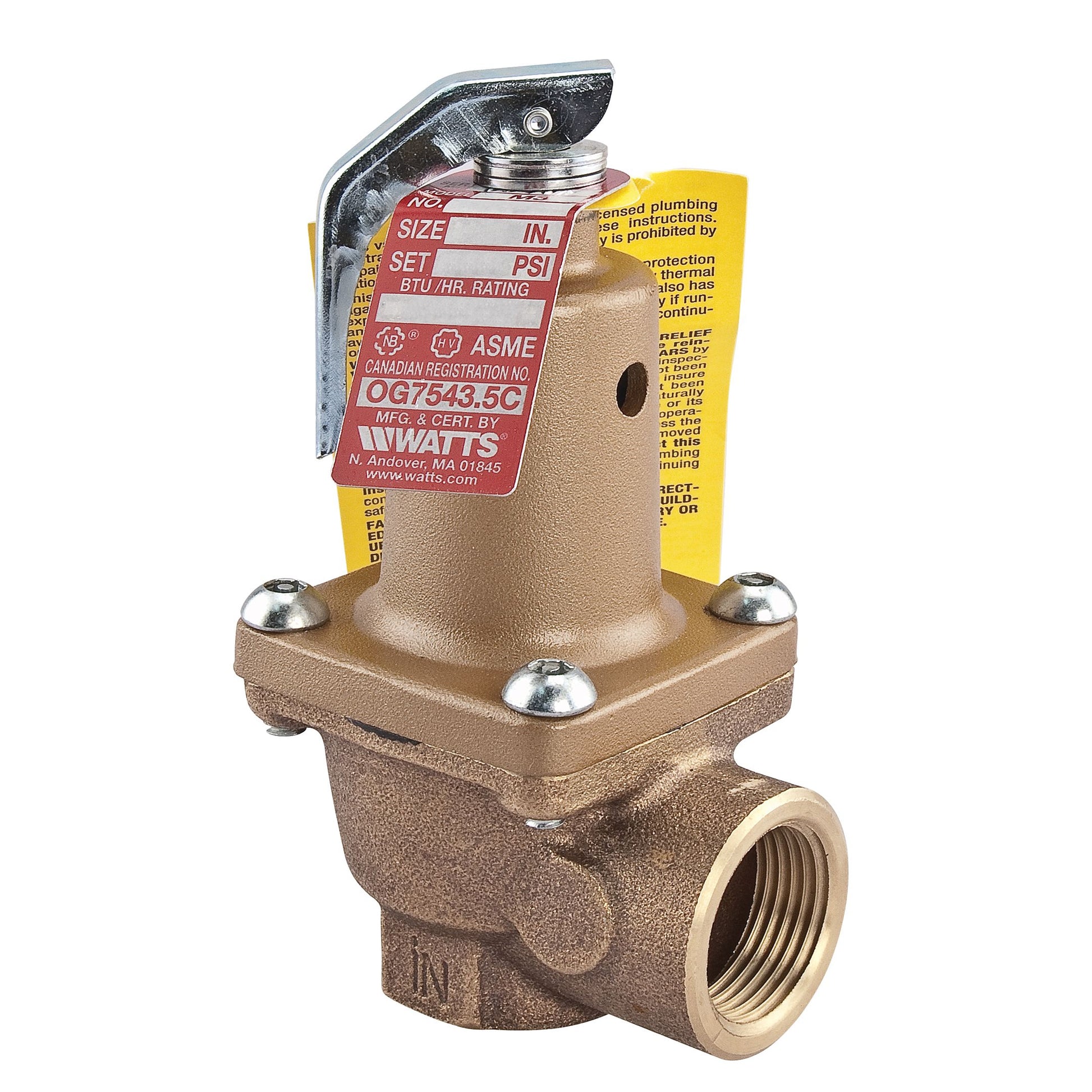

This 3/4 inch boiler pressure relief valve is used in hot water heating and domestic supply boiler applications to protect against excessive pressures on all types of hot water heating supply boiler equipment. It consists of a bronze body construction with NPT threaded female inlet and NPT threaded female outlet (drain) connections, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It resists corrosive water conditions, sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief, not as an operating control. The pressure relief is set at 50 psi (344.7 kPa) with corresponding high pressure ratings up to 950,000 BTU/hr.
Features
- Spring loaded
- Bronze body
- Automatic reseating
- Non mechanical seat-to-disc alignment will not stick or freeze
PVZ1T04926
