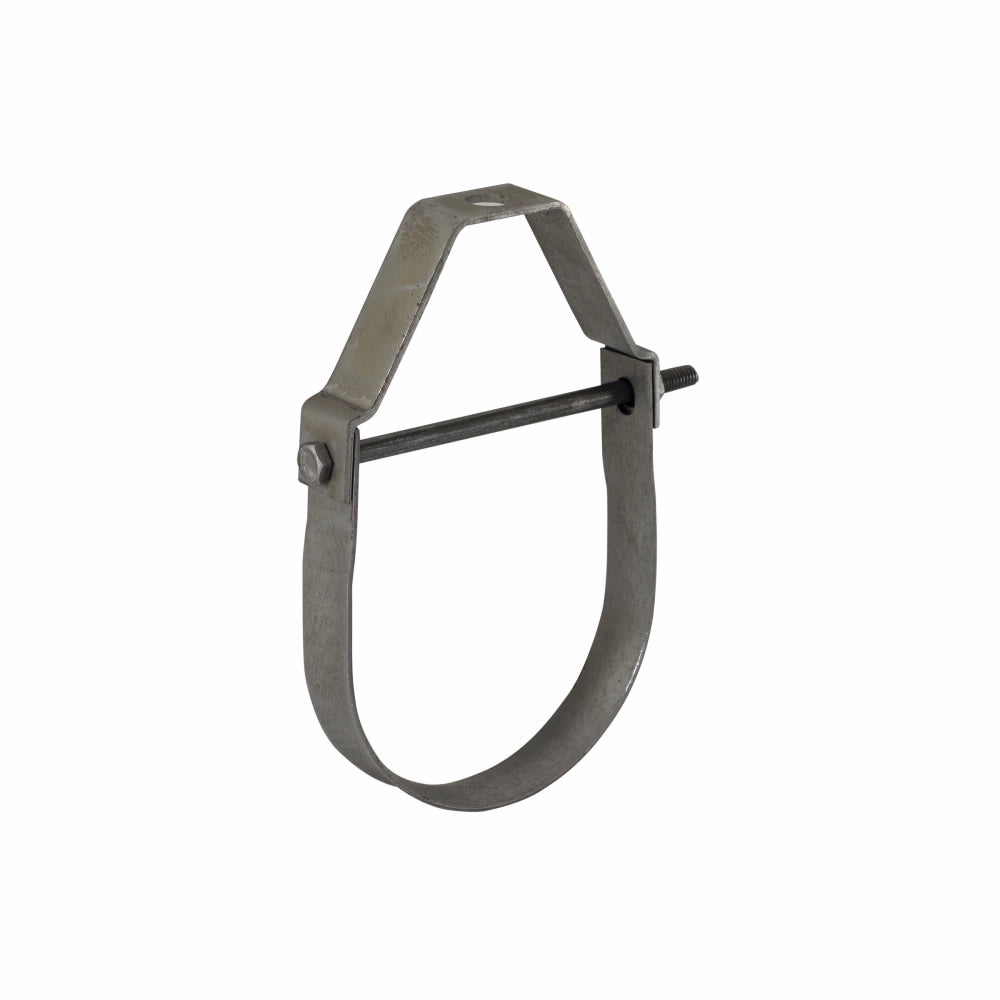

B3104 Specification SheetB-Line B3104-3/4 - 3/4" Light-Duty Clevis Hanger - CL710
Eaton B-Line series light duty clevis hanger, 0.8750" H x 2.75" L x 2.25" W, Steel, Plain, 0.75" max pipe size. Recommended for the suspension of light stationary pipe allowing for vertical adjustment.
Features
- Size Range: 1/2" (15mm) to 4" (100mm) pipe
- Material: Steel
- Approvals: Underwriter's Laboratories Listed in the USA (UL) and Canada (cUL) for sizes 3/4" (20mm) thru 4" (100mm).
- Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 12 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 1.
Specifications
- Nominal Pipe Size: 3/4"
- Rod Size: 3/8"
- Product Length: 2.75"
- Product Height: 0.875"
- Product Weight: 0.22 lb
