Submittal SheetUponor F4340750 - 3/4" AquaPEX White Coil with Blue Print - 100 Ft
Uponor AquaPEX White, Uponor AquaPEX White with Red Print, and Uponor AquaPEX White with Blue Print is piping approved for use in hot and cold potable-water distribution as well as hydronic heating or cooling applications where the system contains no ferrous corrodible components or where any ferrous components are isolated from the pipe. Uponor AquaPEX White is approved for use in AquaSAFE residential fire safety systems. (Note that Uponor AquaPEX White with Red Print and Uponor AquaPEX White with Blue Print pipe is not approved for use in AquaSAFE systems.) Uponor AquaPEX Reclaimed Water (purple) piping is approved for use in reclaimed-water (graywater) applications.
Features

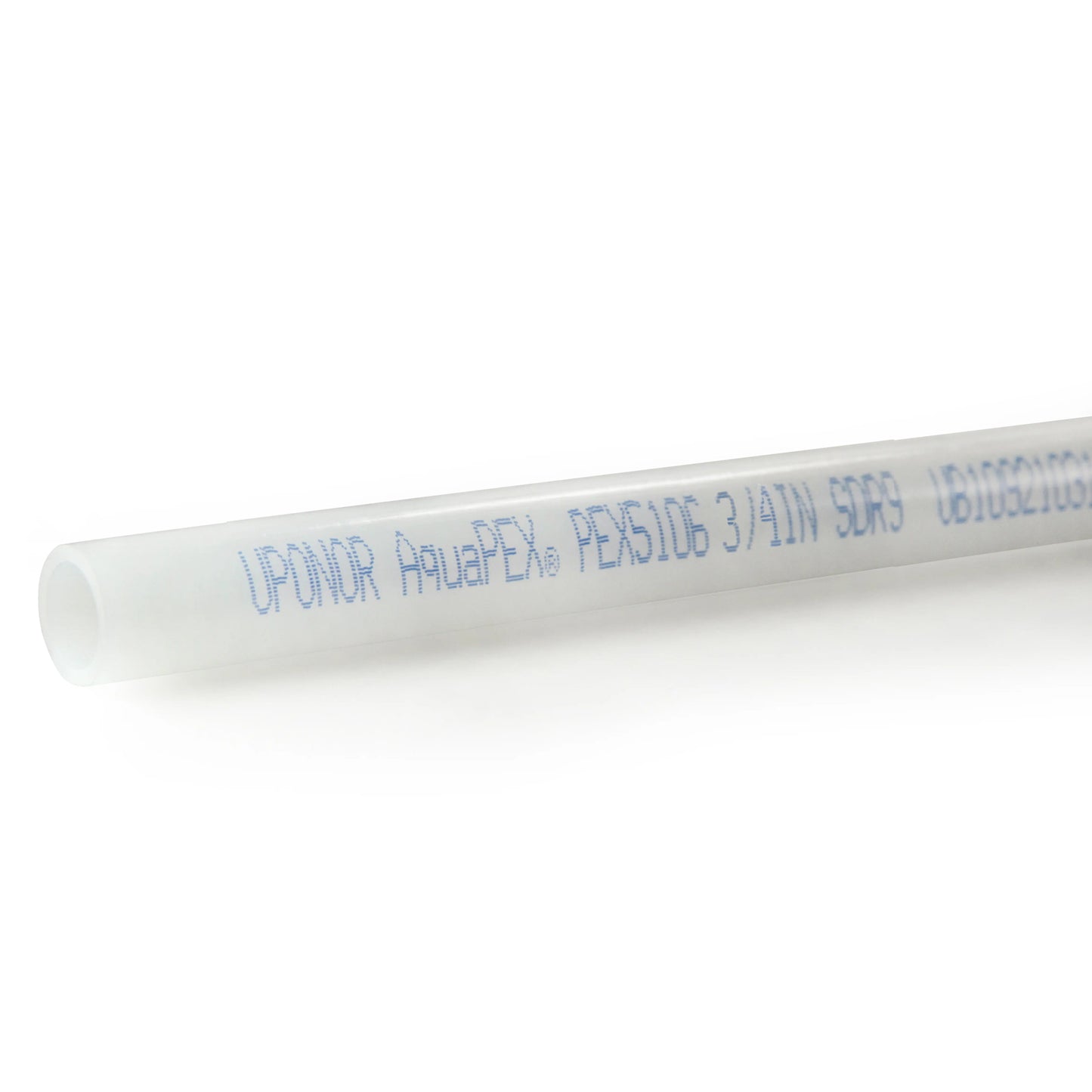

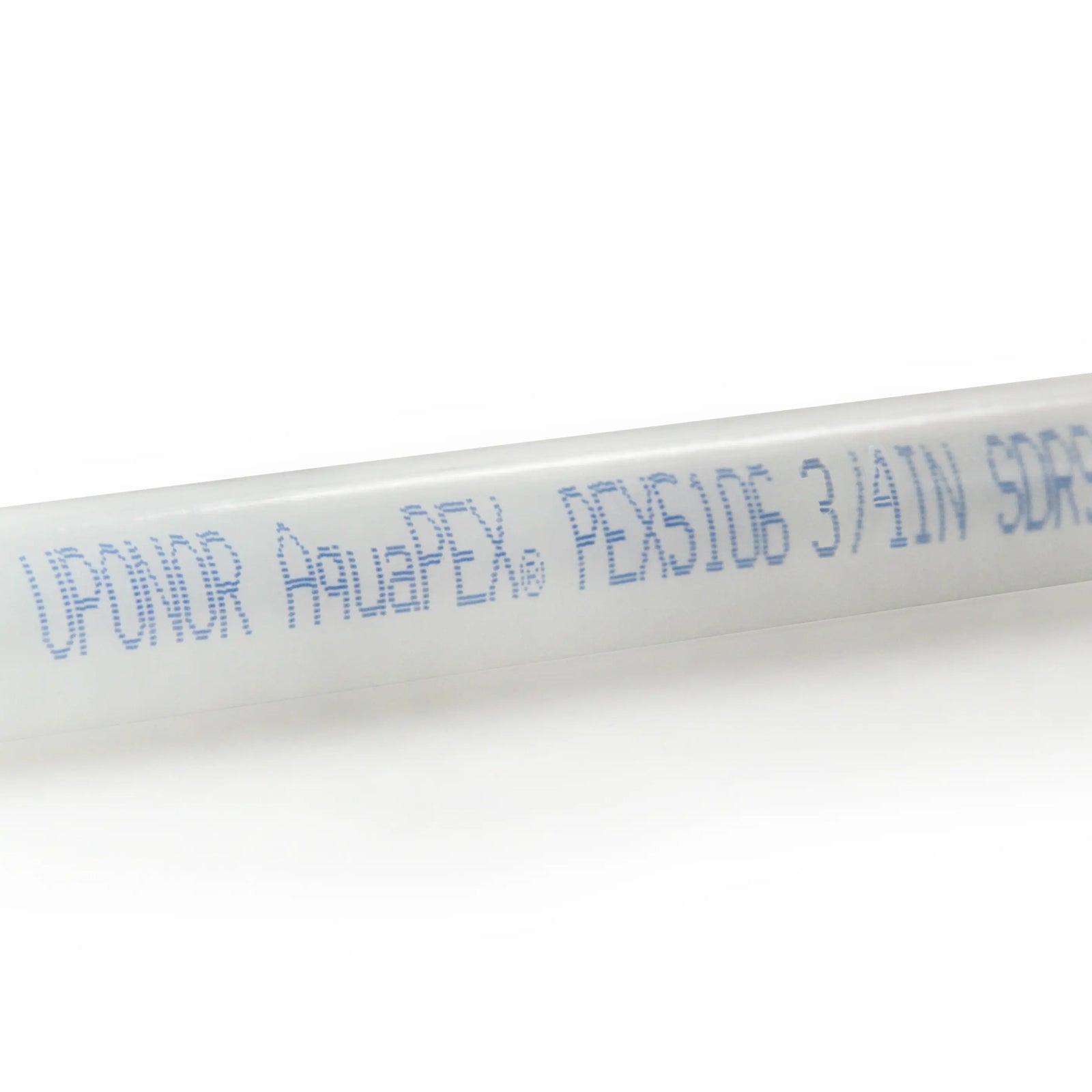

- Part Name: 3/4" Uponor AquaPEX White, Blue Print, 100-ft. coil
- Part Number: F4340750
- Coil Outer Diameter: 32"
- Coil Inner Diameter: 15.75"
- Pipe Outer Diameter: 0.875"
- Pipe Inner: Diameter: 0.671"
- Codes: IMC | UPC | IBC | IRC | NBC of Canada | IPC | UFGS | NPC of Canada | UMC | NSPC
- Standards: ASTM F1960 | ASTM E119/UL 263 | ASTM F876 | ASTM E84 | ASTM F2023 | ASTM E814/ULC S115 | ASTM F877 | CSA B137.5 | ULC S102.2 | CSA B214 | NSF-61 | ULC S101 | NSF-14
- Listings: IAPMO-ES | ICC-ES-PMG | cNSFus-pw | CCMC | PPI TR4 | CSA | UL | U.P.Code | cQAIus P321 | HUD MR 1269 | BMEC
- Temperature / Pressure Ratings:
- 73 degrees F at 160 psi (11 bar)
- 180 degrees F at 100 psi (6.9 bar)
- 200 degrees F at 80 psi (5.5 bar)
