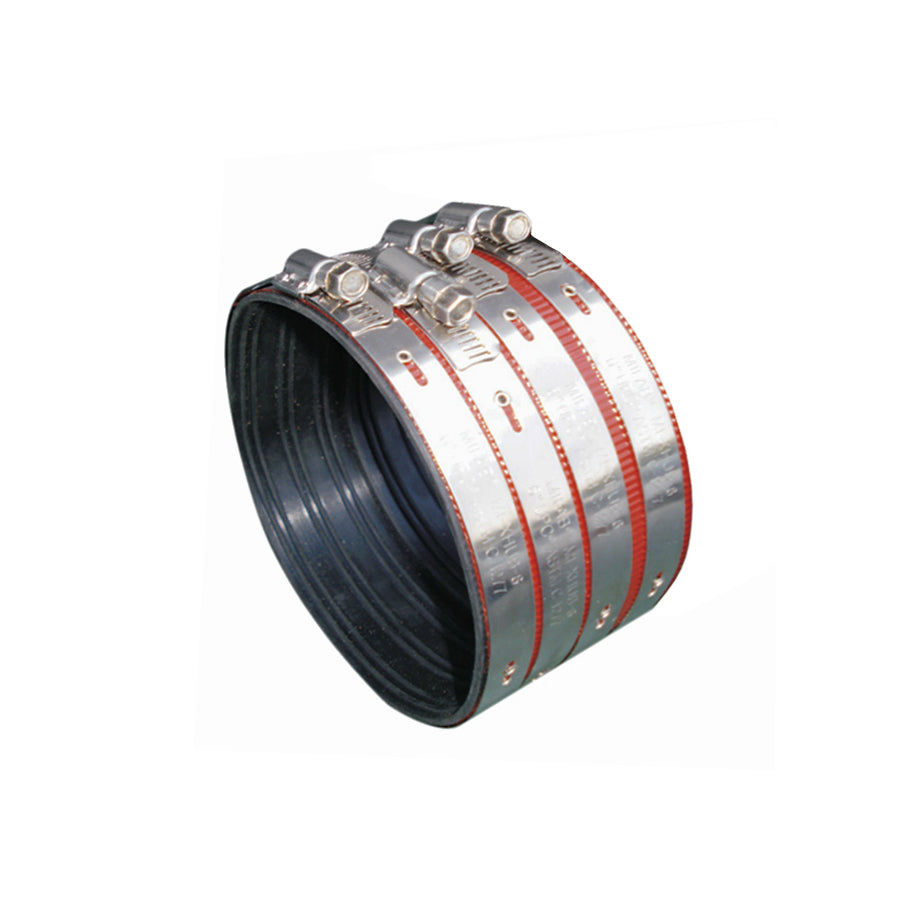

MIFAB MI-XHUB-3 - 3" Heavy Duty No Hub Coupling

MIFAB Series MI-XHUB heavy duty shielded no hub couplings are manufactured with gaskets made from neoprene that meets the requirements of ASTM C-564 housed inside a Type 304 stainless steel corrugated shield. Four (2" through 4" size), six (5" through 15" size) Type 304 stainless steel clamps tightened with 3/8" Type 305 stainless steel hex head screws surround the shield to provide the sealing force. MI- XHUB Series Couplings are tested and certified to the ASTM-C1540-2015 and CSA B602-2016 Standards and are listed with IAPMO. The MI-XHUB are also tested and certified by Intertek Testing Services to the CAN/ULC S102.2-10 "Smoke Test". The MI-XHUB are tested by I.A.P.M.O. to comply to the FM 1680-1989 Standard (except for markings).

Features

• A Heavy-Duty stainless steel coupling for joining No-Hub cast iron soil pipe and fittings.
• Provides a positive and significant seal between no hub cast iron pipe & fittings
• Bands - Type 304 AISI stainless steel (Minimum tensile 165,000 psi).
• Eyelets - Type 304 AISI stainless steel.
• Gasket - Neoprene - meeting the requirements of ASTM C-564.
• Screw Housing - Type 304 AISI stainless steel.
• Eyelets - Type 304 AISI stainless steel.
• Screws - Type 305 AISI stainless steel, 3/8” Hex head / Shoulder.
• Shield - Type 304 AISI stainless steel painted red for easy identification.

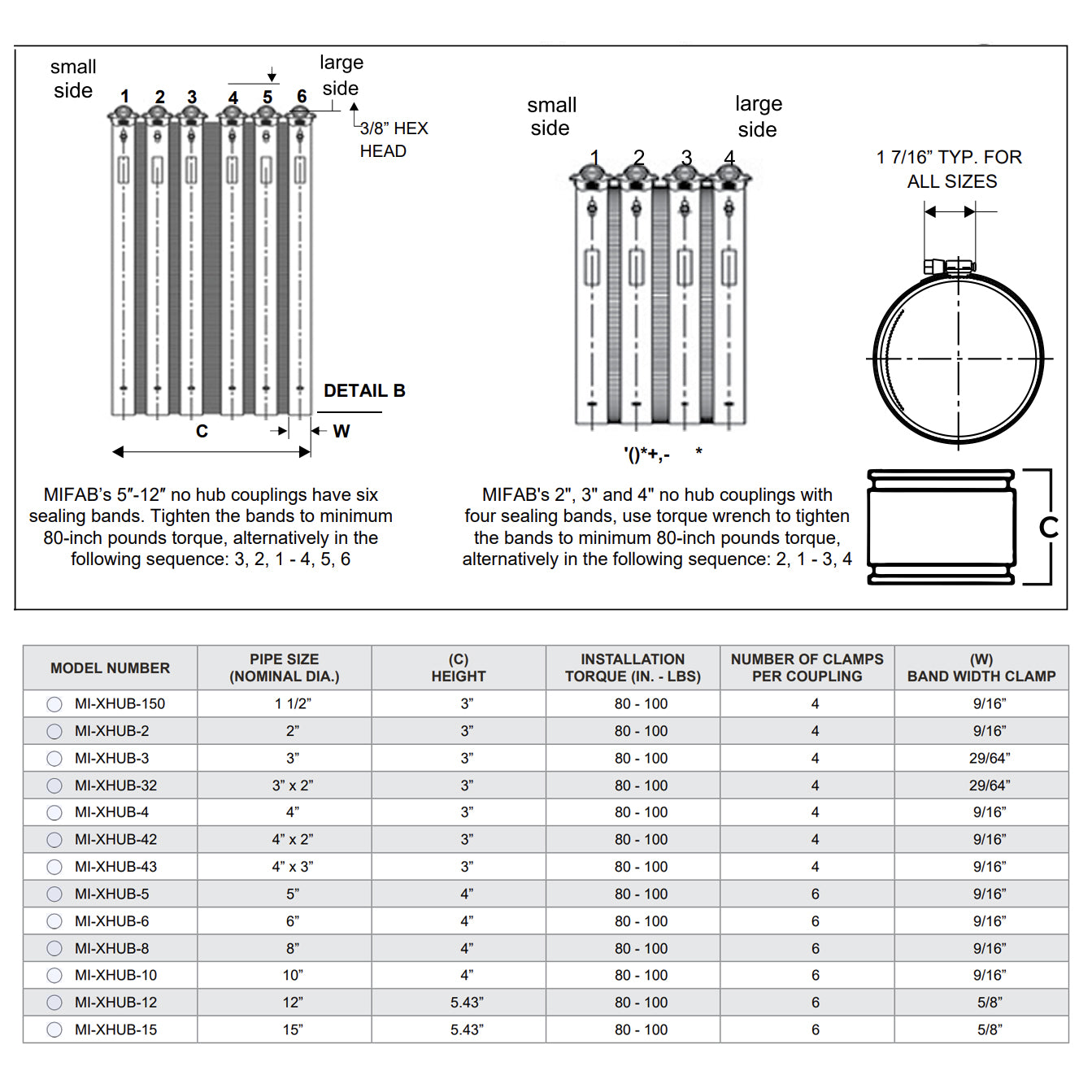

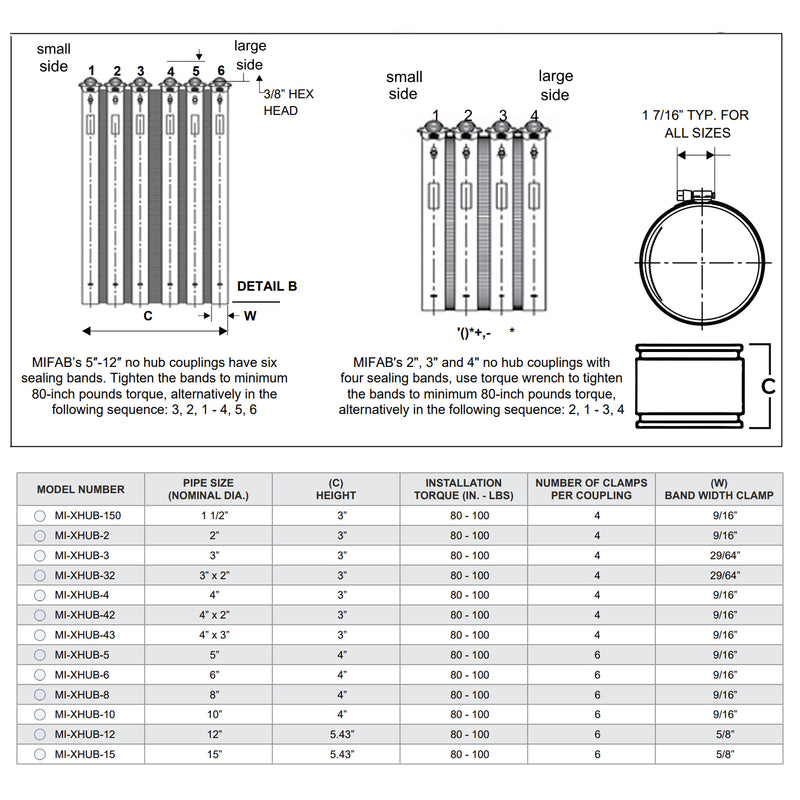

• Pipe Size: 3"
• Height: 3"
• Installation Torque: 80 - 100 in-lbs
• Number of Clamps: 4
