Spefication SheetNDS 314PBCR - 14" x 19" Pro-Spec Series - Purple Box / Purple Bolt-down Cover - Reclaimed Water

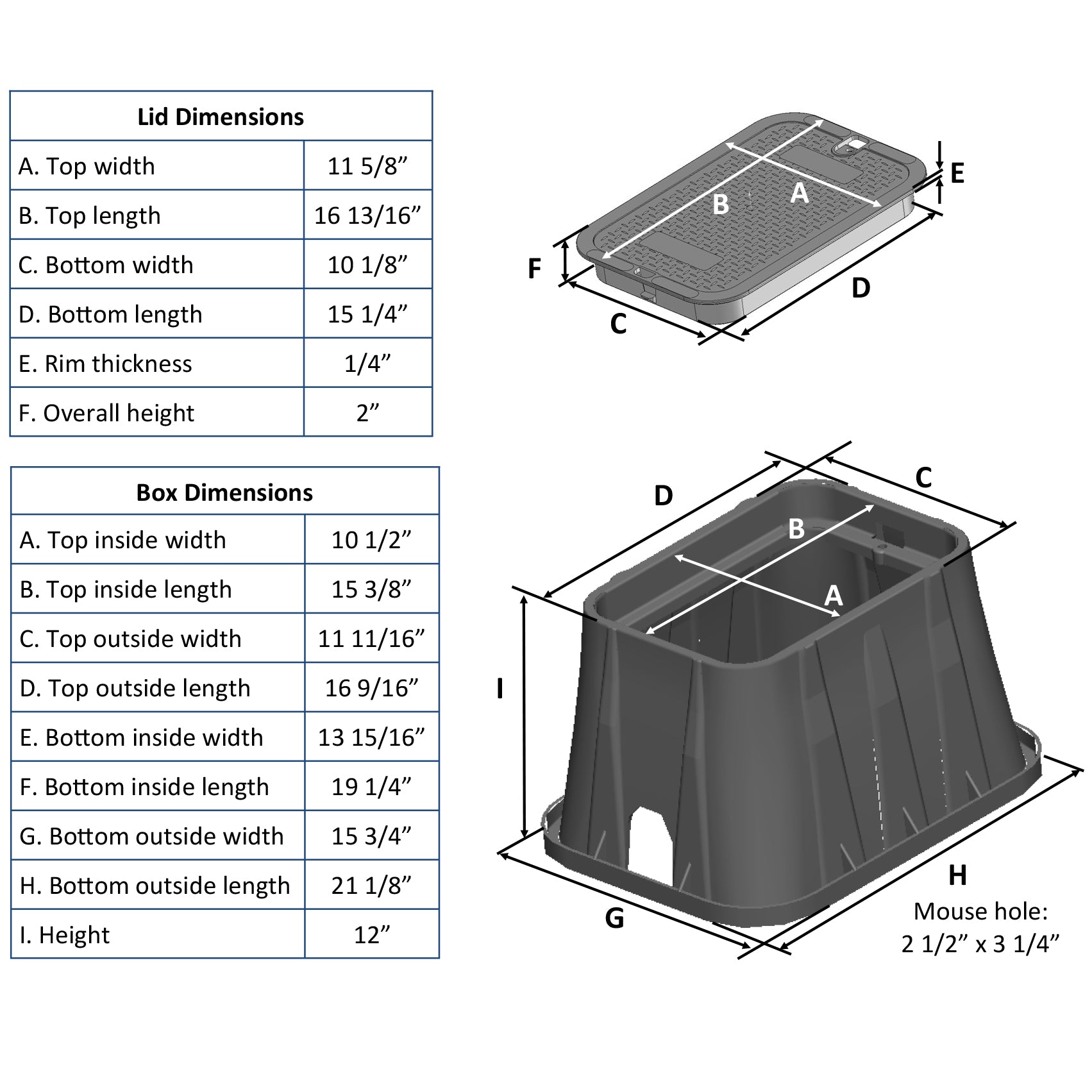

The NDS Standard Series 14" x 19" body is tapered and has a minimum wall thickness of 0.200". The body has a double wall at the top cover seat area with a minimum thickness of 0.250". The cover seat area has 16 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250". The bottom of the body has a 0.500" flange. The 14" x 19" cover has an average thickness of 0.250". The valve box has a 3/8" 304 Brass nut for the bolt-down as a standard feature. NDS valve, meter and access boxes are offered in a wide range of sizes from the 6-inch round valve box to the 17" x 30" rectangular box.
Specifications
- Series: Pro-Spec Series
- Box Color: Purple
- Box Material : HDPE
- Cover Color: Purple
- Cover Marking: Reclaimed Water, Do Not Drink
- Cover Material: HDPE
- Box Weight: 5.70 lbs
- Lid Weight: 2.61 lbs
- Total Weight: 8.31 lbs
- Box includes 3/8-16 brass nut
- All 14”x19” covers and risers fit this box
- Load rating: Pedestrian & lawn care equipment
Related Video: NDS 14" x 19" Valve Box Product Overview
