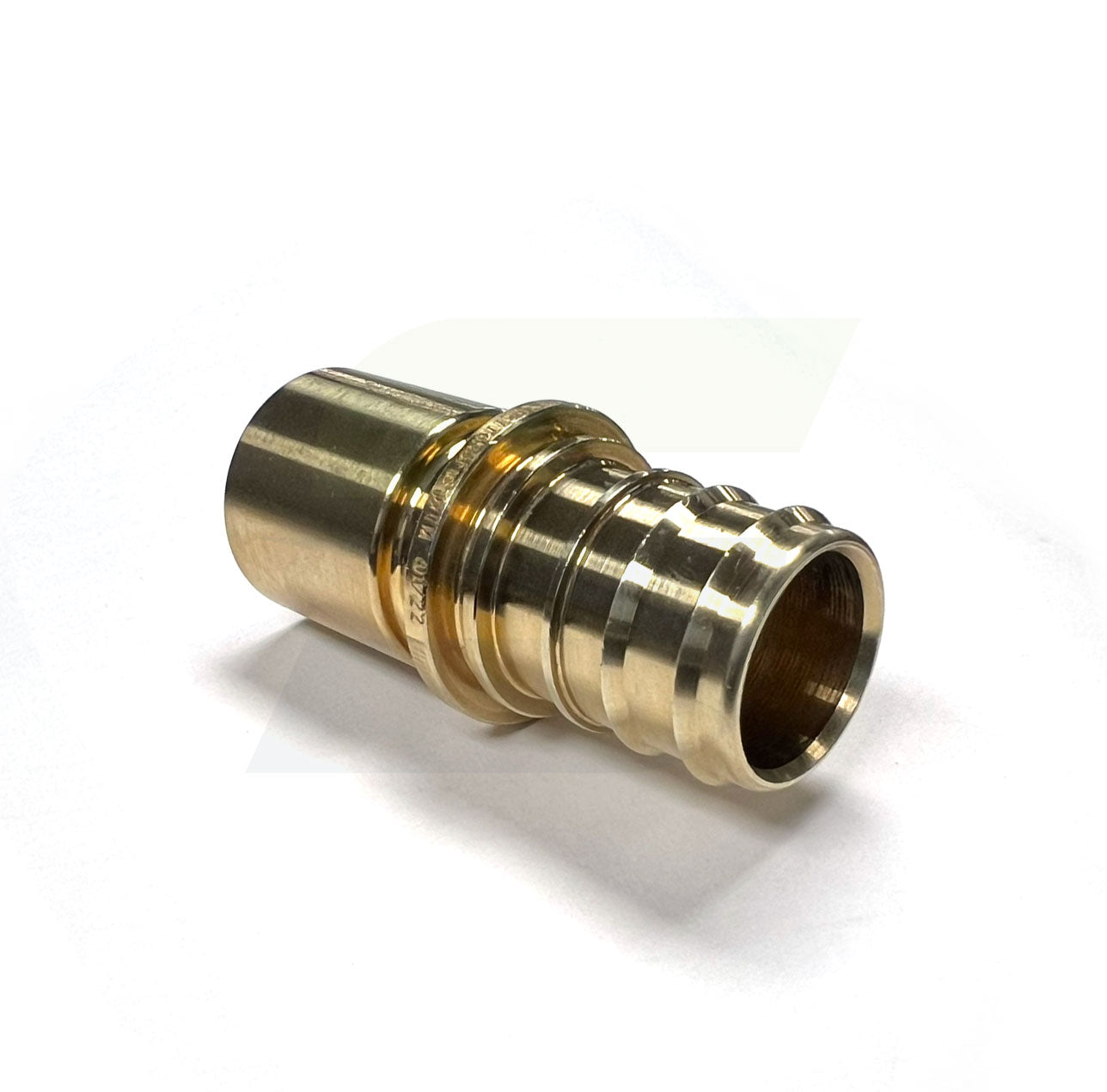

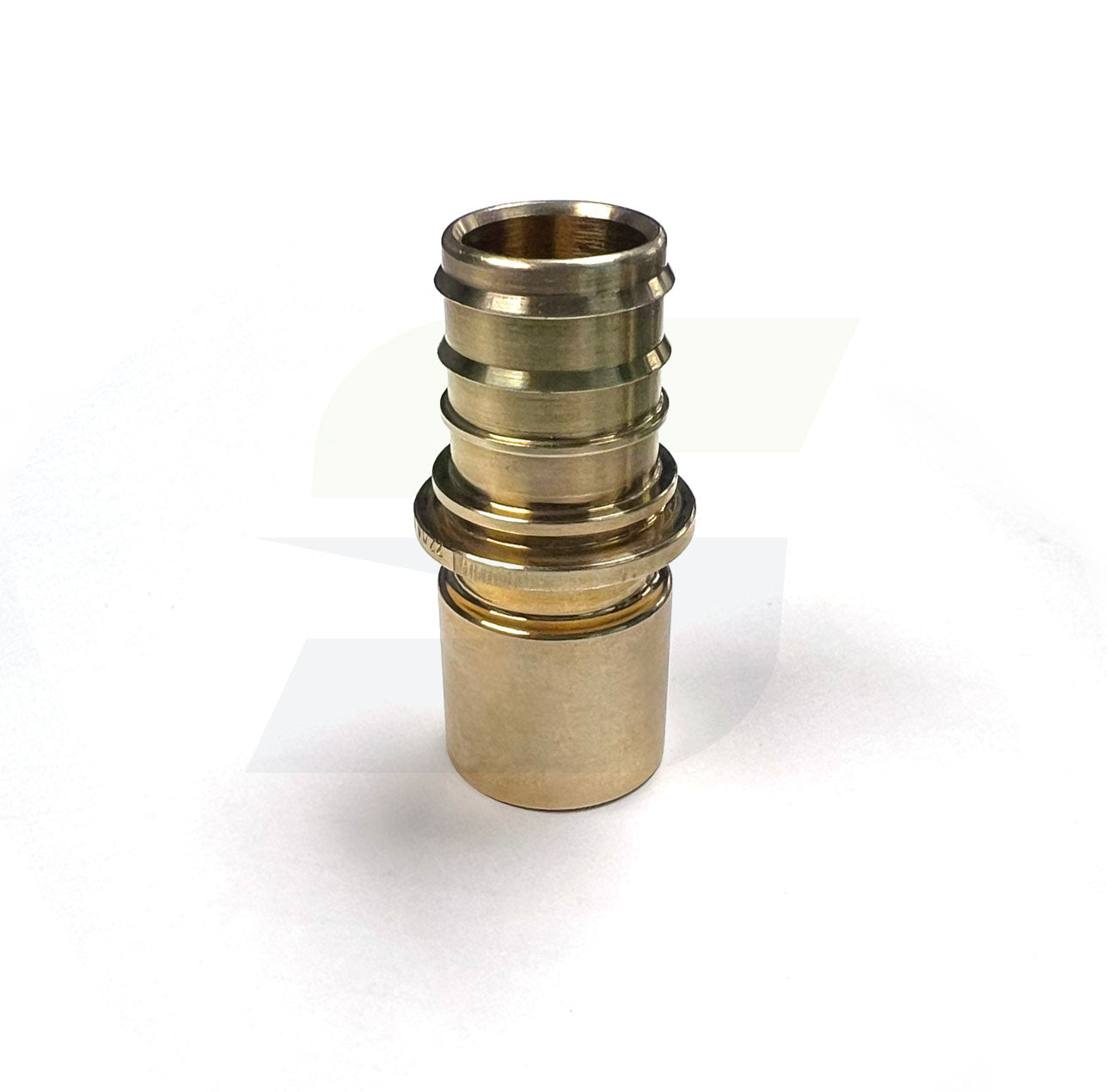

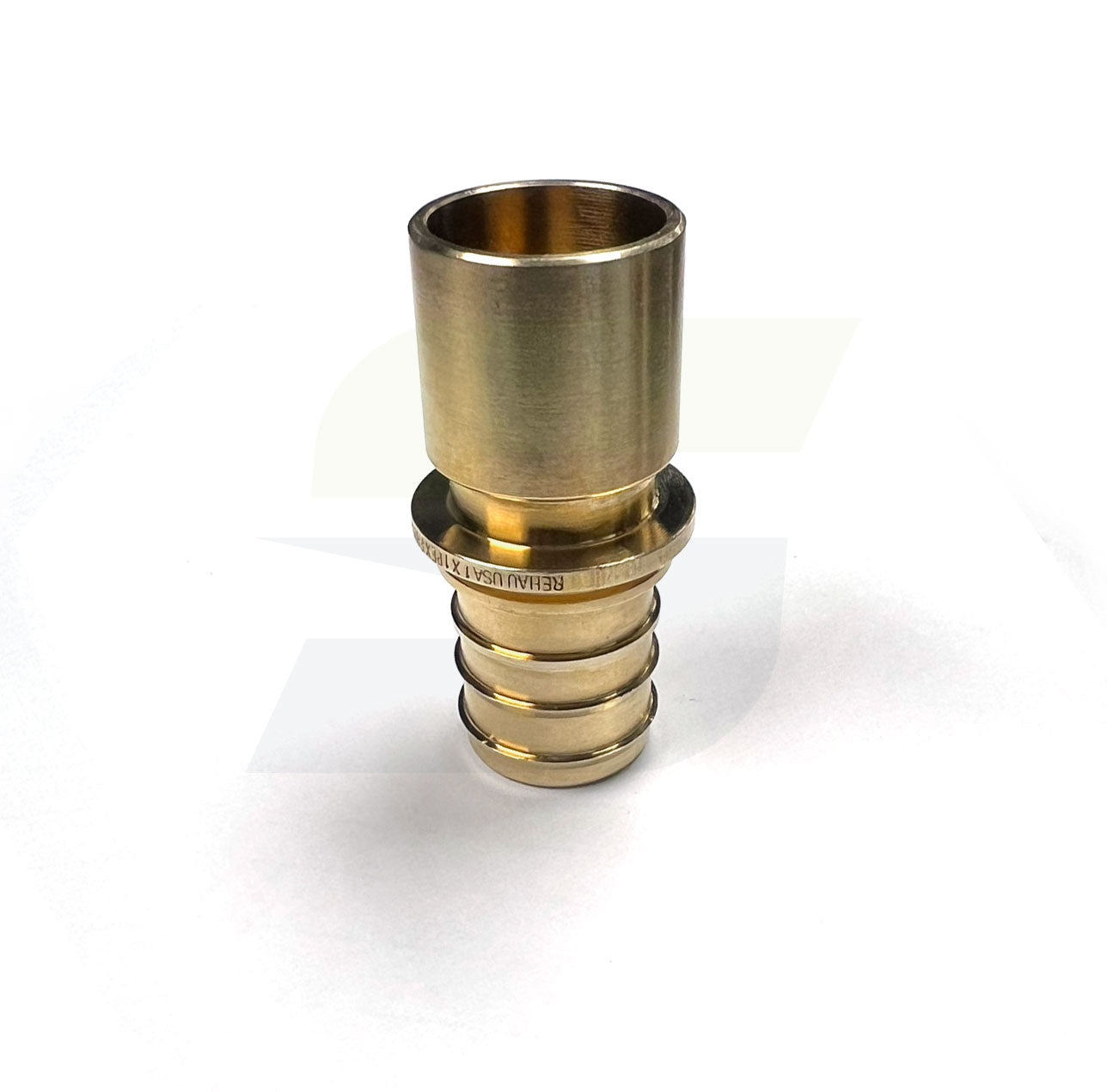

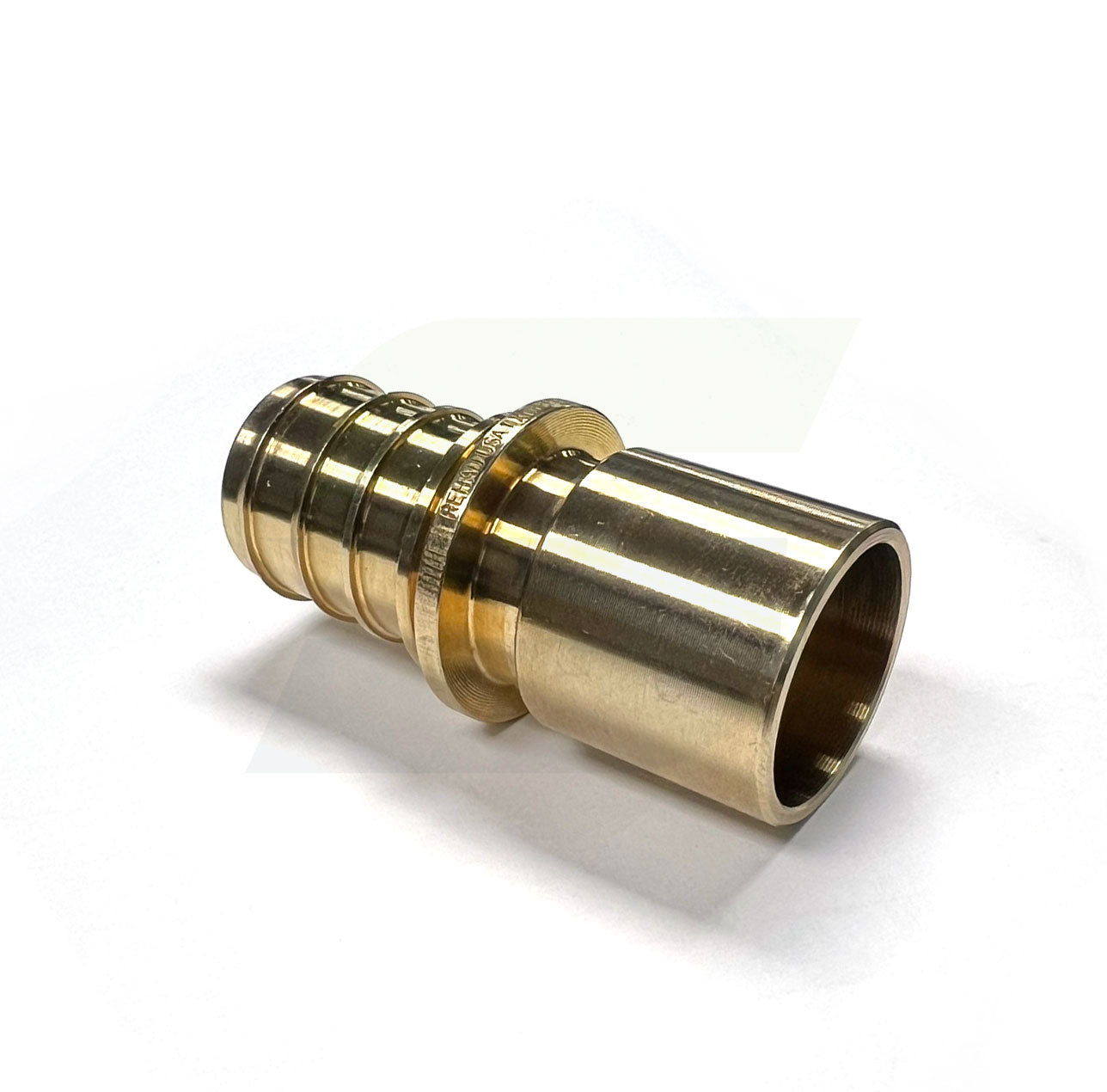

Rehau 317196-001 - 2" x 2" C Male EVERLOC+ LF Brass Copper Adapter
EVERLOC+ compression-sleeve fittings and sleeves are designed specifically for use with REHAU PEXa pipe. The maximum temperature and pressure ratings of the EVERLOC+ compression-sleeve fitting system is in accordance with ASTM F877 and CSA B137.5 for SDR9 PEX, see REHAU pipe product submittals for ratings. The common designations MPT (M=male) and FPT (F= female) refer to National Pipe Taper (NPT) threads in accordance with ANSI/ASME B1.20.1. Installation is performed with EVERLOC+ compression-sleeve tools. Follow all published REHAU Technical Guidelines. All EVERLOC+ fittings and sleeves comply with the lead-free (LF) requirements of the U.S. Safe Drinking Water Act.
Features
- Lead-Free
- Adapter Fitting
- Nominal Size: 2" x 22" C Male
- Overall Length: 4.18"
- Inside Diameter: 1.50"
- Max Outside Diameter: 2.44"
PEHB000670
