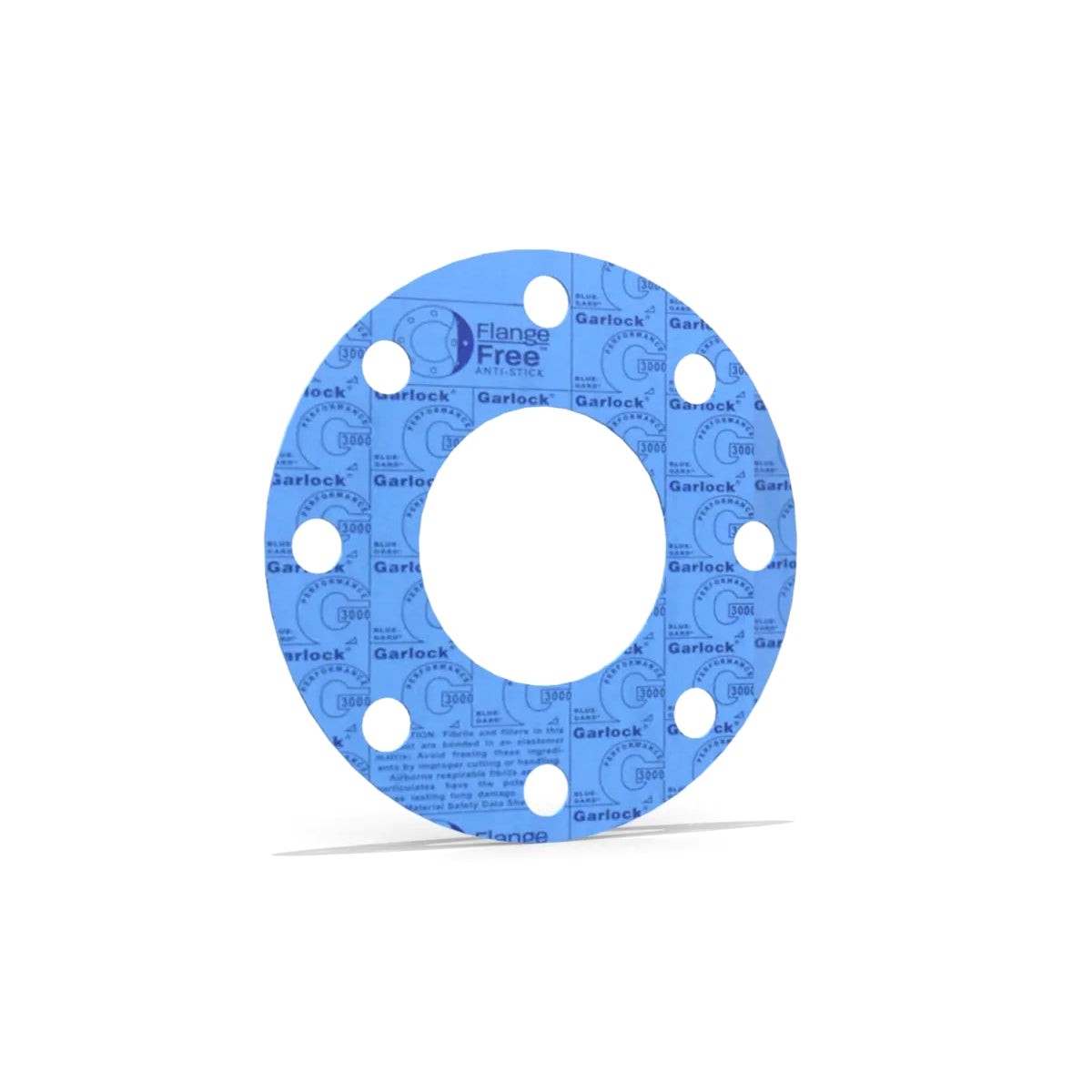

37706-5106 - BLUE-GARD Fiber / Nitrile Binder Style 3000 Full Face Gasket - For 6" Pipe

In stock
SKU: 37706-5106
Regular price $10.50

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

37706-5106 - BLUE-GARD Fiber / Nitrile Binder Style 3000 Full Face Gasket - For 6" Pipe

Specifications

  • Bolt Circle Diameter (Inch): 9.500
  • Bolt Circle Diameter (mm): 241.30
  • Bolt Hole Diameter (Inch): 0.875
  • Bolt Hole Diameter (mm): 22.23
  • Bolt Hole Quantity: 8
  • Color: Blue
  • Compliances: REACH Compliant, RoHS Compliant
  • Composition: Aramid Fiber with Nitrile Binder
  • Fiber: Aramid
  • Flange Standards/Pressure Class: ASME B16.5 Class 150
  • Gasket Type: Full Face
  • Inside Diameter (Inch): 6.625
  • Inside Diameter (mm): 168.28
  • Max Temperature (C): 371
  • Max Temperature (F): 700
  • Min Temperature (C): -73
  • Min Temperature (F): -100
  • Nominal Pipe Size (inch): 6.000
  • Nominal Pipe Size DN (mm): 150.0
  • Nominal Pipe Size Fraction (Inch): 6
  • Outside Diameter (inch): 11.000
  • Outside Diameter (mm): 279.40
  • Pipe Standard and Class: ASME B16.5 Class 150
  • Pressure Max (bar): 70
  • Pressure Max (psi): 1000
  • Primary Dimensional Unit of Measure: Imperial
  • Primary Nominal Thickness: 1/8 in
  • Product Weight: 0.46 lbs
  • Rubber Chemical Name: Acrylonitrile Butadiene
  • Rubber Material: Nitrile
  • Rubber Material Abbreviation: NBR
  • Style/Model: Style 3000
  • Temperature Range (C): -73 degrees C to 371 degrees C
  • Temperature Range (F): -100 degrees F to 700 degrees F
  • Thickness (inch): 0.125
  • Thickness (mm): 3.18
