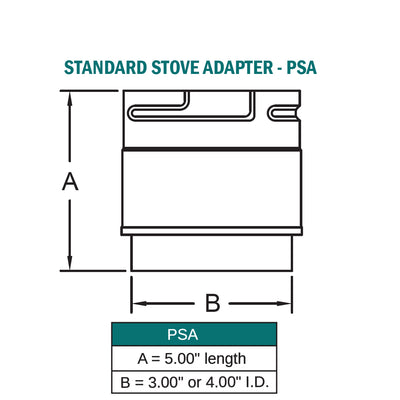

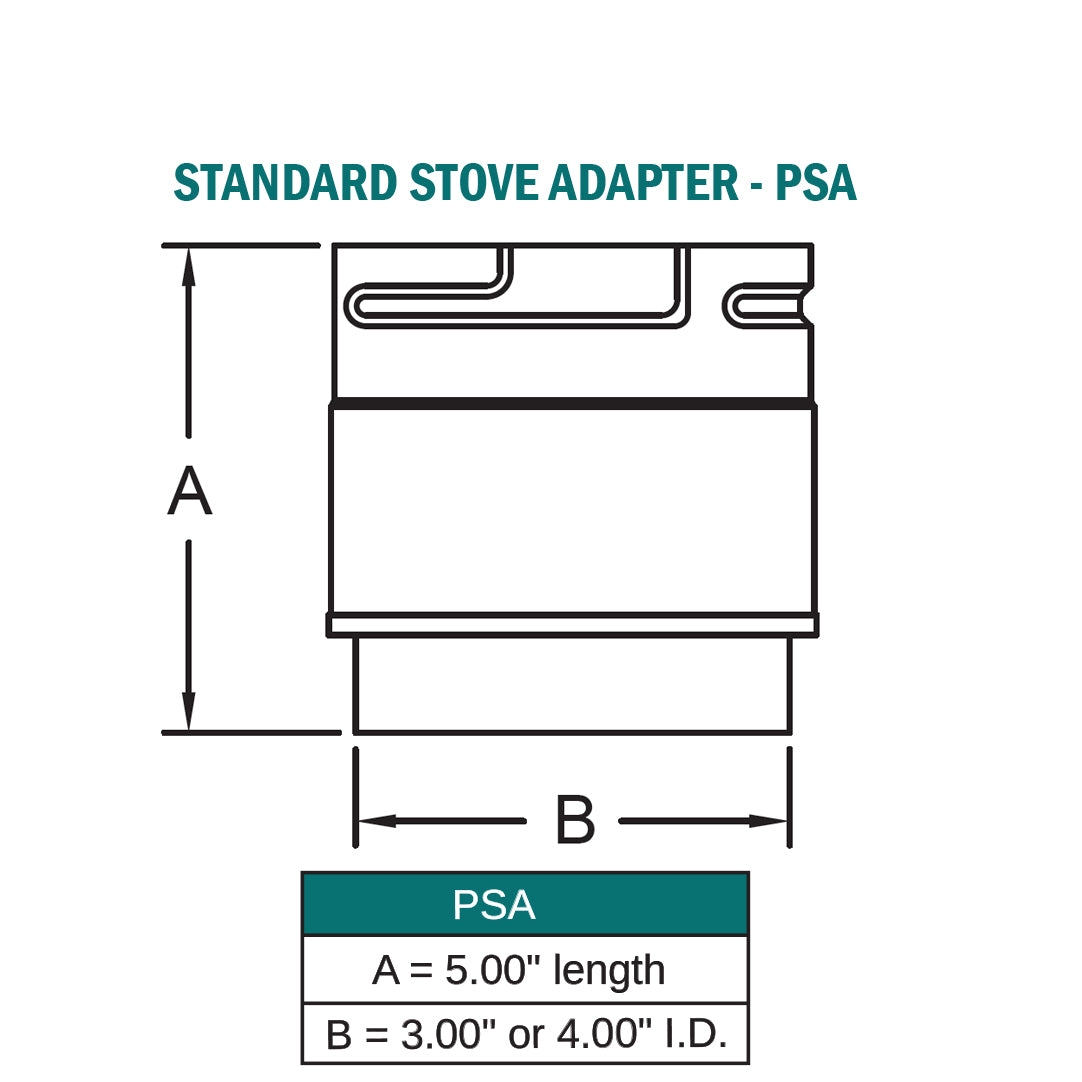

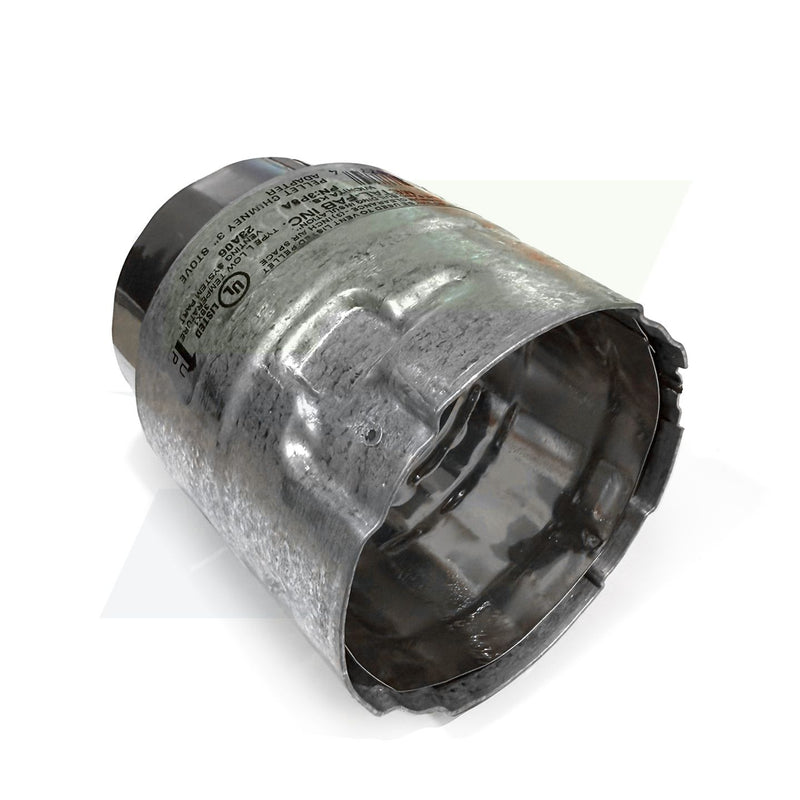

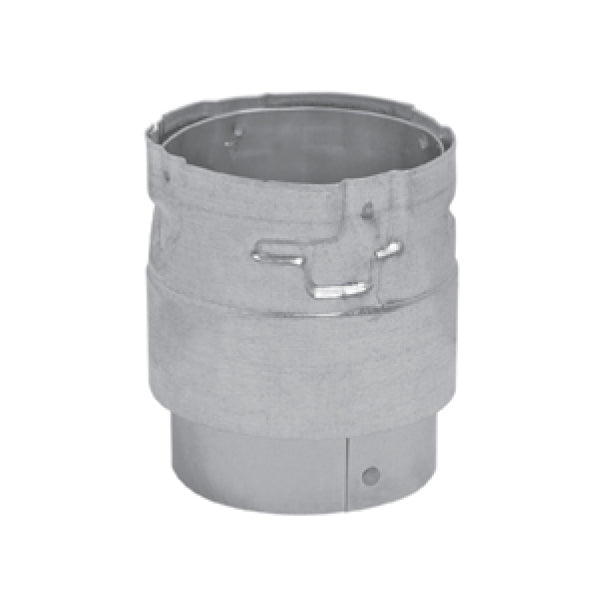

Metal-Fab 3PSA - Biomass / Pellet Standard Stove Adapter - 3"

Used as a connector between stove exhaust collar and the positive twist lock of biomass chimney pipe. Order PSA when O.D. of exhaust collar is a true 3" or 4" dimension. Order PSAU when collar is less than 3" or 4" diameter. For use with biomass fuels such as pellet, corn, wheat or other grassy and woody plants as specified by appliance manufacturers.

Features

• Type L Biomass Chimney
• Stainless liner
• Galvanized casing
• 3" Clearance to combustibles
• Tested and Listed to UL 641.
• Pipe and fittings available in 3" and 4" diameters
• Factory-built double wall construction, using 430 stainless steel flue and galvanized steel outer casing.
• Positive twist lock for easy assembly and disassembly without tools and without damage.
• Rope gaskets at each joint to prevent fly ash leakage.
• Note: Pipe overlaps 1-1/2" when joined together. Assembled length is 1-1/2" less than listed length.
