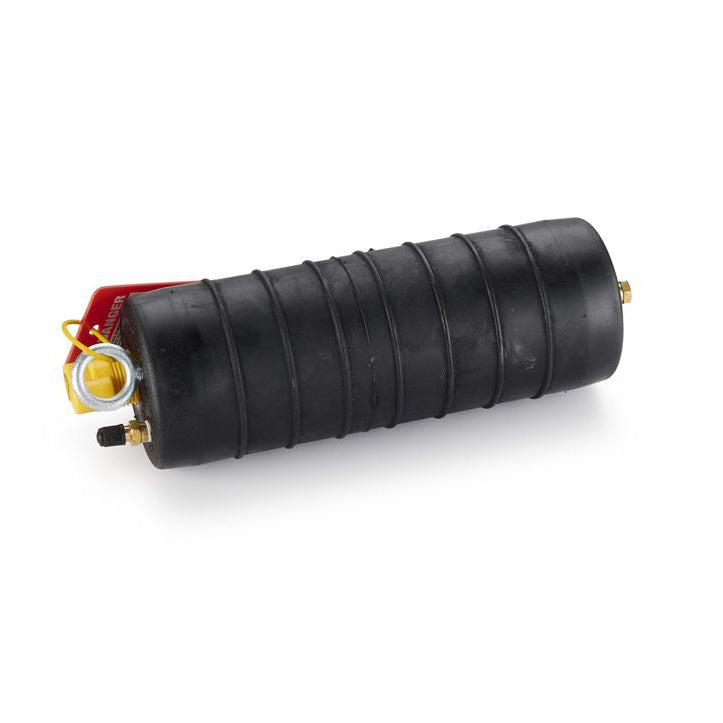

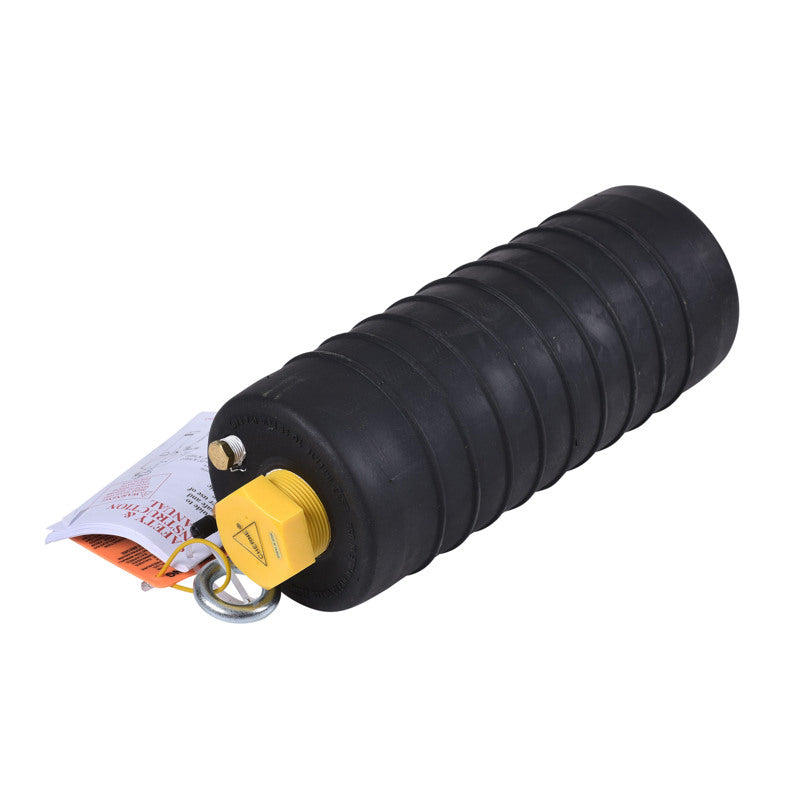

Oatey 265048 - Cherne Multi-Size Plumbing Muni-Ball Bypass Plug  - 4" to 6"

Cherne Underground Muni-Ball Plugs offer a full bypass, allowing both testing and monitoring of piping systems. These plugs are ideal for installation and repair of residential or commercial piping systems. Cherne Industries is a global leader in pipe plugs and testing.

Features

• One plug fits multiple pipe diameters.
• Made of natural rubber for excellent expansion and memory
• Seals both round and out-of-round pipe
• Removable inflation valve can be replaced if damaged or replaced with quick disconnect fitting
• Use to block flow or as a back plug for sewer air testing

Specifications

• Inflation Pressure: 35 psi (2,4 bar)
• Deflated Length: 10.75 in. (273 mm)
• Bypass Diameter: 3/4 in. F
• Deflated Diameter: 3.46 in. (88 mm)
• Inflation Thread: 1/8 in.
• Nominal Size: 4 in. - 6 in. (100 - 150 mm)
• Chain Eye Bolts: 1/4 in. (1)
• Usage Range: 3.75 in. - 6.25 in. (95 - 159 mm)
• Weight: 2.5 lb.
• Nominal Min: 4
• Nominal Max: 6
• Brand: Cherne
• Maximum Back Pressure: 17 psi (1,2 bar)/40 ft (12 M)
• Product Type: Multi-Size Underground Muni-Ball
• Color: Black
• Plug Type: Bypass
