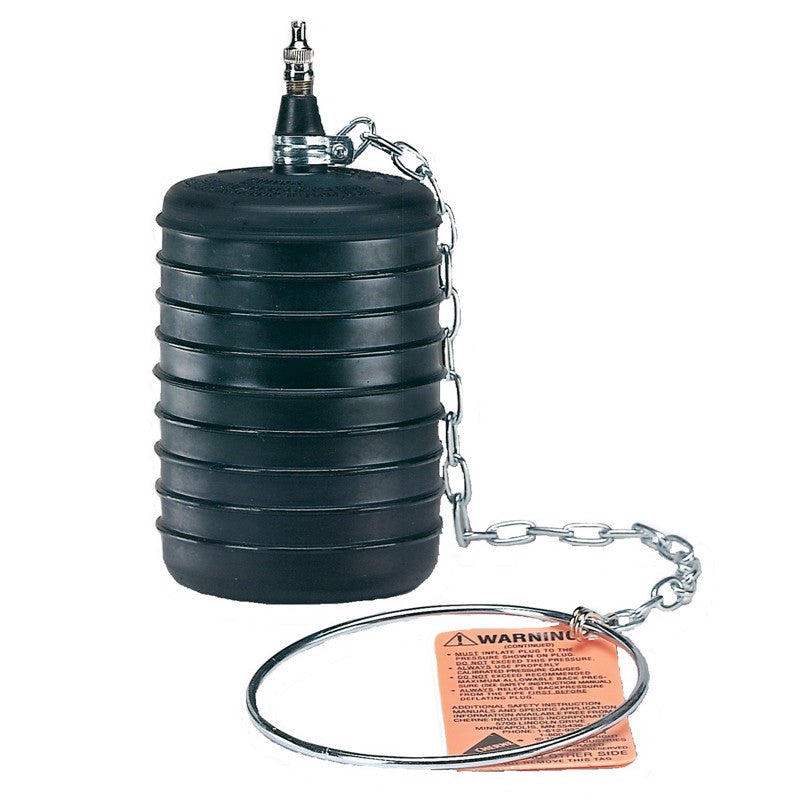

Oatey 270040 - Cherne Single-Size Plumbing Test-Ball Plug- 4"

Cherne Single-Size Test-Ball Plugs are expandable rubber test plugs designed to test drain, vent and waste systems in every type of pipe. Utilizing a standard tire air fitting for easy connections, its inflatable design can be inserted through a test tee to seal out-of-round pipe and hard-to-access openings. These plumbing test plugs are available in a variety of nominal sizes to accommodate your DWV testing needs. Cherne Industries is a global leader in pipe plug, blocking and testing.

Features

• 4 in. nominal size
• Test ball plug
• Tests DWV systems at pressures up to 13 PSI/30 ft.
• Natural rubber body provides excellent expansion

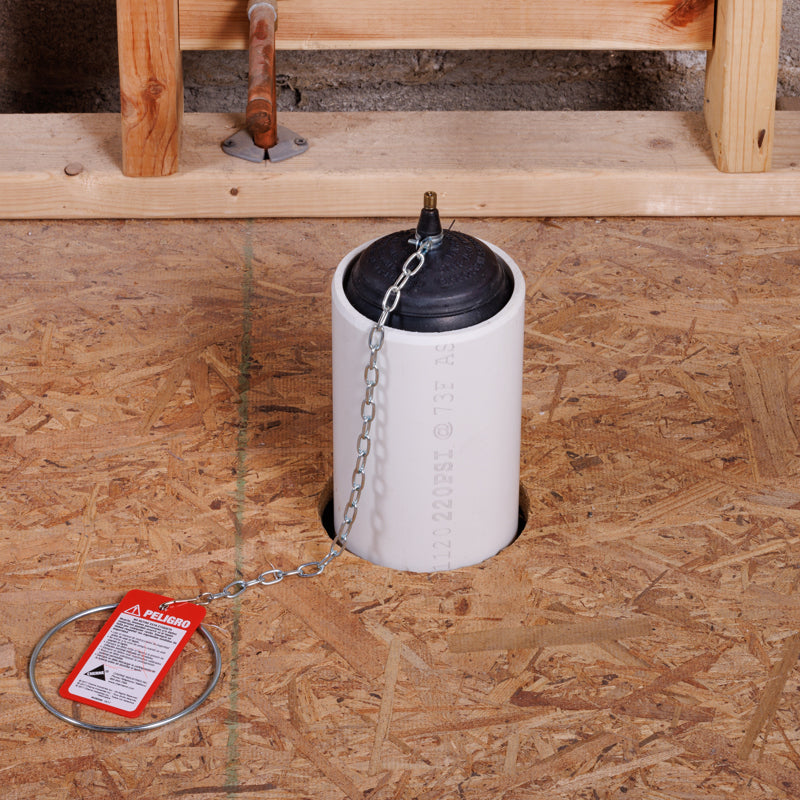

• Inflatable design can be inserted through a test tee to seal out-of-round pipe and hard-to-access openings
• Utilizes a standard tire air fitting for easy connections

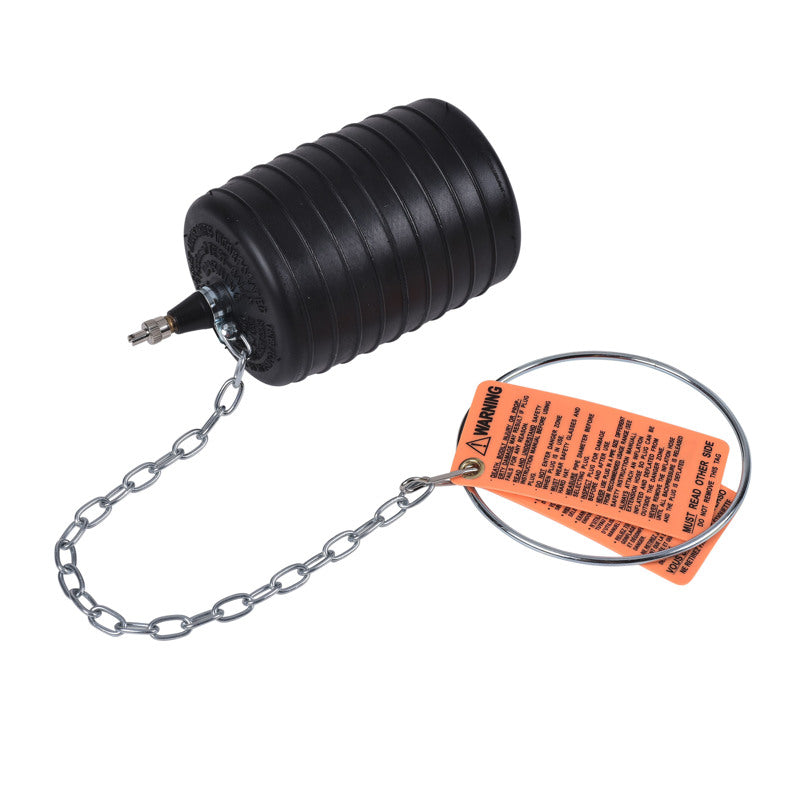

• Ring and chain assembly helps prevent the plug from being drawn into DWV systems during tests

Specifications

• Maximum Back Pressure: 13 psi (0,9 bar)/30 ft. (9.1 M)
• Inflation Pressure: 30 psi (2,1 bar)
• Usage Range: 3.41 in. - 4.25 in. (87 - 108 mm)
• Deflated Length: 6.5 in.
• Nominal Size: 4 in. (100 mm)
• Deflated Diameter: 3.25 in.
• Inflation Thread: 3.25 in. (83 mm)
• Weight: 9 oz.
• Nominal Min: 4
• Nominal Max: 4
• Brand: Cherne
• Color: Black
• Product Type: Single-Size Plumbing Test-Ball
• Chain Eye Bolts: Ring and Chain
• Plug Type: Blocking
