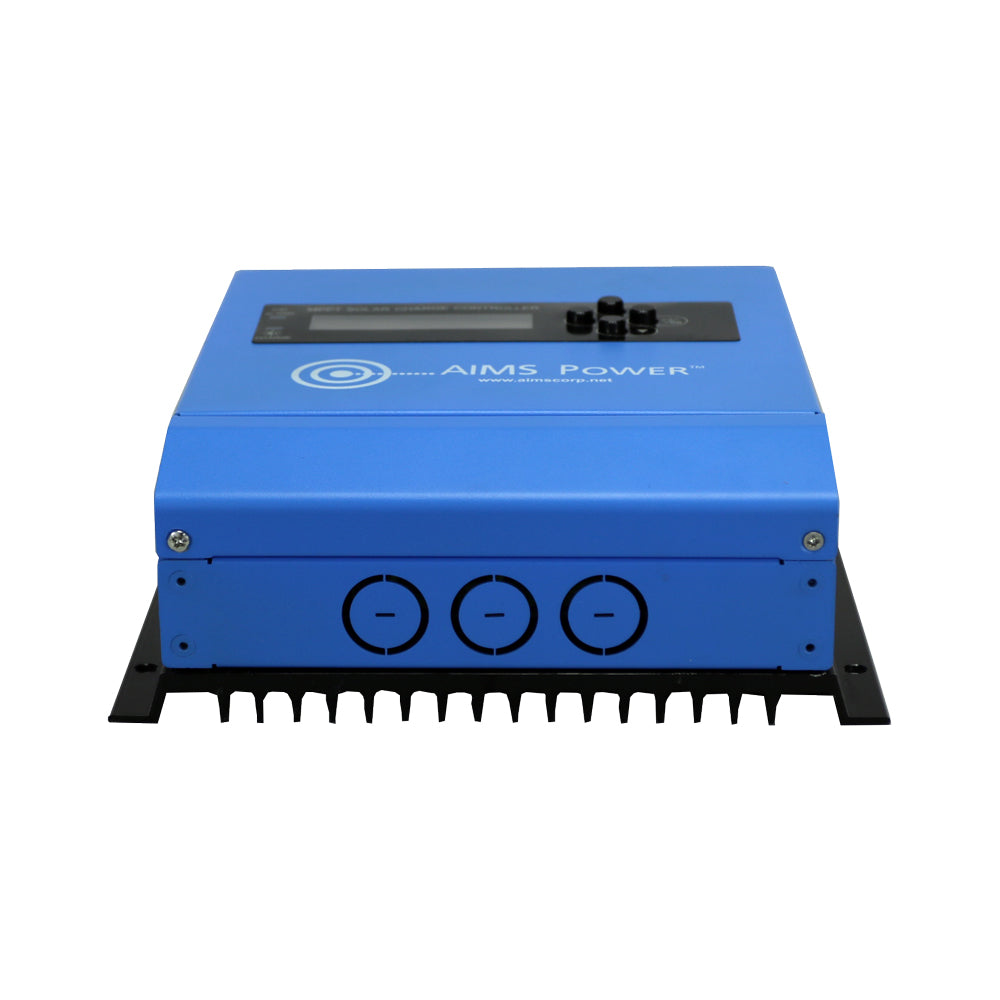

This solar battery charge controller by AIMS Power features a smart tracking algorithm using MPPT charging technology and has less power loss performing at 97.5-99% efficiency, maximizing energy harvest. The tracking algorithm is automatic and varies with weather conditions. This charge controller also has temperature compensation protection using the included battery temperature sensor. Charges 12, 24, 36 and 48 volt solar systems with multistage charging technology and adjusts according to battery type.

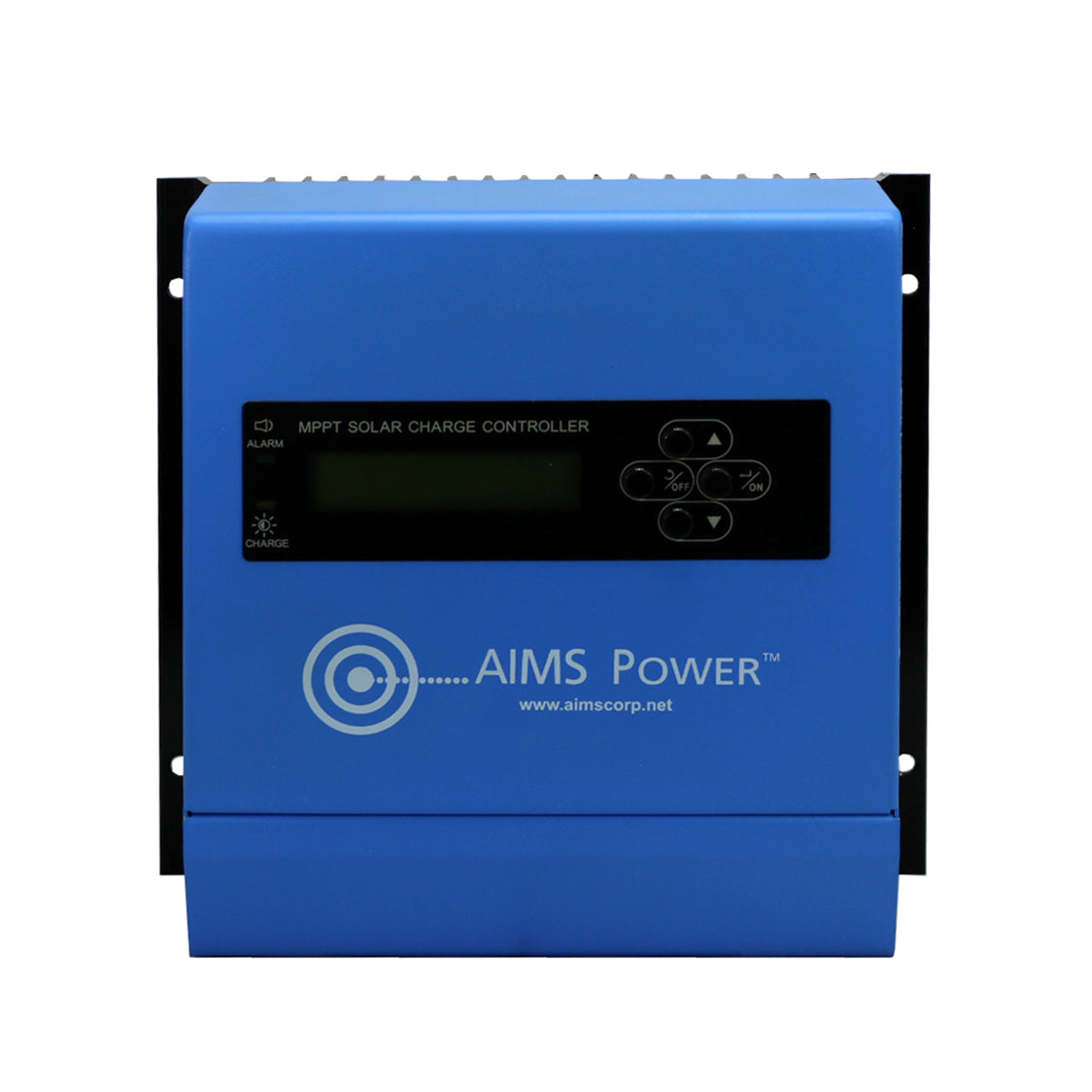

The AIMS charge controller includes LED indicators to show charging status and faults. An LCD displays key information such as battery voltage, solar panel voltage, solar panel charging current and charge mode. Users are able to revise and set the default parameters according to system design. There is also a RS485 connection block for computer monitoring of all charge controller functions. Backed by a 2 year warranty.

• MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve
• Quality heatsink cooling – no fans needed and no thermal derating
• Battery type selector and user defined charging voltage
• 4 stage charging
• PV input, battery output and load control ports
• Stackable
• Reliable electronics, over engineered components generating less heat
• Very efficient up to 99%
• Low self consumption
• Thermal design rugged case
• Over temp protection
• Overload, short circuit, high and low voltage protection
• RS485 port for computer monitoring
• CE, ETL to UL1741 and RoHS compliant
• Marine coated
• Mounting holes
