Resideo AT Transformers Installation Instructions

Versatile Transformer

The 40 VA transformers by Resideo power 24V systems including thermostats, gas valves, and relays. They feature override protection and color-coded lead wires for primary connections. Energy limiting, they meet NEMA standard DC20-1992 and have type D enclosure. They meet NEC Class 2 not wet, Class 3 wet, and UL 1585 requirements

Overview

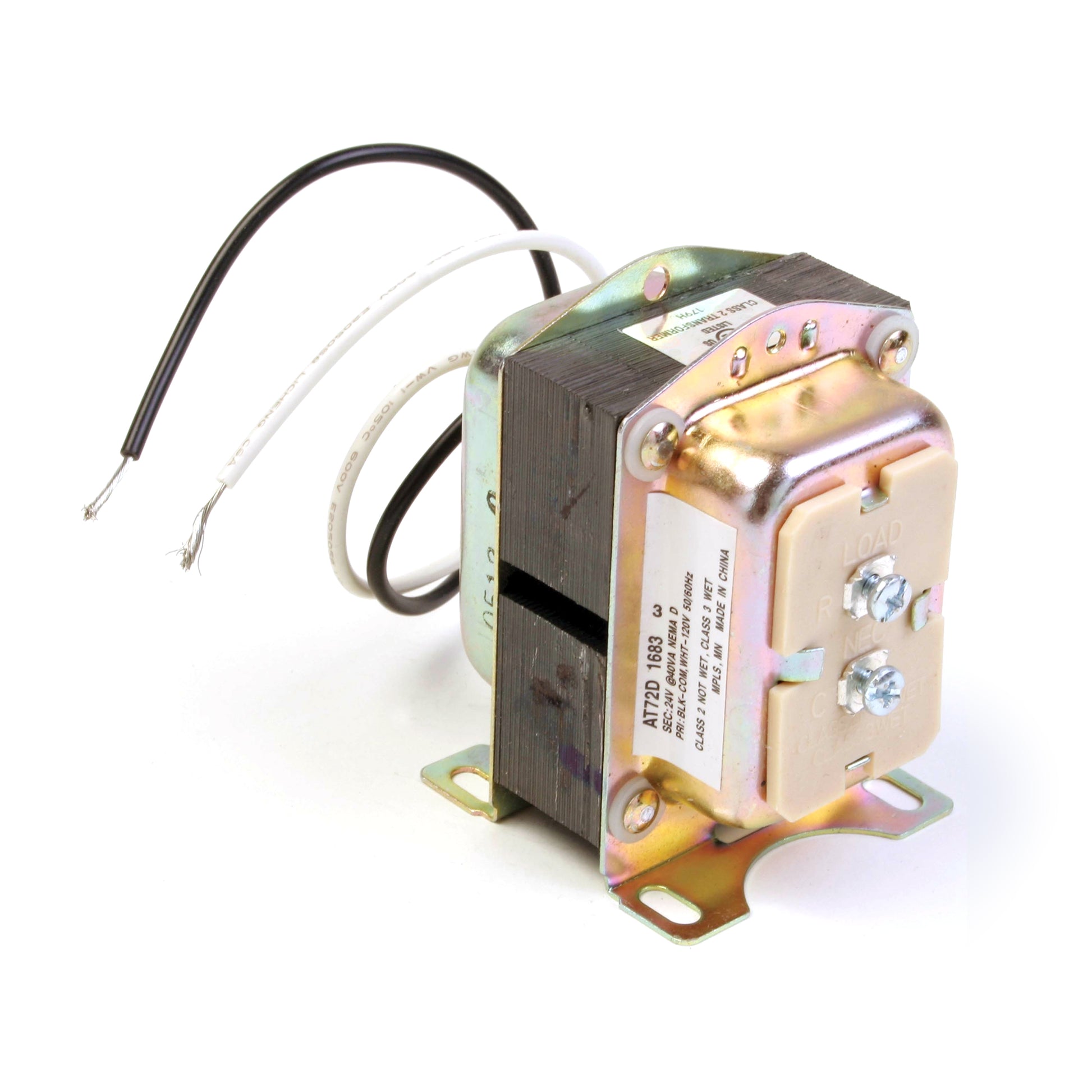

Honeywell / Resideo 40 VA transformers power 24V systems including thermostats, gas valves and relays.

Features:

• Override protection
• Color-coded lead wires for primary connections
• Energy limiting and meets NEMA Standard DC20-1992
• Transformers are marked NEMA Type D enclosure
• Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements

Resideo offers NEMA — National Electrical Manufacturers Association — standard DC20-1992 and general purpose transformers. These transformers are available with
single or multiple input voltages and with foot, conduit and plate mounting options. Transformers with circuit breakers that can be manually reset by pressing a button are also available. Resideo also designs transformers for specific environmental requirements and with specialized termination options.
NEMA-compliant transformers prevent overcooling, brownout, and burnout.
