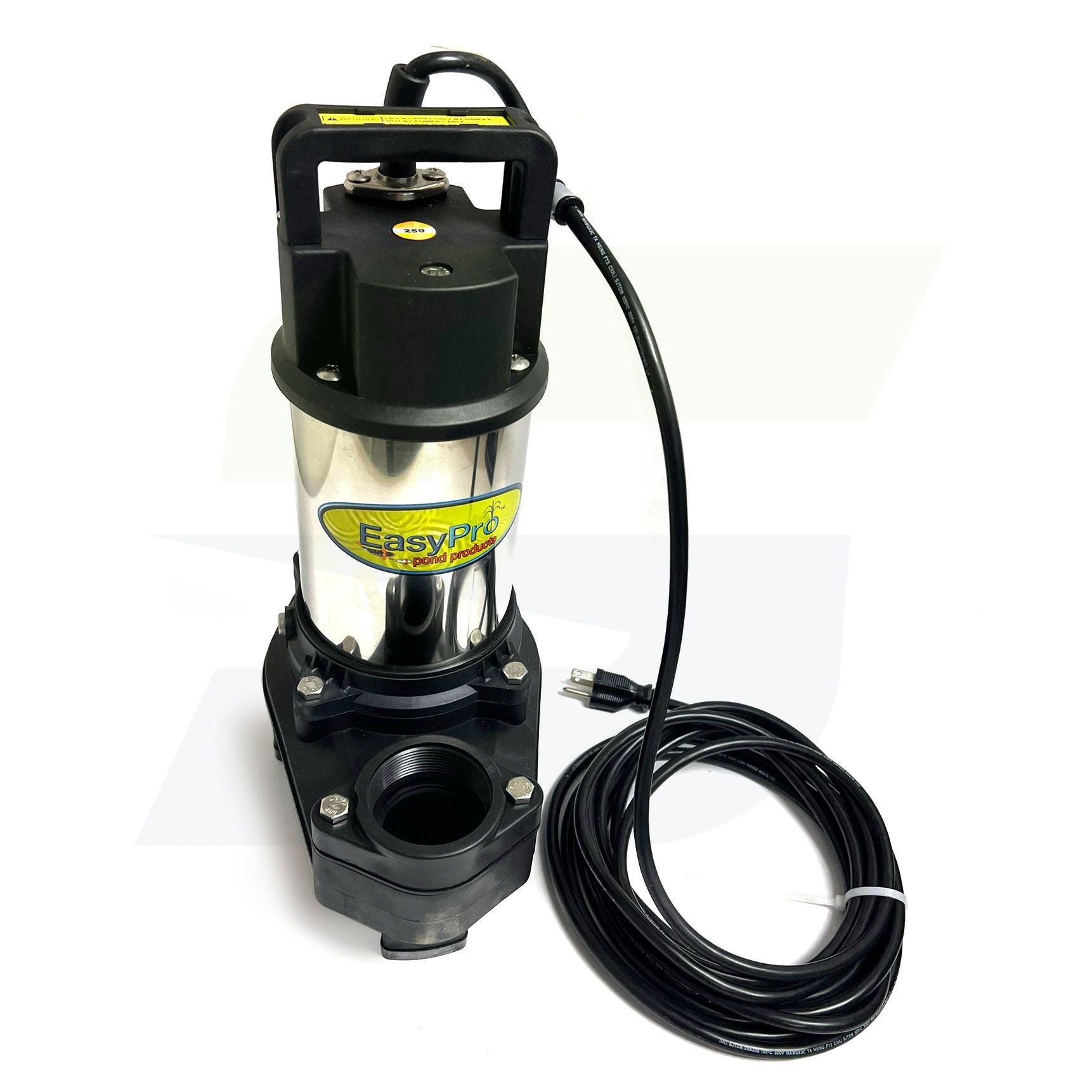

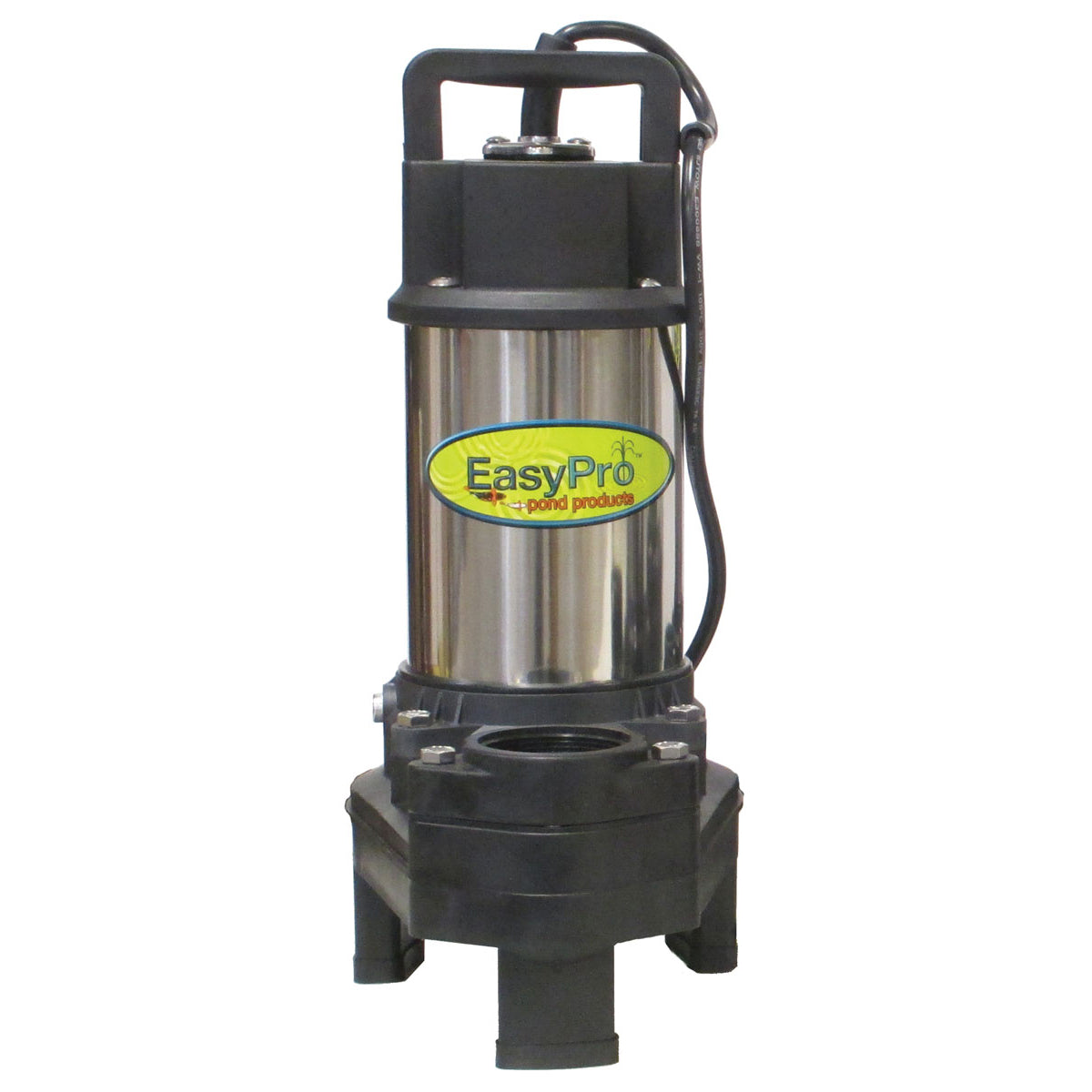

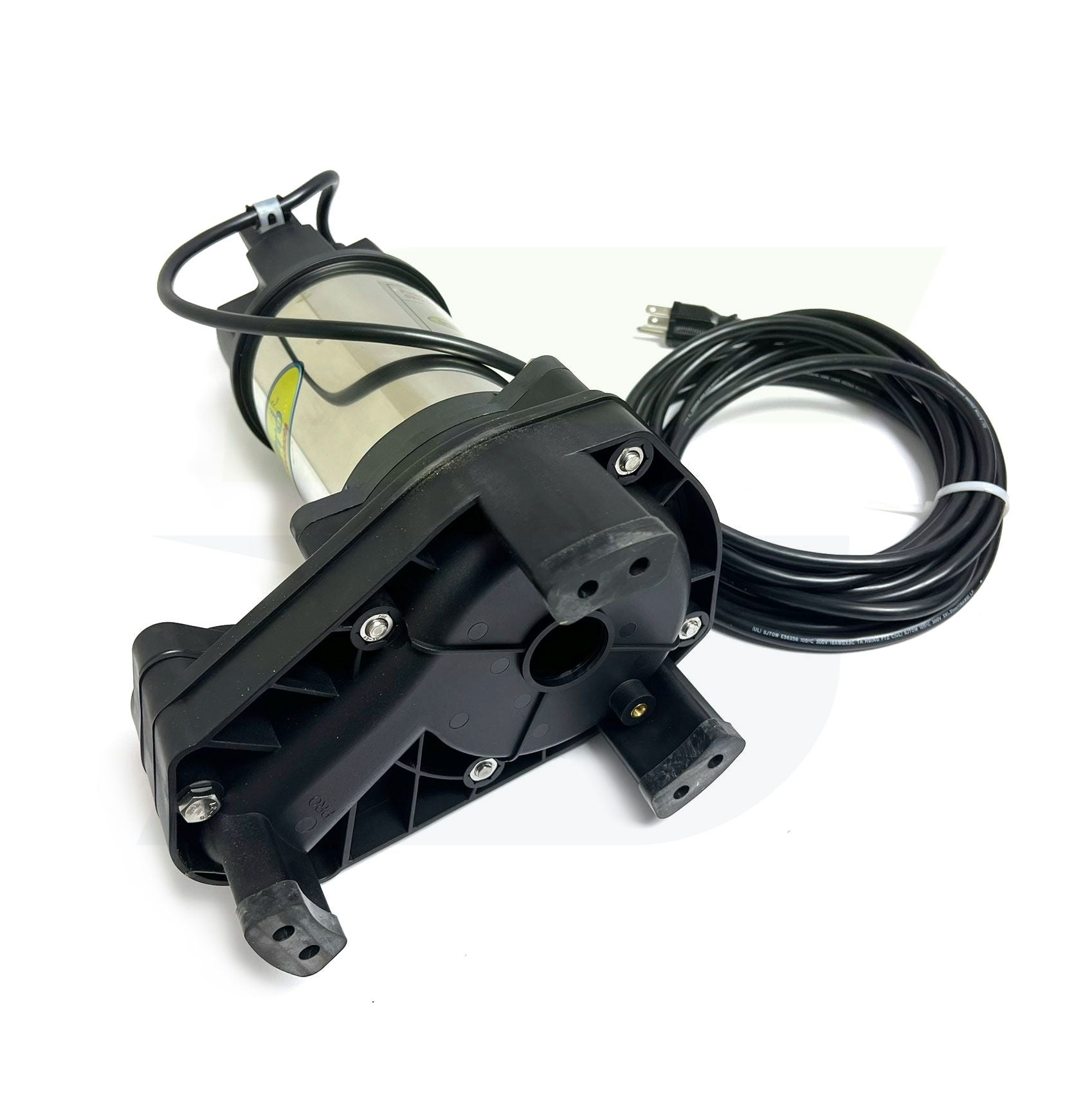

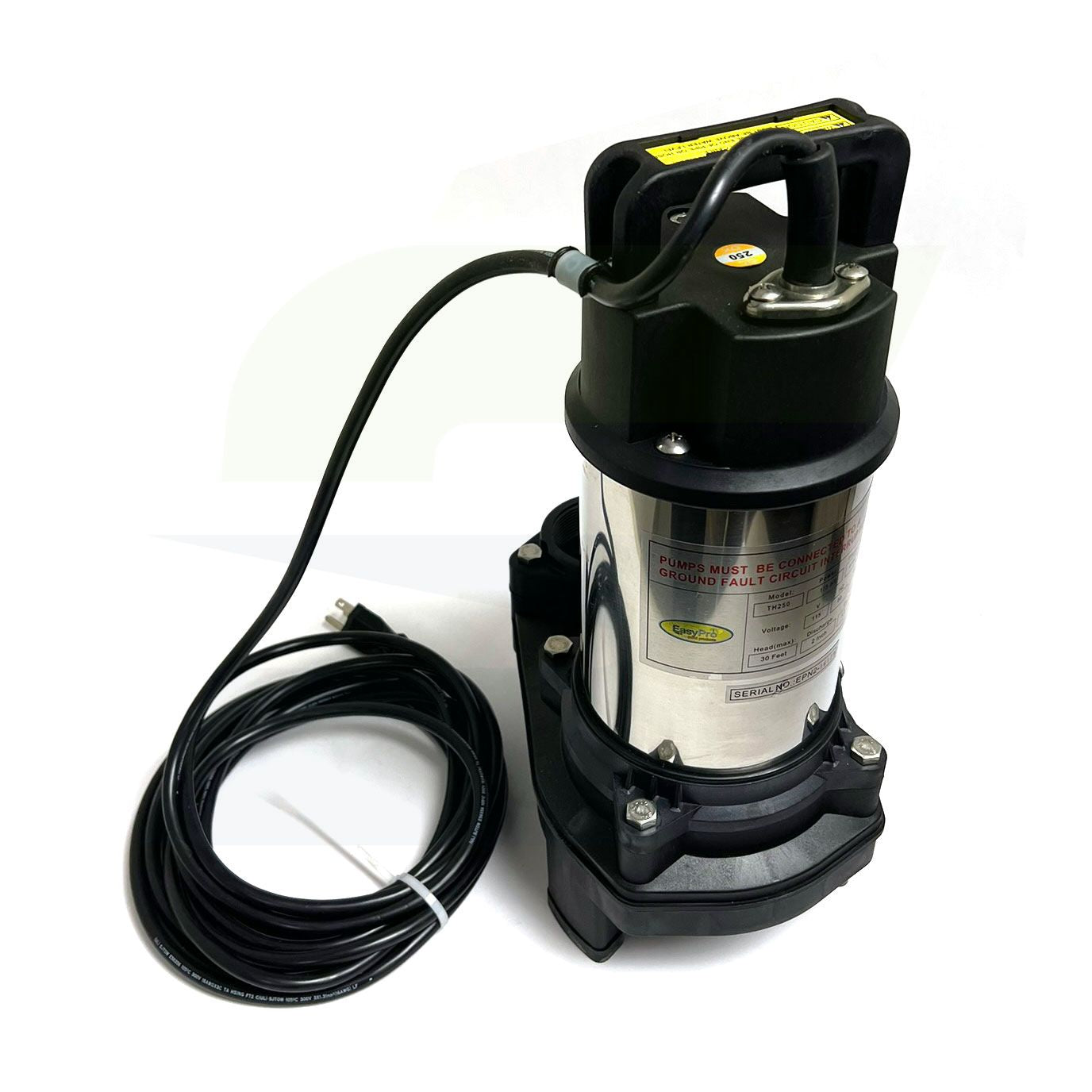

EasyPro TH250 - 4100 GPH Stainless Steel Waterfall and Stream Pump,  115v

Great pumps for water falls and streams! The TH Series- of pumps have proven to be a great choice for ponds, waterfalls, fountains and similar applications. Thousands of these pumps are in use throughout North America in a wide variety of continuous duty applications. Compact design is ideal for use in skimmers! One of the industry’s best selling pumps!

Features

• Rugged motor – designed for long life, continuous duty operation; motor housing is corrosion-resistant stainless steel
• Low maintenance – pump casing is made from abrasion-resistant, fiber reinforced plastic for maximum life
• Vortex design prevents clogging
• Built-in overload and overheat motor protection

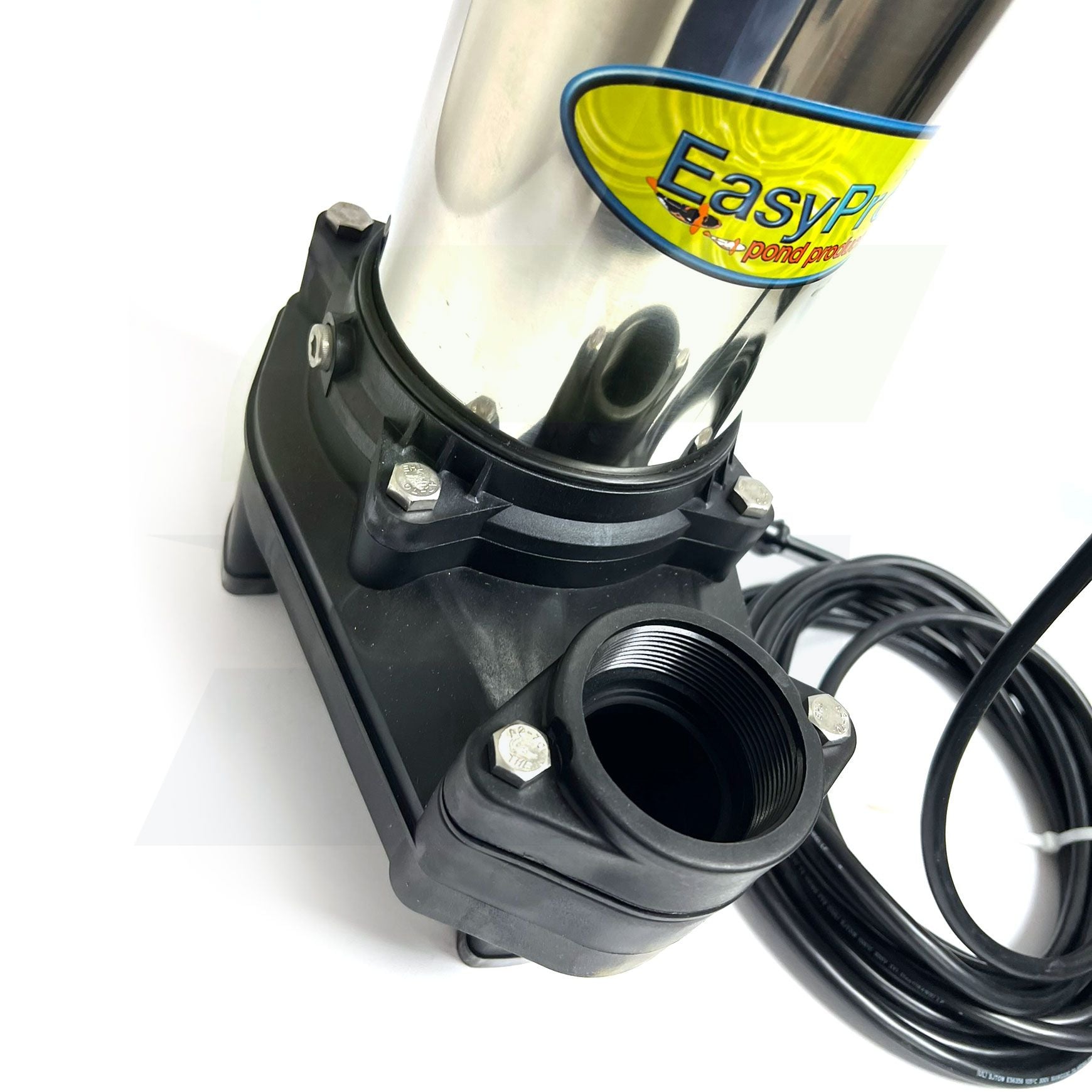

• 2″ female threaded outlet

Specifications

• Max Flow Rate: 4100 GPH
• Power Cord Length: 20'
• Horsepower: 1/3hp
• Voltage: 115v
• Amps: 3.0 - 4.2
• Maximum Head: 30'
• Outlet: 2"
• Weight: 22 lbs
• In Max Flow Rate: 21-30 ft
• In Max Head: 21-30 ft
• In Horsepower: <1 HP
