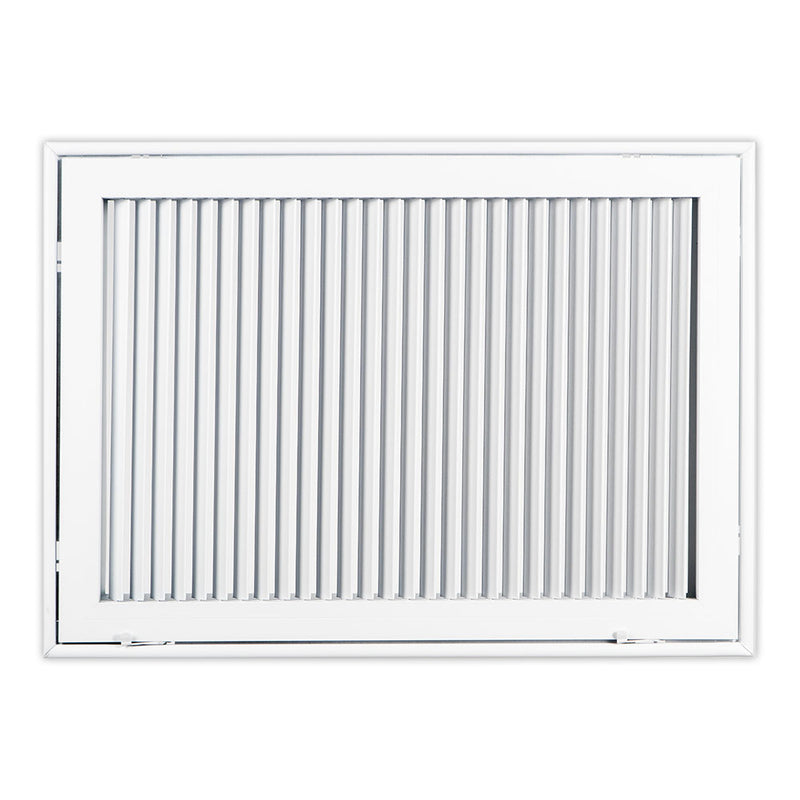

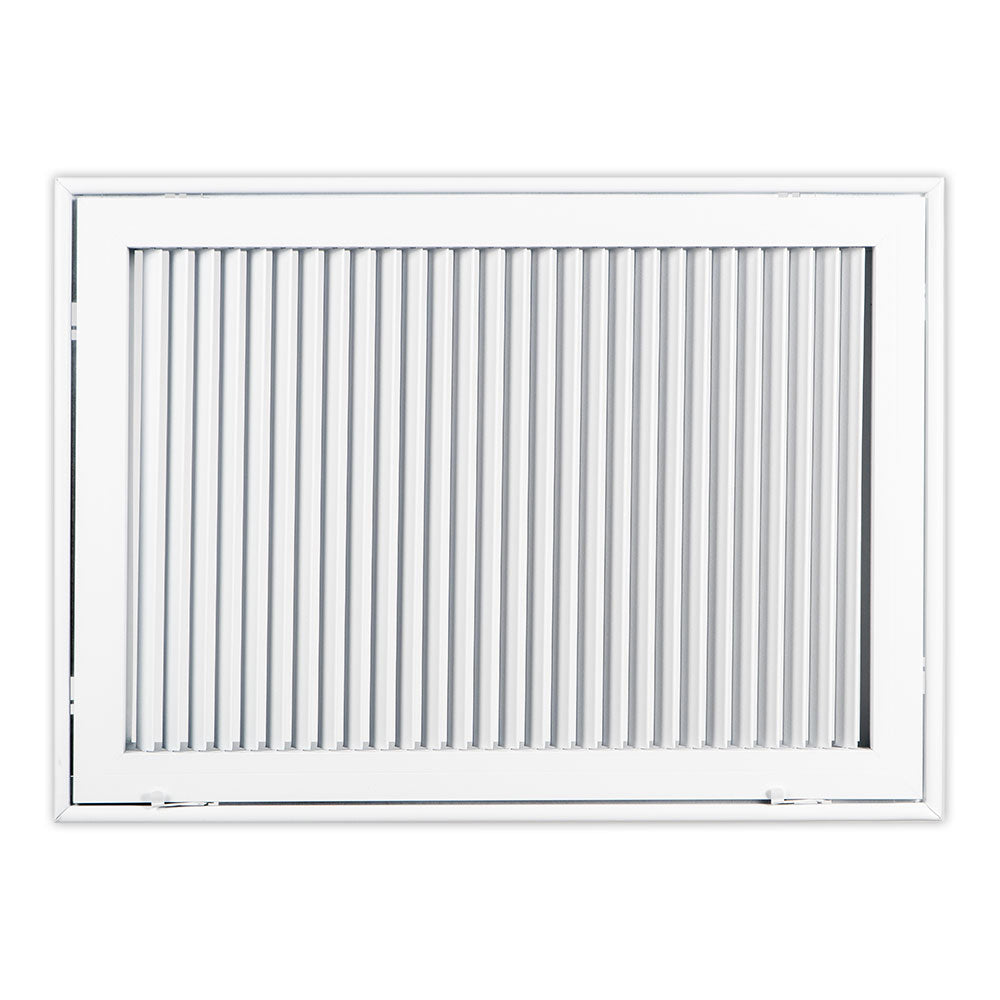

Shoemaker 936FG - 24" x 12" Fixed 45 Degree Steel Blade Filter Grille
Shoemaker 936FG - 24" x 12" Fixed 45 Degree Steel Blade Filter Grille
No reviews
In stock
Regular price
$85.08
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Submittal SheetShoemaker 936FG1-24X12 - 24" x 12" Fixed 45 Degree Steel Blade Filter Grille
Features
- Roll formed steel blades fixed at 45 degrees, parallel to shortest dimension

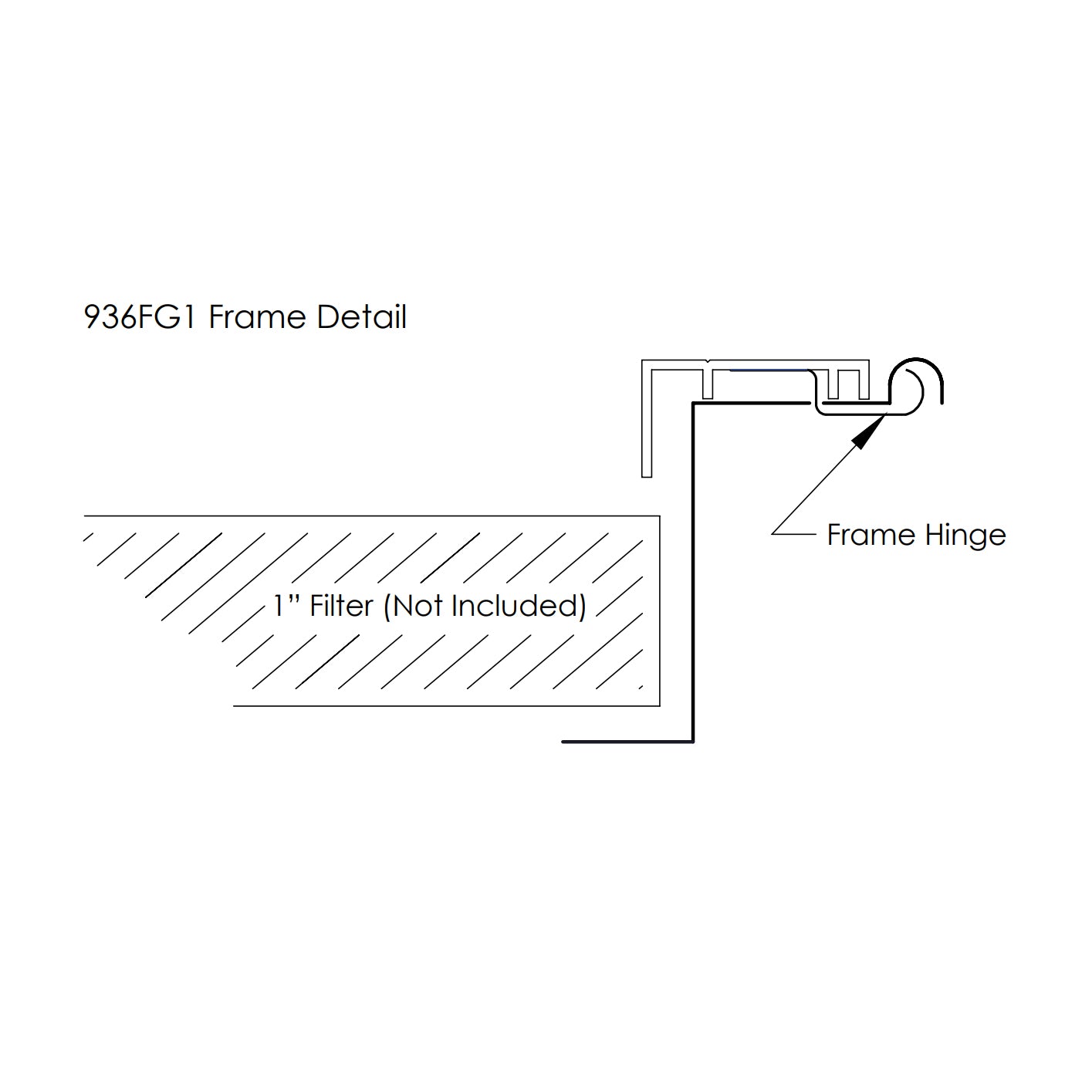

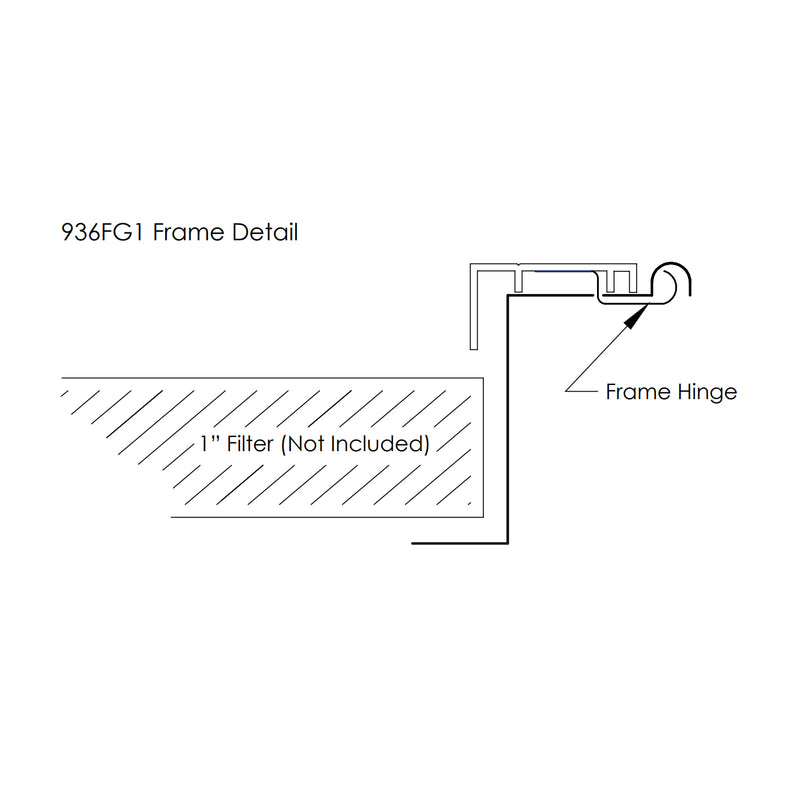

- Hinged removable extruded aluminum face frame with signature line marks
- Hinges parallel to longest side
- Face set in an outer filter grille frame
- Hand operated lever for easy filter access
- 4-way reversible door on square sizes
- 2-way reversible door on rectangular sizes
- Concealed mounting holes with mounting screws
- Holds up to a 1" filter (not included) with filter retention tabs (MODEL: 935FG1)
- Rust resistant pre-coat with durable powder finish
- Soft White
Specifications
- Duct Dimensions: 24" x 12"

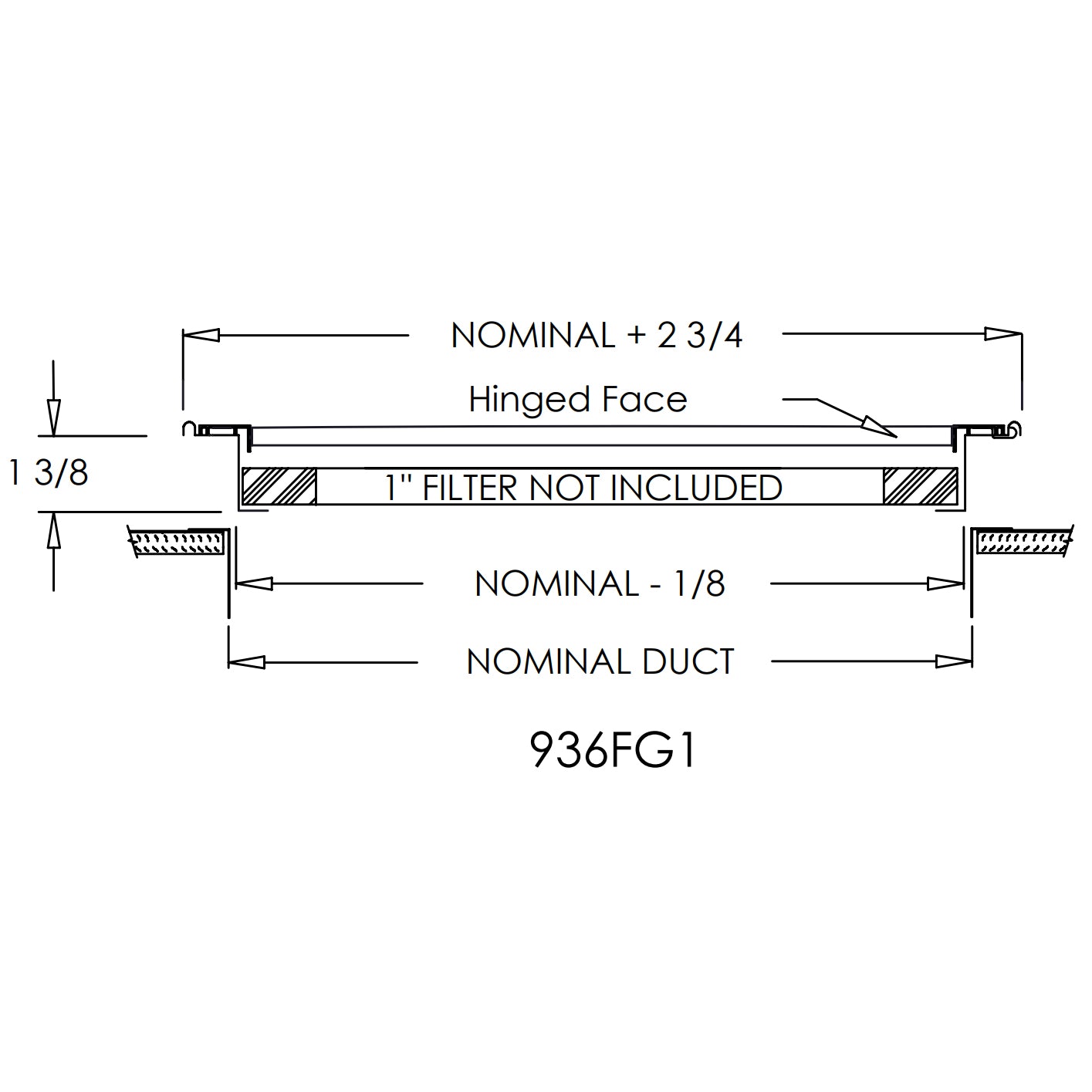

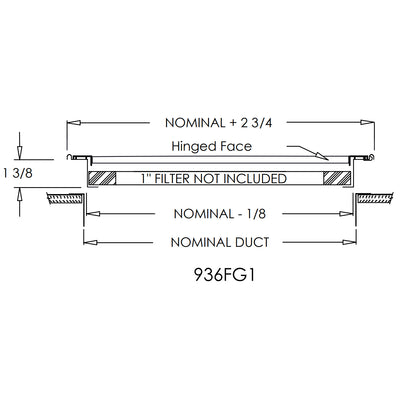

- Overall Dimensions: 26-3/4" x 14-3/4"
- Finish: Soft White
- Filter Capacity: 1" (filter not included)
