Submittal Sheet

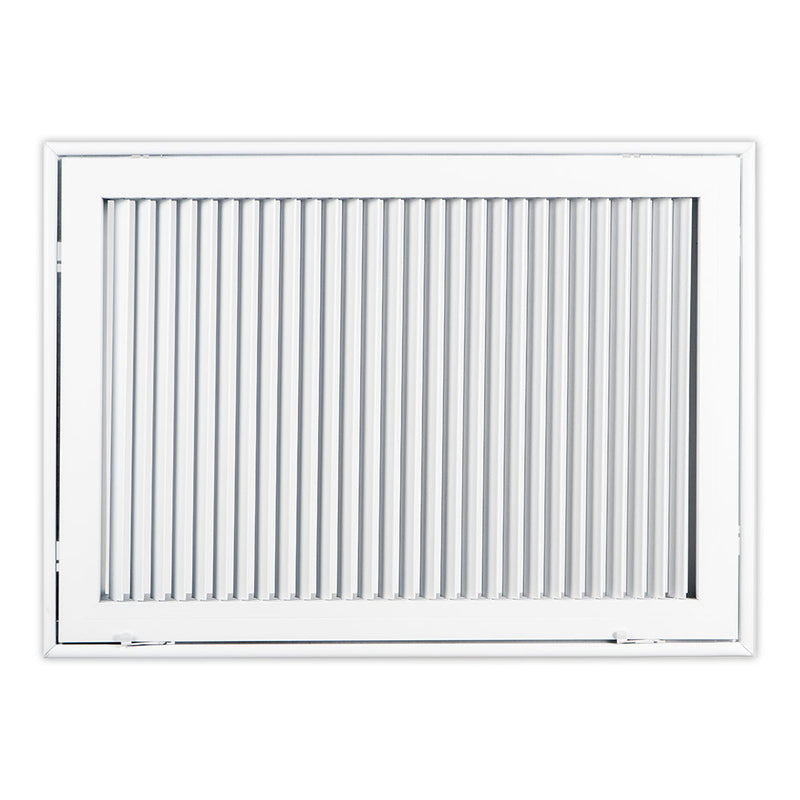

Shoemaker 936FG1-30X20 - 45 Degree Fixed Steel Blade 1" Filter Grille - Blades Parallel to Shorter Dimension

Filter grilles are manufactured 3/16" undersized nominal duct (outside dimension) for ease of installation. Air filter should be 1/4" to 1/2" undersized. Verify with air filter manufacturer for air specification to ensure a proper fit.

Features

• Roll formed steel blades fixed at 45 degree parallel to shortest dimension

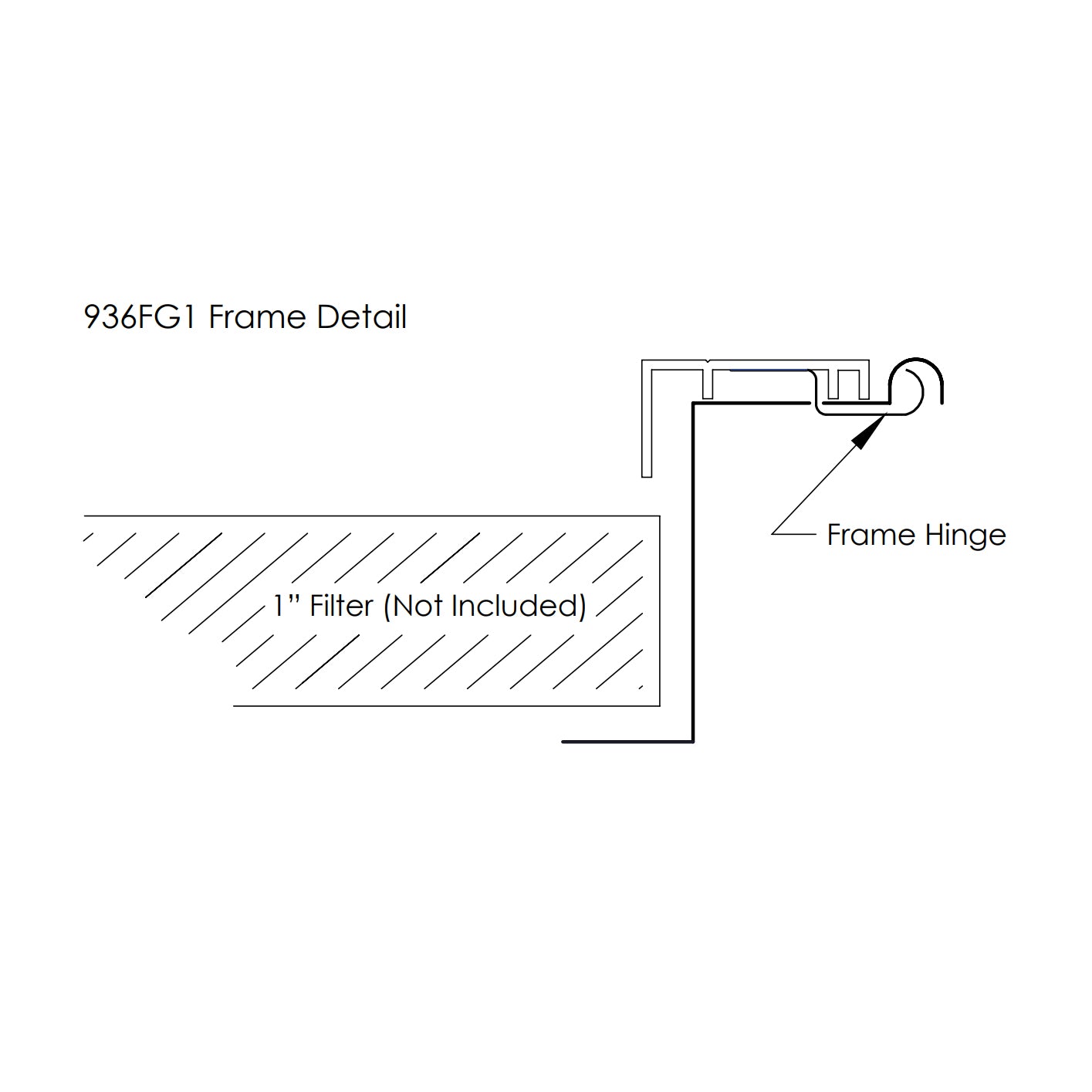

• Hinged removable extruded aluminum face frame with signature line marks
• Hinges parallel to longest side
• Face set in an outer filter grille frame
• Hand operated lever for easy filter access
• 4-way reversible door on square sizes
• 2-way reversible door on rectangular sizes
• Concealed mounting holes with mounting screws
• Holds up to a 1" filter (not included) with filter retention tabs (936FG1)
• Rust resistant pre-coat with durable powder finish

Specifications:

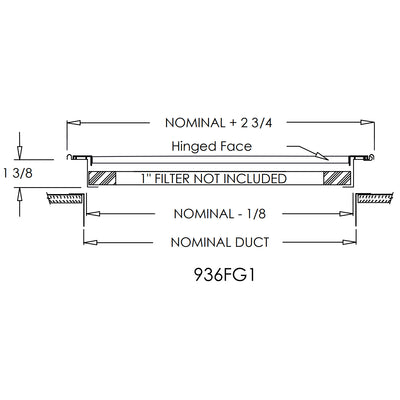

• Nominal Duct Size: 30" x 20"
• Overall Grille Size: 32-3/4" x 22-3/4"
• Finish: Soft White
• Filter Capacity: 1" (filter not included)
