Biomass Products Catalog

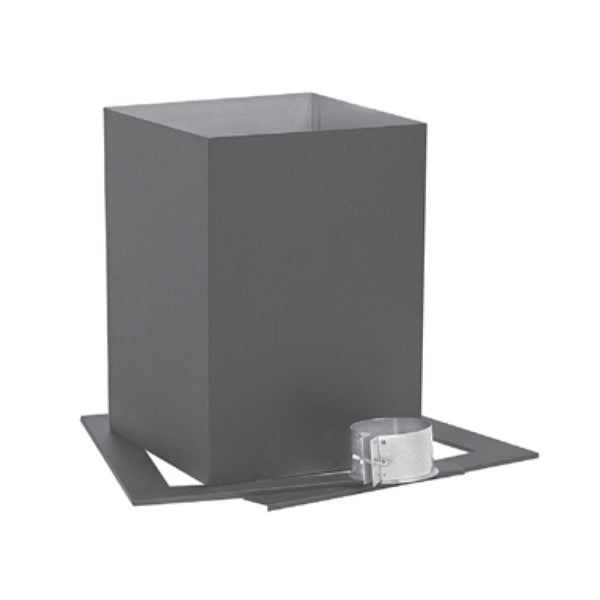

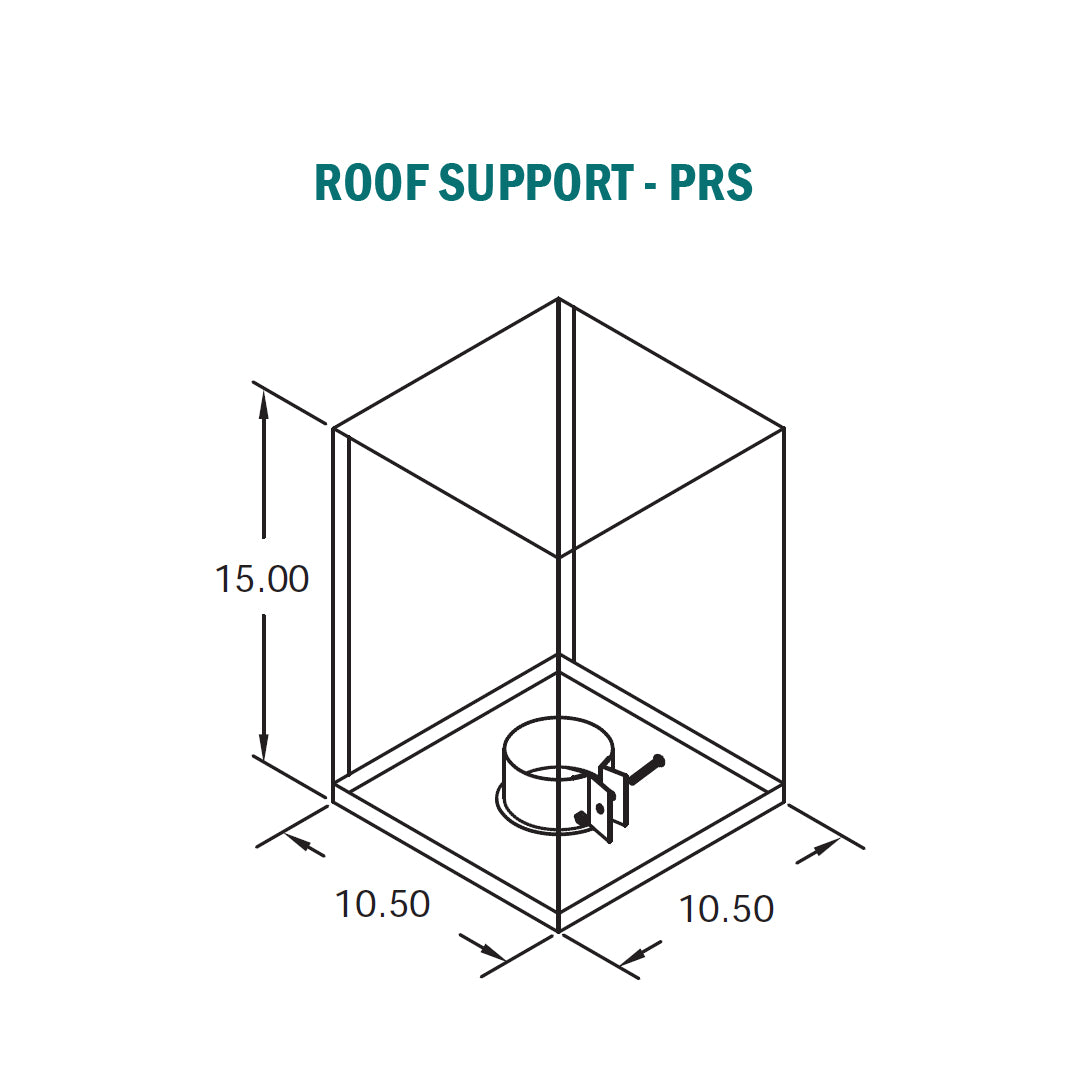

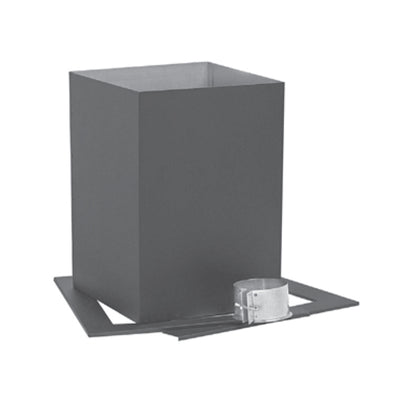

Metal-Fab 4PRS - Biomass / Pellet Roof Support - 4"

For use on open beamed pitched roofs or ceilings. Includes trim pieces for finishing out installation. Also includes support band. Available in 3" and 4" diameters. For use with biomass fuels such as pellet, corn, wheat or other grassy and woody plants as specified by appliance manufacturers.

Features

• Type L Biomass Chimney
• Stainless liner
• Galvanized casing
• 3" Clearance to combustibles
• Tested and Listed to UL 641.
• Pipe and fittings available in 3" and 4" diameters
• Factory-built double wall construction, using 430 stainless steel flue and galvanized steel outer casing.
• Positive twist lock for easy assembly and disassembly without tools and without damage.
• Rope gaskets at each joint to prevent fly ash leakage.
• Note: Pipe overlaps 1-1/2" when joined together. Assembled length is 1-1/2" less than listed length.
