Home » Rheem » Condenser Fan Motors » 51-42534-16 - 3/4 HP Condenser Motor - 1 Phase - 1 Speed - 1075 RPM - 230V
Rheem

51-42534-16 - 3/4 HP Condenser Motor - 1 Phase - 1 Speed - 1075 RPM - 230V

In stock
SKU: 51-42534-16
$337.86

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

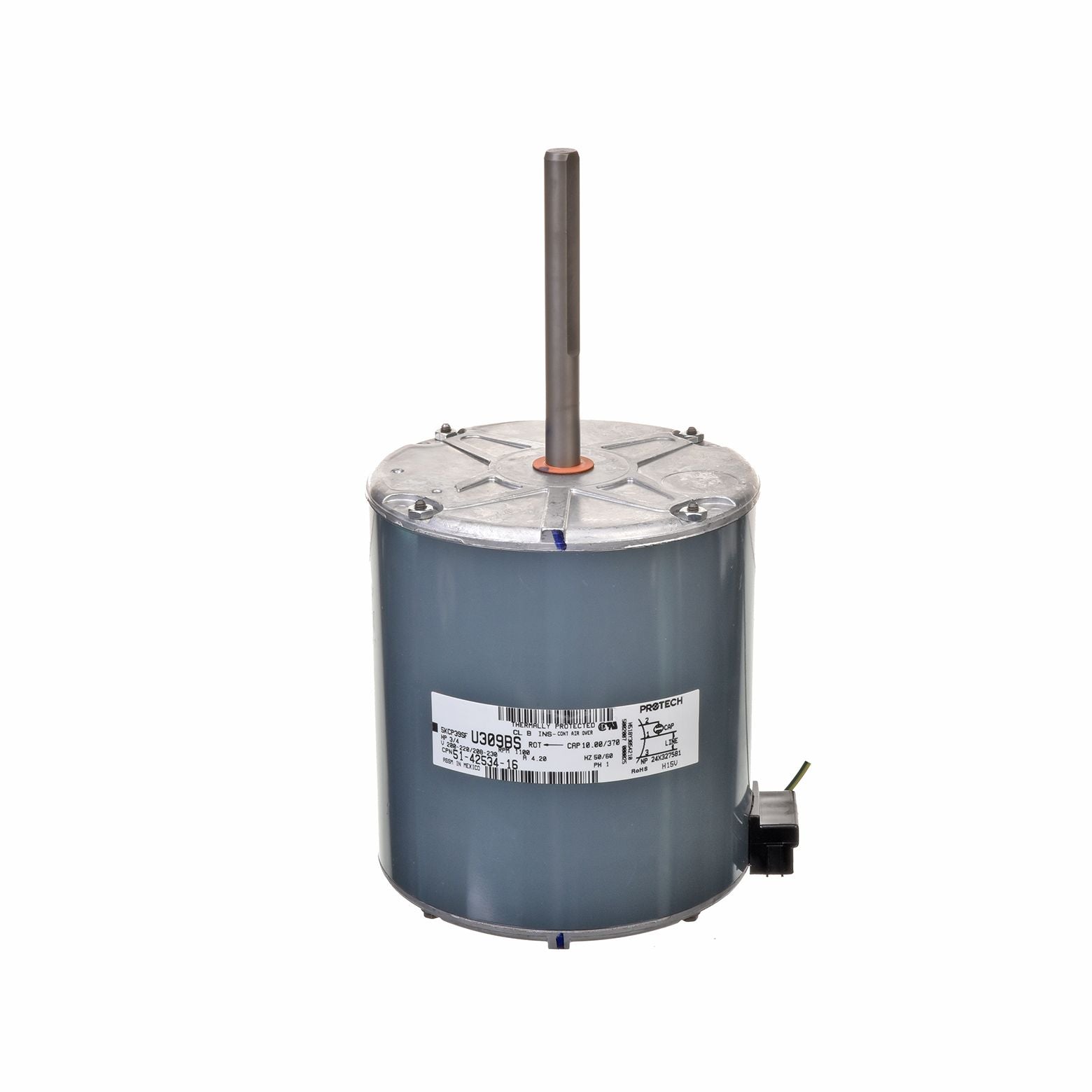

Rheem 51-42534-16 - 3/4 HP Condenser Motor - 1 Phase - 1 Speed - 1075 RPM - 230V

Technical Data

  • HP: 3/4
  • No. of Speeds: 1
  • High Speed (RPM): 1075
  • Input Voltage (V): 208
  • Input Voltage (V): 220
  • Input Voltage (V): 230
  • No. of Phases: 1
  • Frequency (Hz): 50
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CCW
  • Run Capacitor (uF/V): 10/370
  • FLA at 208V (A): 4.20
  • LRA at 208V (A): 9.60
  • FLA at 220V (A): 4.20
  • LRA at 220V (A): 9.60
  • FLA at 230V (A): 4.20
  • LRA at 230V (A): 9.60
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-39/64
  • Keyed/Flat Shaft Length (in.): 2-3/4
  • Overall Shaft Length (in.): 4-27/64
  • Motor Body Length (in.): 6-1/4
  • Overall Motor Length (in.): 10-23/32
  • Mounting: Shell-band
  • Frame Size: 48
  • Bearing Type: Ball
  • Application: Condenser
  • Drive Type: Direct Drive

Where Used

  • RKKB
  • RLKB
  • SLKB





HUZ2013170
