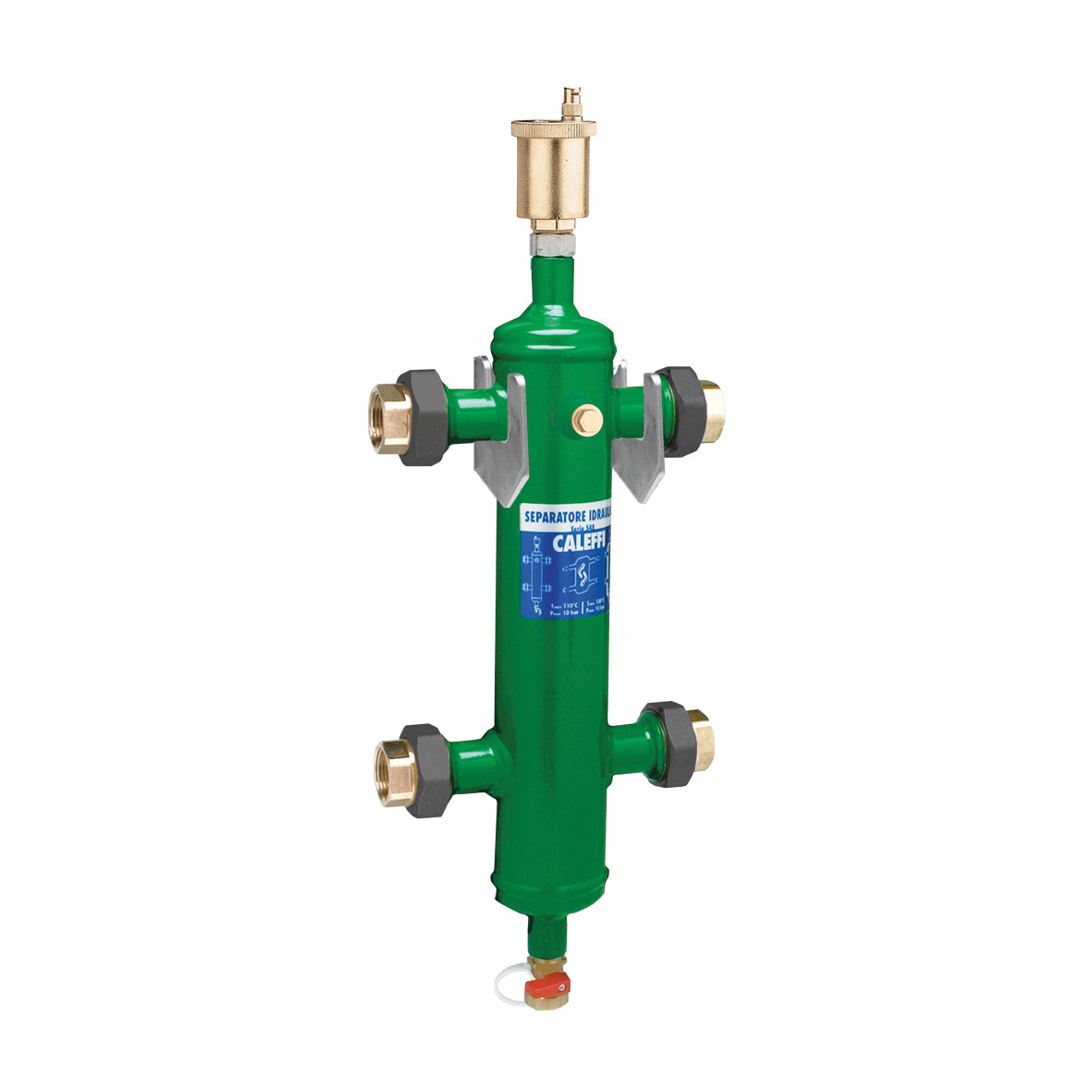

Caleffi 548098A - Hydroseparator with Mounting Bracket - 1-1/2" Sweat

The hydraulic separator is a device which makes the primary and secondary circuits connected to it independent, and can be used on hot and chilled water systems. The separator is supplied with an air vent and check valve assembly to provide automatic discharge of the air in the circuits, and a drain valve for removing impurities that collect at the bottom of the unit. These items are designed for use in closed hydronic systems. Do not use in plumbing applications. These items do not meet the low-lead plumbing standards of U.S. and Canada.

Features

• Body: Epoxy resin painted steel
• Internal Baffle: 300 series stainless steel
• Air Vent Body: Brass
• Shut Off and Drain Valve Body: Brass
• Union Nuts: Cast Iron
• Support Bracket: Polyester painted carbon steel
• Suitable Fluids: Water and non-hazardous glycol solution up to 50%
• Max Operating Pressure: 150 psi (10 bar)
• Working Temperature Range: 32–250 degrees F (0–120 degrees C)
• Working Temperature Range with Insulation: 32–210 degrees F (0–100 degrees C)
