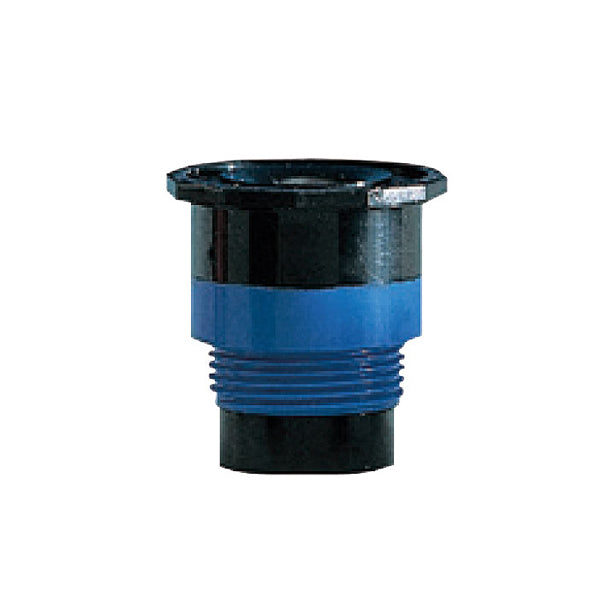

TORO 89-1446 - 10-H MPR Plus Spray Nozzle 180 Degree, 10 Foot

Toro MPR Plus nozzles make system design and installation easier than ever. Simply select the needed radius and arc–the nozzle does everything else.

• Built-in Pressure Compensating Device eliminates fogging and misting while saving water
• Matched precipitation rate (MPR) ensures even water distribution — any pattern, any radius
• Easily installs onto any Toro spray or shrub sprinkler
• 10' spray radius, half circle pattern
• Flow 0.85 GPM at 30-40 PSI
• Nozzle Trajectory 17 degree
• Optim. Operating Pressure 30-40 PSI
• Recommended Operating Pressure 20-70 PSI
• Radius 10'
• Pattern 180-degrees (Half Circle)
• Thread - Male

IEZB101060
