Toro MPR Plus Brochure

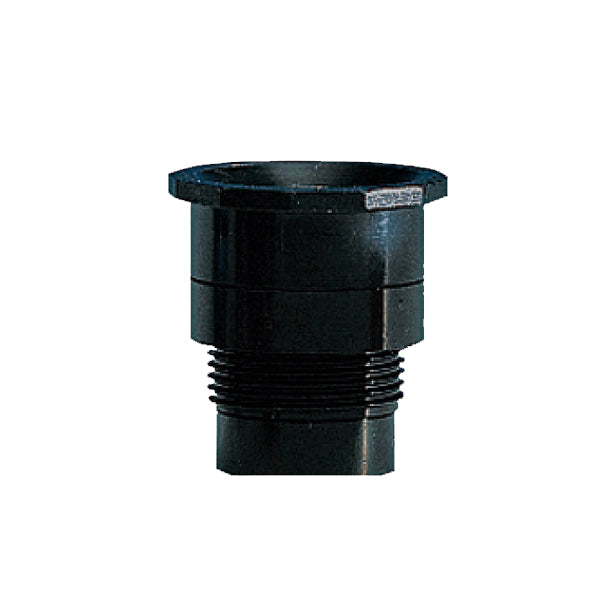

TORO 89-1434 - 12-Q MPR Plus Spray Nozzle 90°, 12 foot

Toro MPR Plus nozzles make system design and installation easier than ever. Simply select the needed radius and arc–the nozzle does everything else.

• Built-in Pressure Compensating Device eliminates fogging and misting, saving water
• Matched precipitation rate (MPR) ensures even water distribution — any pattern, any radius
• Easily installs onto any Toro spray or shrub sprinkler
• 15' spray radius, quarter circle pattern
• Flow 0.75 GPM @ 30-40 PSI
• Nozzle Trajectory 27 degree
• Optim. Operating Pressure 30-40 PSI
• Recommended Operating Pressure 20-70 PSI
• Radius 15'
• Pattern 90-degrees (Quarter Circle)
• Thread - Male
