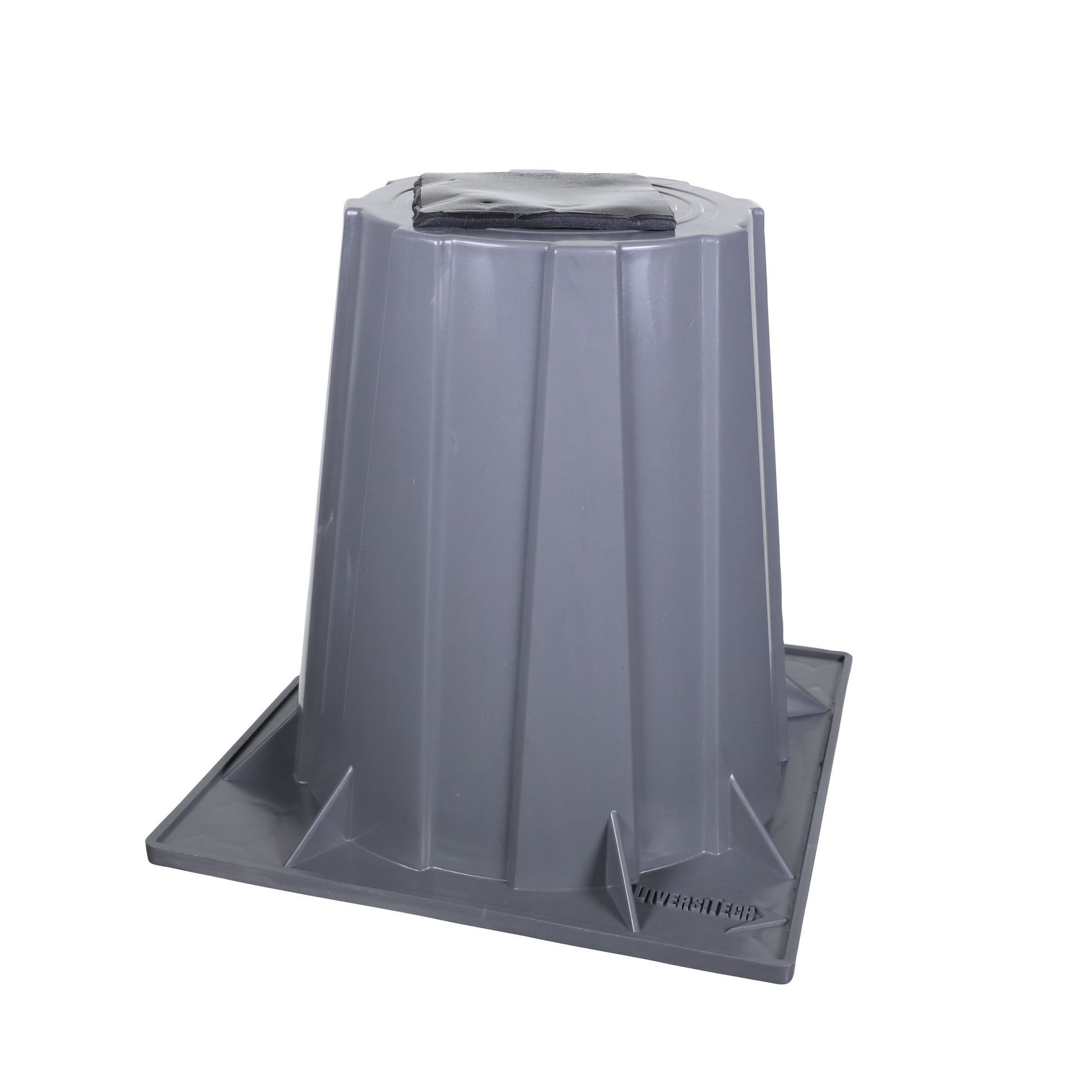

DiversiTech HPR-6 - One Piece 6" Heat Pump Riser

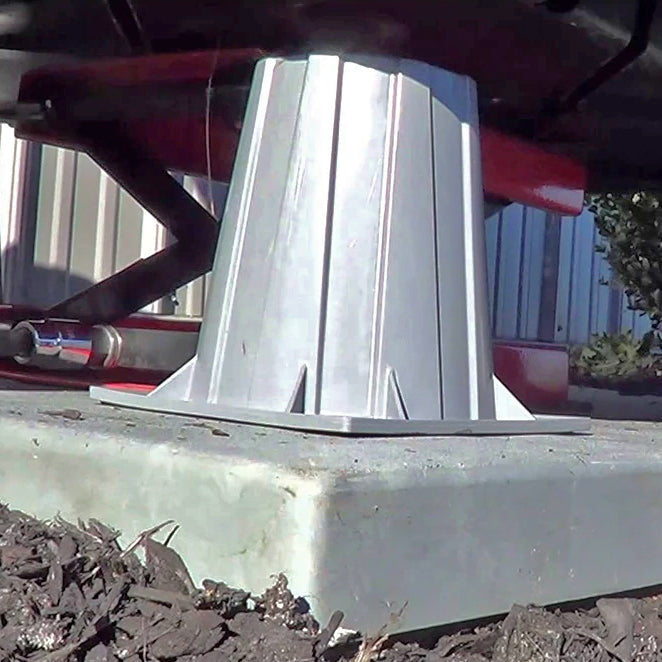

The DiversiTech HPR-6 is a one piece 6 in. gray heat pump riser that provides 6 in. of elevation for condensers, heat pumps, and air handlers. Heat pump risers are most commonly used to lift heat pumps above the snow line. This helps prevent damage to the coils caused by ice build up from drainage of condensate when operating in heat pump mode. Heat pump risers are available in 1 or 2 piece designs, multiple sizes and colors.
Features
- Size: 6"
- Color: Medium Gray
- Product: Heat Pump Riser
- Application: Heat pumps and air handlers
- Usage: Indoor or outdoor
- Purpose: Heat Pump Risers provide a sturdy and stable solution for adding elevation to a heat pump or air handler.
- Composition: High-pressure injection molded polypropylene – medium gray or black color. Butyl mastic on the top and bottom guarantees no slipping.
- Advantages: The one-piece or two-piece, heavy duty plastic unit is manufactured in three heights - 3”, 6” and 12” with an optional 4” extension. Thick wall sections and generous reinforcement are employed in the most effective areas, yielding a strong yet lightweight structure. The nestable design allows maximum shipping and storage density.
- A HPR-3 or HPR-6 Heat Pump Riser can handle a uniform load of 2000 pounds with no failure.
- A HPR-3 or HPR-6 Heat Pump Riser can handle a point load, applied to one square inch area in center of footpad recess on top of single HPR, of less than 560 pounds with no failure.
- Simply peel the release liner from the mastic before placing the Heat Pump Riser and equipment.
