Haws 6423 - Hydration by Haws Replacement Filter

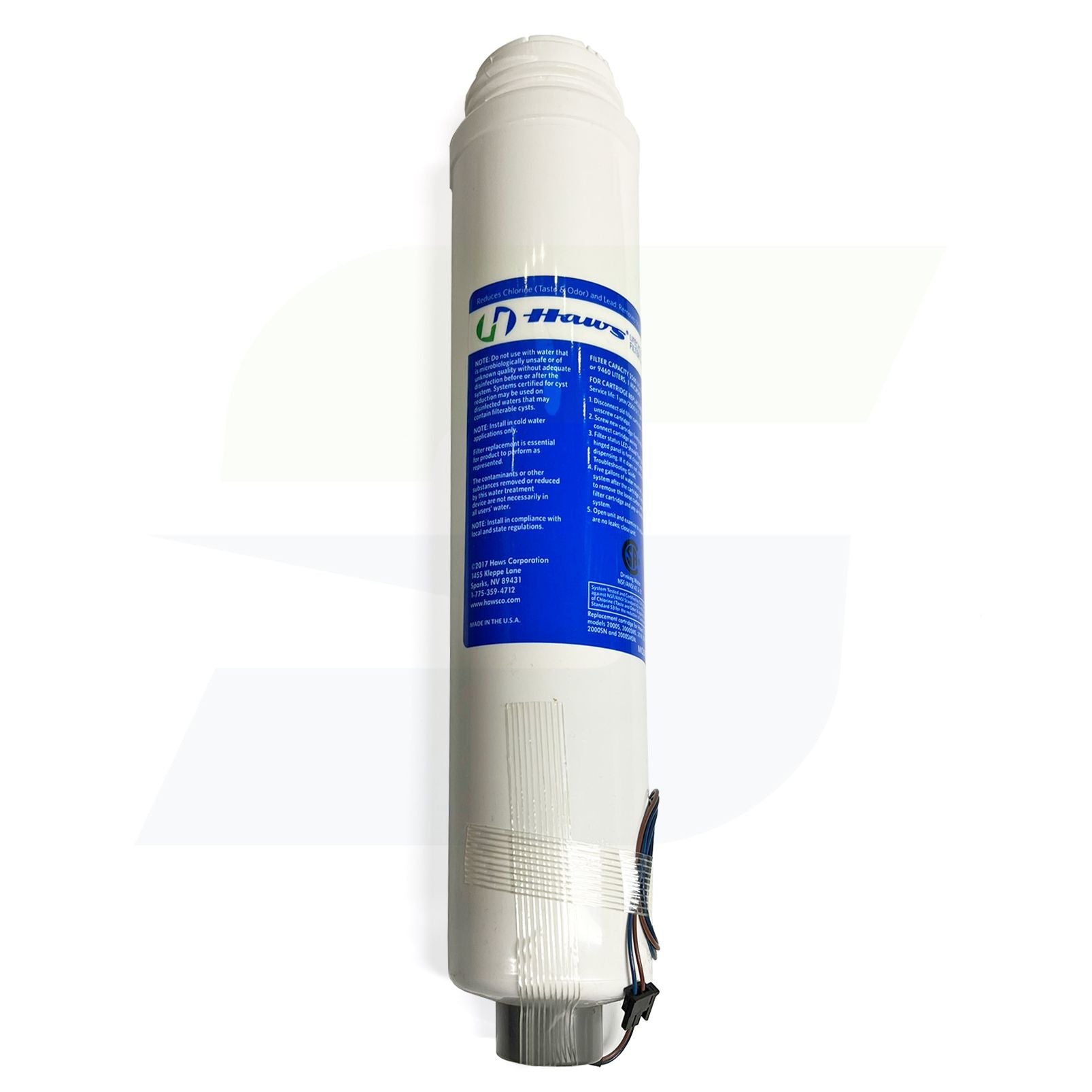

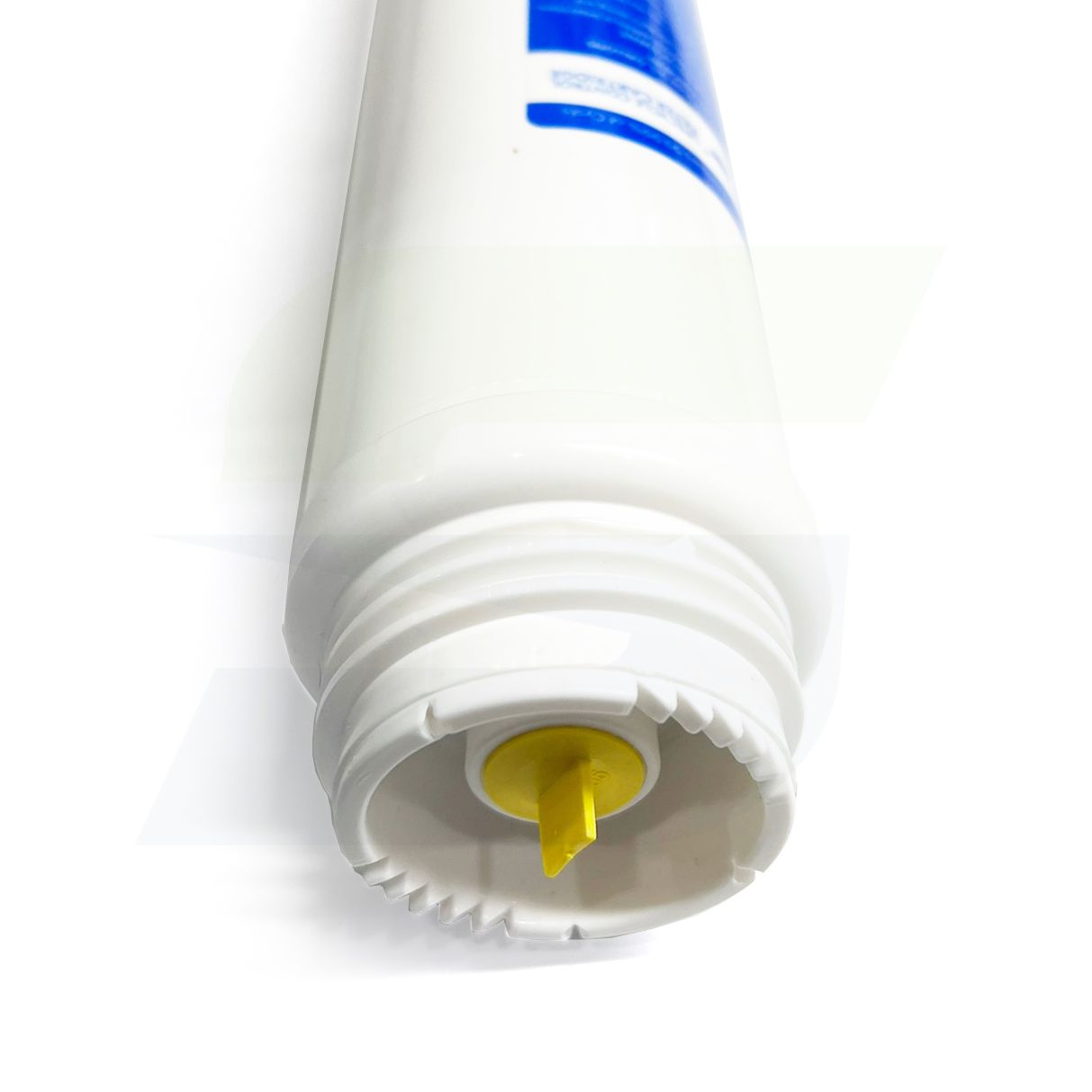

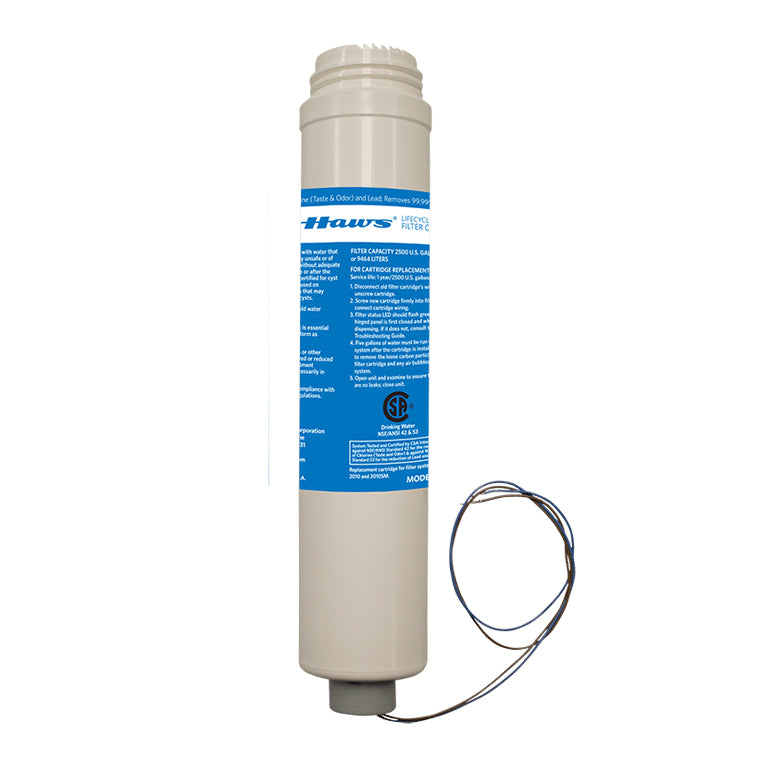

Model 6423 replacement filter is used with the Hydration By Haws™ bottle filling stations. It is a carbon block filter cartridge with a service life of 1 year/2,500-gallons (9463 L). Filter contains an onboard chip to store total gallon usage; this chip interfaces with an Electronic Lifecycle Control system to allow water flow only until the filter reaches its total gallon capacity. Tested and certified by CSA against NSF/ANSI Standard 42 for the reduction of chlorine (taste and odor) and against NSF/ANSI Standard 53 for the reduction of lead and 99.99% of cysts.

Replacement Instructions

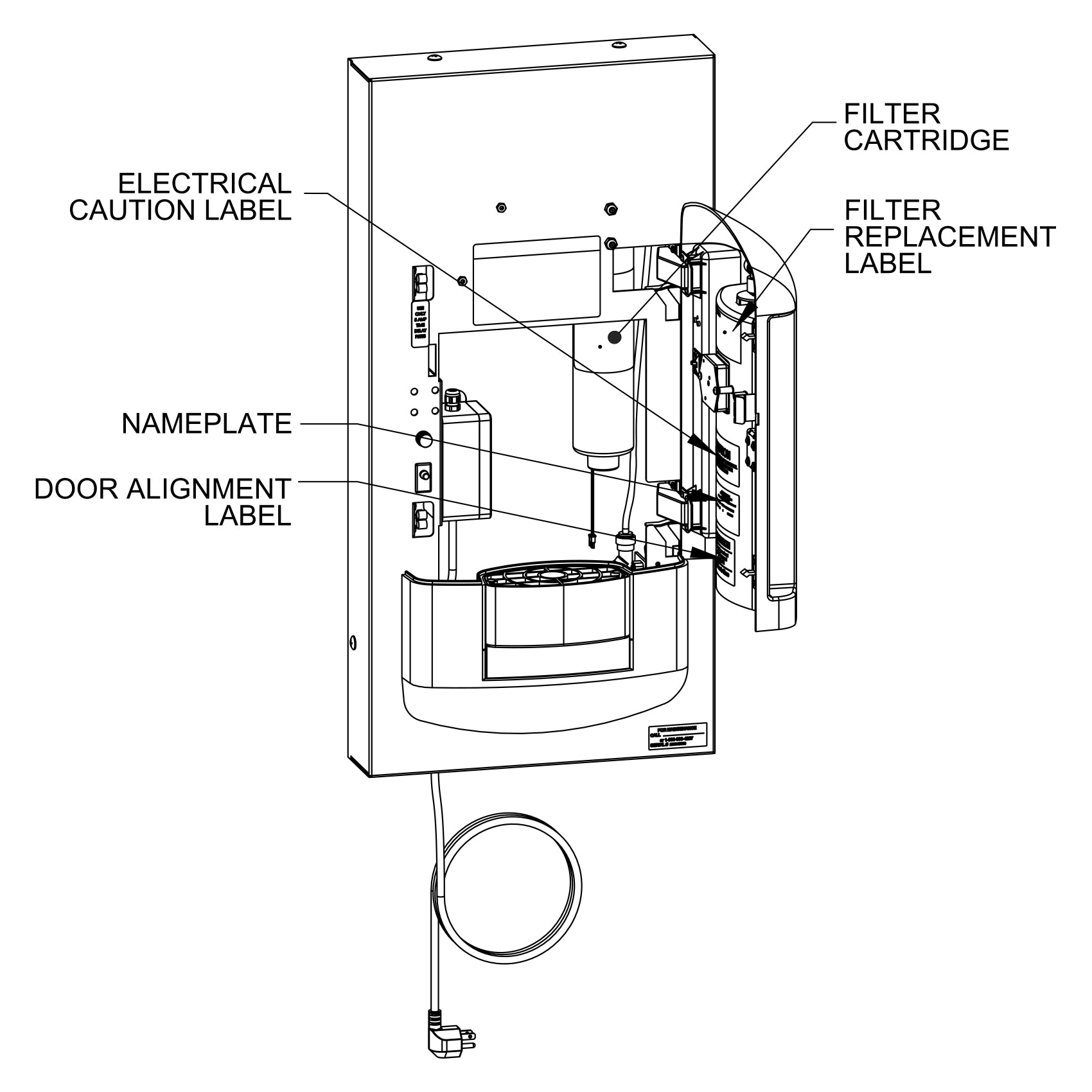

1. Disconnect old filter cartridge’s wiring and unscrew cartridge.
2. Screw new cartridge firmly into filter head; connect cartridge wiring.
3. Filter status LED should flash green both after hinged panel is first closed and when water is dispensing. If it does not, consult the Troubleshooting Guide.
4. Five gallons of water must be run through the system after the cartridge is installed in order to remove the loose carbon particles from the filter cartridge and any air bubbles from the system.
5. Open unit and examine to assure that there are no leaks; close unit.
