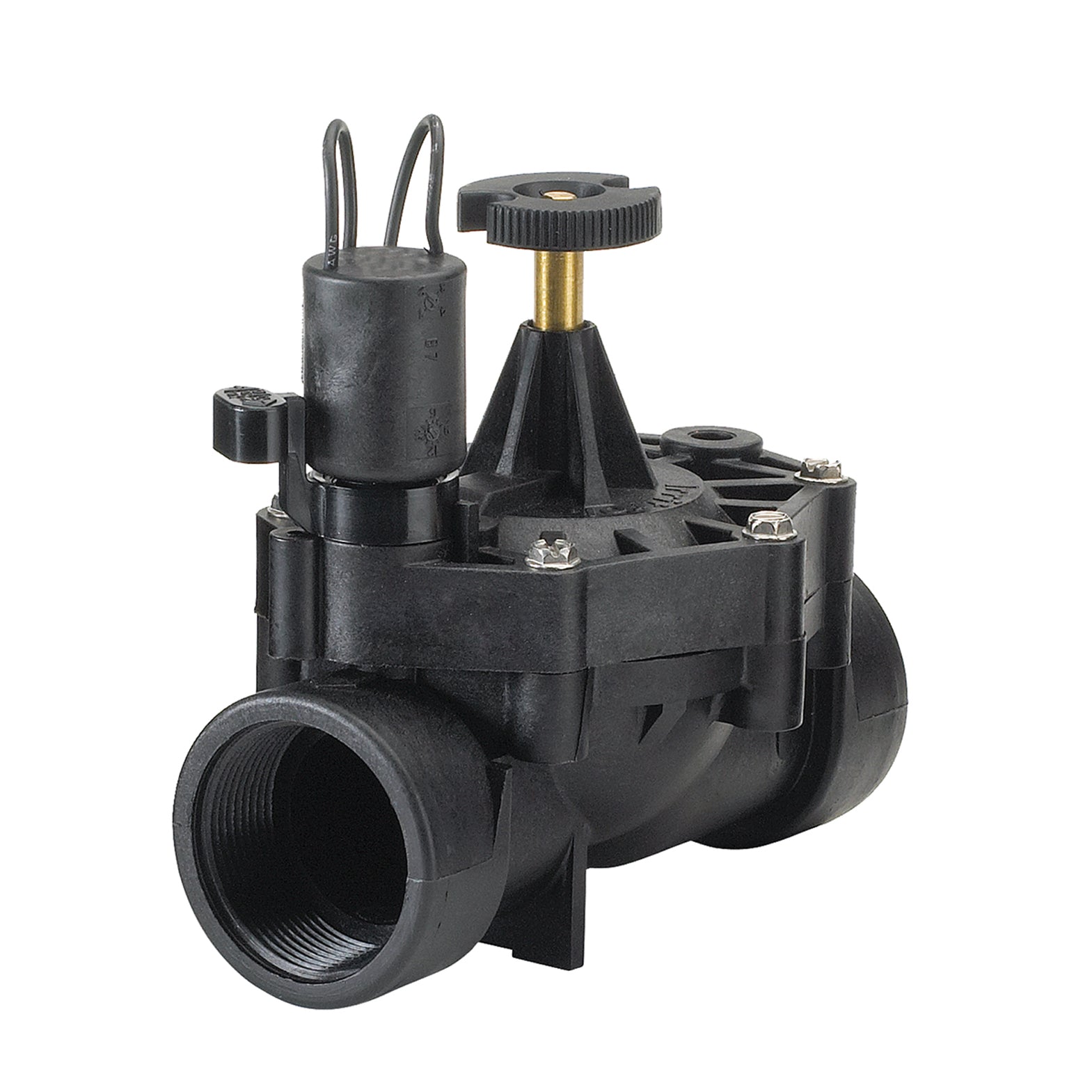

Irritrol 700-1.5 - 1-1/2" Ultraflow Electric Irrigation Valve - Flow Control - 700 Series
Featuring a straight-through flow path that dramatically reduces pressure loss, the Irritrol UltraFlow Series of glass-filled nylon valves leads the industry in long-term performance and reliability. With a flow range from .1 to 180 GPM and a self-cleaning, 150-mesh stainless steel filter screen, these unique valves are ideal for a multitude of potable and dirty water applications. A glass-reinforced nylon body and bonnet, stainless steel spring and hardware, and a rugged, nylon-reinforced Buna-N diaphragm add an extra dimension of toughness to this very durable family of valves.
Features
- Internal and external bleed (flush mode)
- Wide flow range
- Flow control allows precise flow adjustment and manual shutoff
- Compact, low-profile design
- Rugged nylon-reinforced Buna-N diaphragm provides leak-proof seal
- EPDM seat seal
- Encapsulated injection-molded solenoid with a captive hex plunger
- Unique three-way stainless steel bonnet screws with threaded brass inserts accept Phillips, flat-blade and hex-driver tools
- Five-year warranty
Specifications
- Dimensions: 5-1/2" x 4-3/8" x 6-1/4"
- Flow range: .1-180 GPM
- Pressure range: 10-150 psi
- Solenoid: 24 V ac
- Inrush volt-amp: 24 V ac-9.6 VA
- Inrush current: .4 amp
- Holding volt-amp: 24 V ac-4.8 VA
- Holding current: .2 amp
